Installation Instructions for TruTrack End Power Feed with 1"
Rectangle Junction Box
IMPORTANT INFORMATION
- This product is for indoor locations only.
- This instructions shows a typical installation.
- Before beginning any electrical work, ensure that the
power to the electrical box is off.
SAVE THESE INSTRUCTIONS!

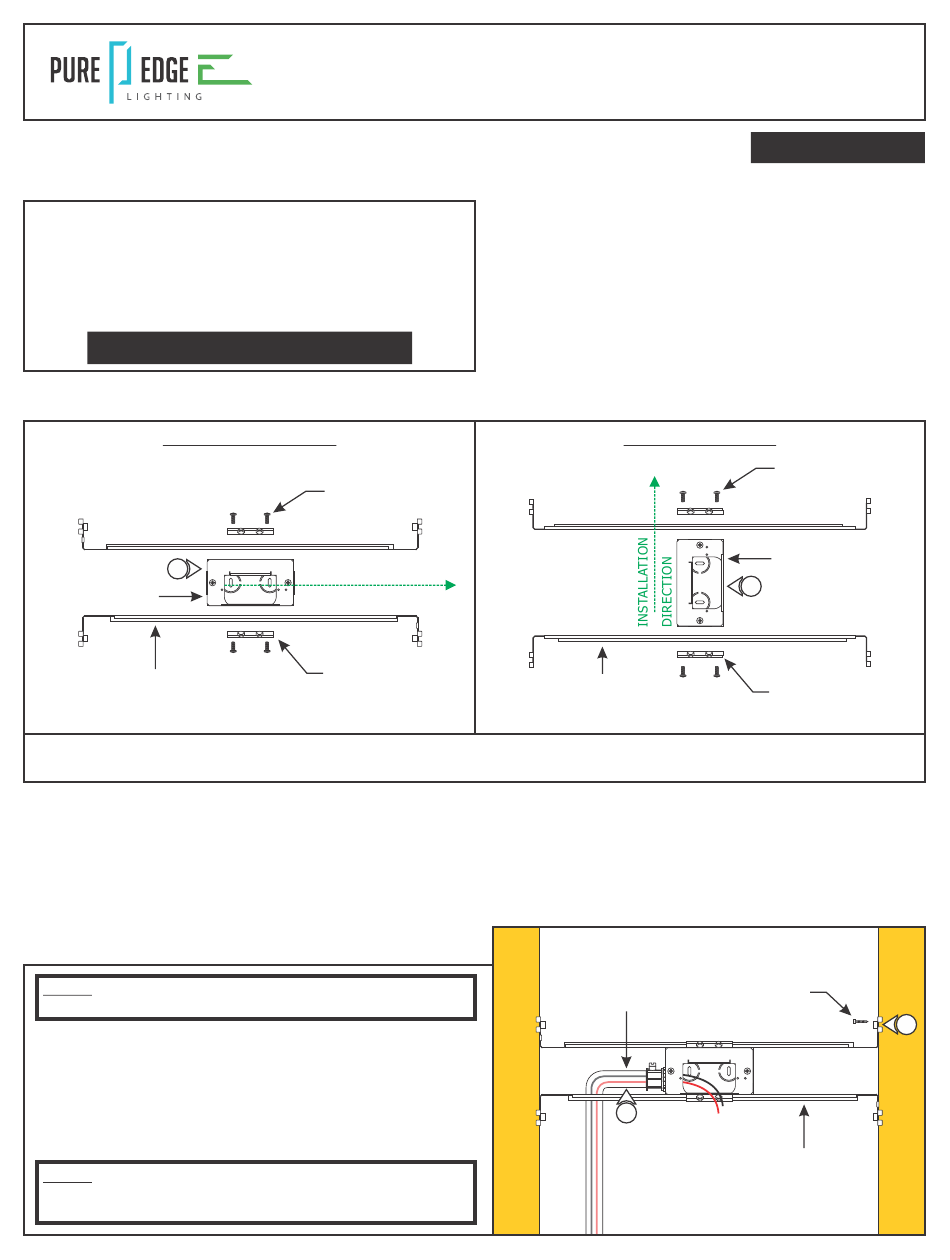

Section One: Install the Junction Box
A
HORIZONTAL ORIENTATION
1
JUNCTION BOX
ADJUSTABLE
MOUNTING BAR
1: Mount each adjustable mounting bar to one side of the junction box and secure them with the mounting brackets and
Phillips screws provided.
NOTE:
Adjustable mounting bars mount to studs that are
spaced 14.5" to 25" apart.
2: Place the adjustable mounting bar tabs against the ceiling
joists. Secure the adjustable bars to the joists with the #8
screws.
3: Install conduit (if required by local electrical code) and run
the low voltage wires coming from the remote power supply
to the junction box.
NOTE:
Only use 0-10V and Uni power supplies with this
product. See the wiring diagram provided with the power supply
instructions.
PHILLIPS SCREW
INSTALLATION
DIRECTION
MOUNTING
BRACKET
B
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
VERTICAL ORIENTATION
ADJUSTABLE
MOUNTING BAR
CONDUIT
3
Doc # 904-TR24-EP1-1RE_05
TR24-EP1-1RE-_-_-WH
PHILLIPS SCREW
JUNCTION BOX
1
MOUNTING
BRACKET
#8 SCREWS
2
ADJUSTABLE
MOUNTING BAR
1
