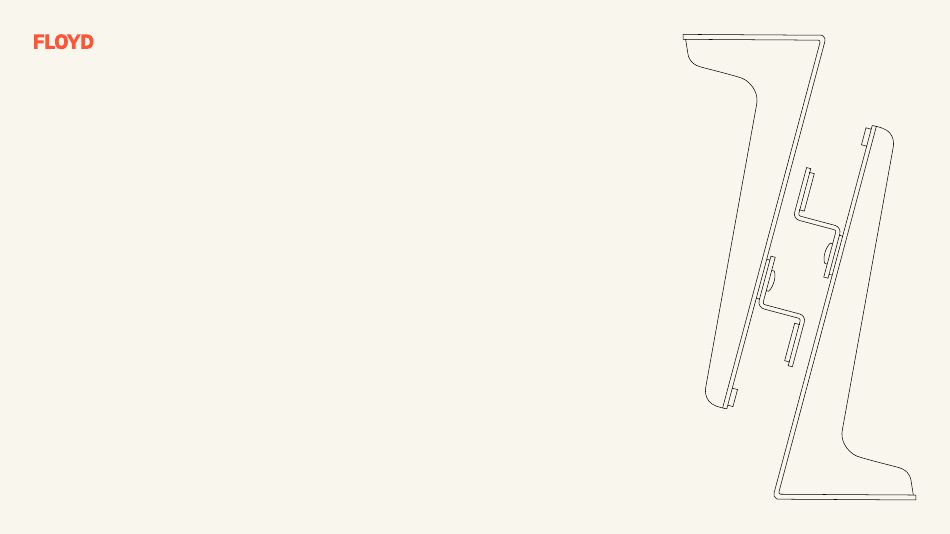

- Page 1 HOW TO ASSEMBLE: Headboard Add-On (2.0)
- Page 2 COMPONENTS 2x Brackets with Z Clips 2x Bottom Plates 4x Carriage Bolts 4x Wing Nuts 1x Headboard Panel Assembly Instructions The Upholstered Headboard Add-On...
- Page 3 Step: 1 Prepare the brackets.
- Page 4 Once you’ve removed the brackets from the packaging, the first step is to adjust the z-clip to the desired location. This will dictate the overall height of your headboard, there are 3 heights to choose from. Assembly Instructions The Upholstered Headboard Add-On...
- Page 5 Drop the carriage bolts through the marked holes in the bottom of the bracket, then slide the bottom plate onto bolts and loosely screw on wing nuts. Repeat the process for the second bracket. Assembly Instructions The Upholstered Headboard Add-On...
-
Page 6: Install The Brackets
Step: 2 Install the brackets. -
Page 7: Attach The Brackets
Attach the brackets. Slide the brackets onto your bed, making sure that the bolts slide in between the panels. Leave about 1/4" of space between the end of the bracket and the end of the panels. Assembly Instructions The Upholstered Headboard Add-On... - Page 8 Ensure brackets are aligned with one another, leaving 1/4" of space between the back side of the bracket and the end of the bed panels, then tighten the nuts on the underside of the bracket. .25" Assembly Instructions The Upholstered Headboard Add-On...
- Page 9 Step: 2C Add the headboard. With the Z-clips slightly loose, place the headboard panel onto the brackets. Assembly Instructions The Upholstered Headboard Add-On...
- Page 10 Step: 2D Finish your assembly. Ensure your headboard is fixed into place and tighten all the screws — now you’re ready to enjoy your new headboard! Assembly Instructions The Upholstered Headboard Add-On...
- Page 11 You can reach out to us at floydhome.com/pages/contact Feel like showing off? We’d love to see what you’ve done with the place. Tag us on Instagram @floyddetroit and say hello. Assembly Instructions The Upholstered Headboard Add-On...
- Page 12 ADULT ASSEMBLY REQUIRED. KEEP SMALL PARTS AND Only assemble as shown in these instructions. PACKAGING AWAY FROM CHILDREN The Floyd Headboard should only be used with the Floyd Platform Bed Frame. Use extra precaution NOTES ON USE: when assembling and have someone assist you.
