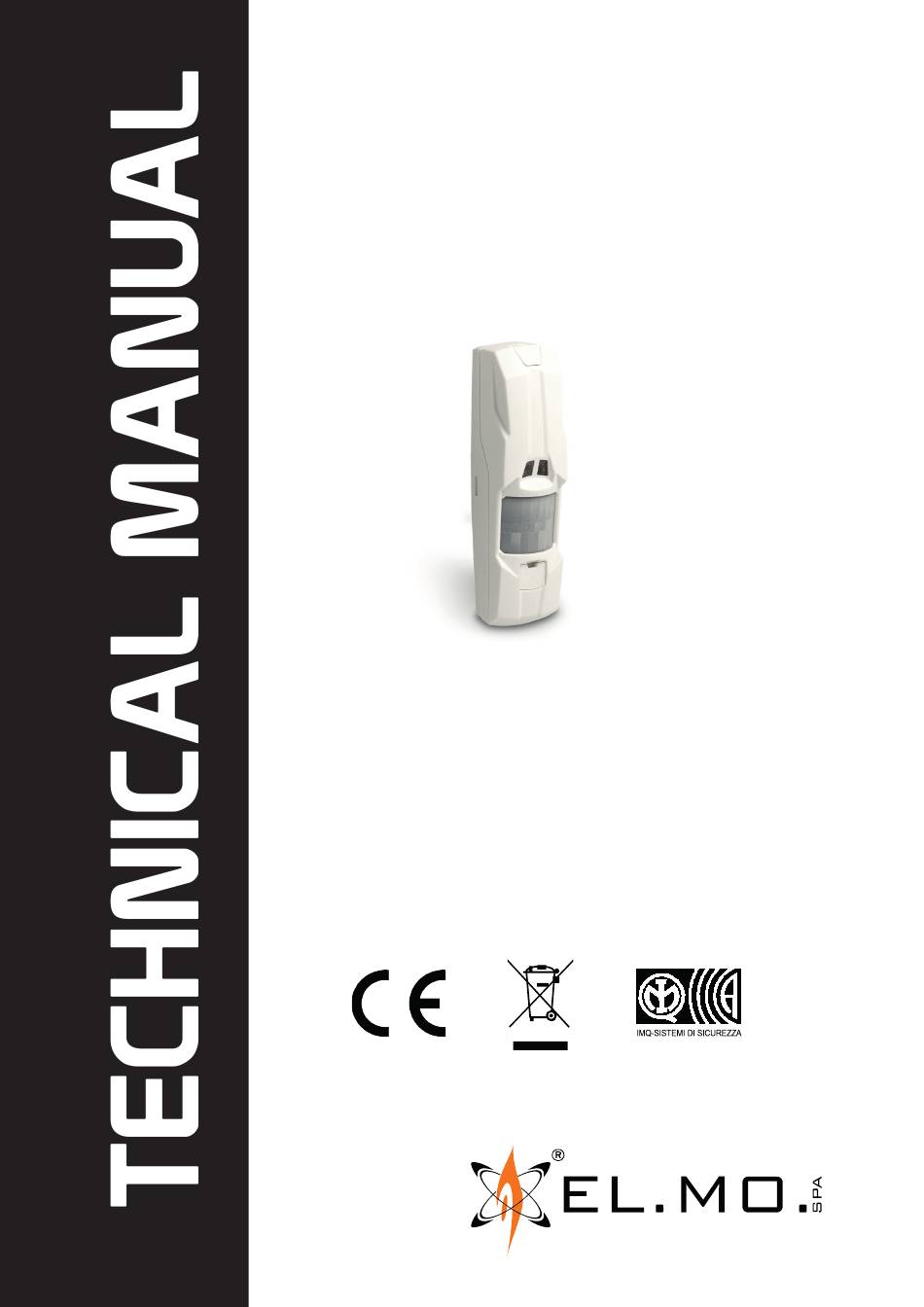

- Page 1 GRIFOX Indoor/outdoor advanced dual-technology detector with volumetric protection 090031032 IT08020000001624...
-
Page 2: For The Installer
090031032 - GRIFOX - TECHNICAL MANUAL FOREWORD FOR THE INSTALLER: Comply strictly with current standards governing the installation of electrical systems and security systems, and with the manufacturer’s directions given in the manuals supplied with the products. Provide the user with full information on using the system installed and on its limitations, pointing out that there are different levels of security performance that will need to suit the user’s requirements within the constraints of the specific applicable standards. -
Page 3: General Information
090031032 - GRIFOX - TECHNICAL MANUAL 1. GENERAL INFORMATION The GRIFOX detector is an advanced high-performance miniaturized dual-technology model designed to be installed indoors/outdoors to provide large spaces with volumetric protection. It can be wall mounted, corner mounted or installed so that it can swivel using the optional accessories. -
Page 4: Specifications
S4 dowel for protection against removal Hereby, EL.MO. Spa declares that the radio equipment GRIFOX is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: elmospa.com – registration is quick and easy. -
Page 5: View Of Detector
090031032 - GRIFOX - TECHNICAL MANUAL 3. VIEW OF DETECTOR Exploded view of detector with all accessories. CUPSGX sunshield for installation outdoors. SNDSGX swivel mount for mounting at an Optional extra. angle with pan/tilt option. Fastening with side clips. Optional extra. -
Page 6: How To Open, Fasten And Refit The Cover On The Housing
090031032 - GRIFOX - TECHNICAL MANUAL • Do not fit sensors so that they are directly next to each other or so that they are aimed directly at each other without enough distance between them: keep them at least 15 m apart. -
Page 7: Protection Against Removal From The Mounting Surface
090031032 - GRIFOX - TECHNICAL MANUAL 4.3 Protection against removal from the mounting surface Compliance with EN 50131 regulation grade 3 requires that the device is protected against removal from the mounting surface. 4.3.1 Mounting without bracket or joint In case of direct mounting on a wall, only:... -
Page 8: Installation Examples
090031032 - GRIFOX - TECHNICAL MANUAL 4.4 Installation examples For installation outdoors, with optional sunshield and swivel mount, refer to the following illustrations, which show what mounting positions are and are not allowed: Outdoors cover walls, with sunshield and corner bracket for mounting at 90°... -
Page 9: Coverage Diagram
090031032 - GRIFOX - TECHNICAL MANUAL 5. COVERAGE DIAGRAM Range: 7 - 4 m Coverage: volumetric, 81° Coverage pattern:18 zones arranged over 4 planes Note: the coverage diagram refers to wall mounting without the corner bracket at a height of 2.1m. -
Page 10: Wiring
090031032 - GRIFOX - TECHNICAL MANUAL 6. WIRING View of the board inside: Meaning of internal DIP-switch switches. international@elmospa.com elmospa.com... -
Page 11: Operation
7.3 Disabling the microwave section The GRIFOX detector can be set so that the microwave section is disabled, usually in order to reduce energy usage when the control unit/area is disarmed. To disable the section, set DIP switch 1 to OFF (default) and apply +12V to the AUX terminal by means of an output belonging to the control unit/area that is disarmed;... -
Page 12: Anti-Masking/Anti-Blinding Function
THE DETECTOR INWARD If the GRIFOX detector is mounted somewhere that people are going to pass near, it is best to disable the “anti- masking” feature by setting DIP switch 2 to ON and DIP switch 3 to OFF, which corresponds to “just anti-blinding”. -
Page 13: And Mode
If the GRIFOX detector is rotated 5° around its Z-axis or X-axis relative to the position it was originally mounted in, a tamper alarm lasting 5 s is produced with the 24H output terminals changing state. Change in orientation is indicated by the green and blue LEDs flashing in an alternating pattern. -
Page 14: Indicators
• Where necessary, the look-down function circuit can be disabled via software. 8. INDICATORS The GRIFOX detector’s LEDs indicate the following operating statuses: Green LED = during operation, it flashes when the IR section signals a prealarm status; it lights up together with the microwave section’s blue LED to indicate alarm status. - Page 15 090031032 - GRIFOX - TECHNICAL MANUAL international@elmospa.com elmospa.com...
-
Page 16: Table Of Contents
The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy Tel. +390499203333 - Fax +390499200306 - Technical Ass. +390499200426 - www.elmospa.com - international@elmospa.com...
