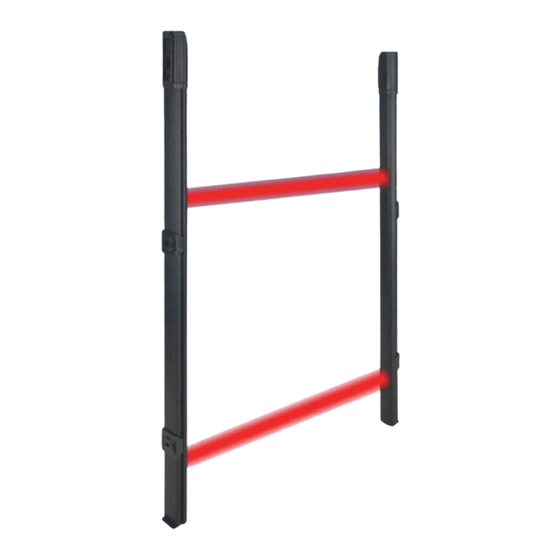

- Page 1 Active Infrared Barriers LK-IR v.3 series TECHNICAL MANUAL...
- Page 2 LK-IR v.3 series - TECHNICAL MANUAL - 090020682 FOREWORD FOR THE INSTALLER: Please follow carefully the specifications relative to electric and security systems realization further to the manufactu- rer’s prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise specifi- cations and different safety performances levels that should be proportioned to the user needs.
-
Page 3: Generals
The IR signal consists of a pulsed, coded digital sequence to prevent barriers elusion through the illumina- tion of the receiver with an external IR source. Note: IR signal transmission encoding of LK-IR v.3 series barriers has been modified to improve barriers operating mode, therefore products of this series are not compatible with products of the previous version LK-IR v.2. -
Page 4: Installation
EN50130-4:1995 + A:1998 on immunity and standard EN50081-1:1992 on electromagnetic emissions. LK-IR v.3 series barriers also passed tests conducted in compliance with LVD 73/23/EEC standard on electrical safety; the tests were run according to the standard EN60950:2000-06. - Page 5 CHECK AGAIN ITS OPERATING FUNCTIONS CLIPS FIXING IMPORTANT: IR signal transmission encoding of LK-IR v.3 series barriers has been modified to improve bar- riers operating mode, therefore products of this series are not compatible with products of the previous version LK-IR v.2.
- Page 6 LK-IR v.3 series - TECHNICAL MANUAL - 090020682 Table of positions and fixing of barriers’ support clips: Model Supplied Distance Following Following Following Following Distance clips from the distance distance distance distance from barrier fixing point of point point point...
-
Page 7: Electrical Wiring Diagram
090020682 - TECHNICAL MANUAL - LK-IR v.3 series 4. ELECTRICAL WIRING DIAGRAM Operating mode WITHOUT synchronisation wire connected RX dipswitch no. 3 shall be set to OFF position and TX specific jumper shall be closed. In this operating mode, a transmission procedure shall be carried out, by simultaneously lighting all the be-... - Page 8 LK-IR v.3 series - TECHNICAL MANUAL - 090020682 Operating mode WITH synchronisation wire connected In this operating mode, RX barrier sends the operating data necessary for the correct management of the IR beams to TX barrier through the synchronisation wire.
-
Page 9: Installation Examples
090020682 - TECHNICAL MANUAL - LK-IR v.3 series 5. INSTALLATION EXAMPLES Main entrances and gates: NOTE: The installer shall secure the barrier at 90° with respect to the wall. Multiple windows: WARNING Be very careful: during installation of multiple barriers on one wall, a transmitter beam MUST NOT be de-... - Page 10 LK-IR v.3 series - TECHNICAL MANUAL - 090020682 Single window: French window: Skylights: NOTE: The installer shall secure the barrier at 90° with respect to the wall. - Installation recommended for two windows positioned one next to the other. Place the transmitters as follows:...
-
Page 11: Alarm Conditions Management
090020682 - TECHNICAL MANUAL - LK-IR v.3 series 6. ALARM CONDITIONS MANAGEMENT 6.1 Alarms general detection Alarm signals detection depends on the configuration of RX and TX dipswitches and jumpers. The alarm is normally generated in the following cases: - if one or more beams are interrupted;... -
Page 12: Table Of Contents
NOTE: the function is not active for LK-IR2 barrier or if the barriers operate with AND mode. 6.3 Fast response to beams interruption LK-IR v.3 series barriers are equipped with a device for beams interruption detection and analysis se- lectable with DIP no.2: when set to ON position, it ensures a fast response to beams interruption.
