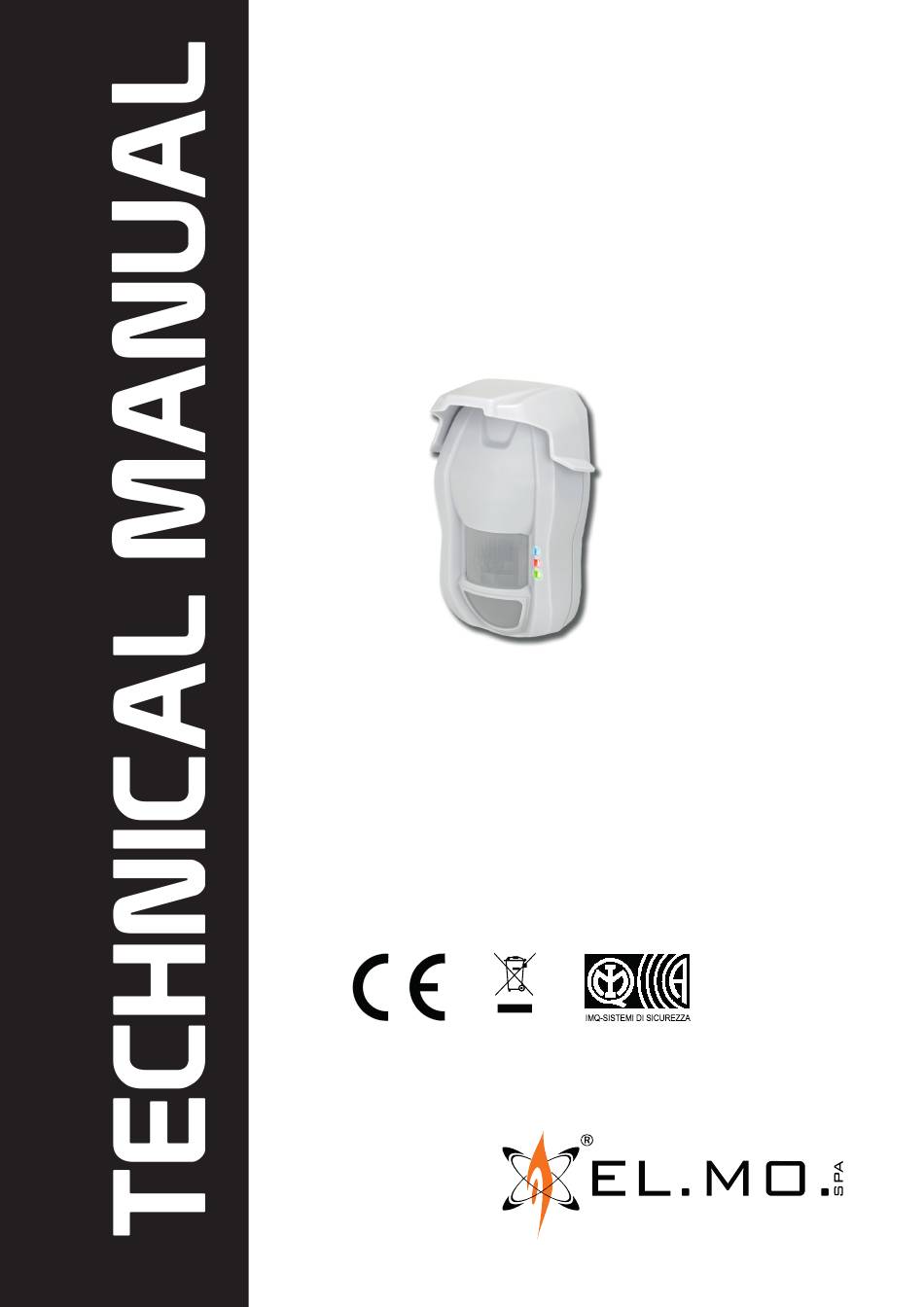

- Page 1 TRIAL - TRIALH Outdoor triple technology detector equipped with anti-masking and under-crawl protection 090041111...
- Page 2 EU DECLARATION OF CONFORMITY Hereby, EL.MO. S.p.A. declares that the TRIAL - TRIALH radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elmospa.com – registration is quick and easy.
-
Page 3: Generals
The detector housing shape allows for both outdoor and indoor installation. A key point of the TRIAL detector is the use of 2 digital PIR sensors to obtain very high detection precision and great immunity against noise. -
Page 4: Electrical Features
TRIAL - TRIALH - TECHNICAL MANUAL - 090041111 2.2 Electrical features Model TRIAL (TRIALH) Visualizations section operation, section operation, alarm status, faults, orientation Performance level II (none when using SNDTRIAL). change, masking/blinding. IMQ certified EN50131-2-4: grade 3 LEDs exclusion Through dip switch.. -
Page 5: View Of The Detector
090041111 - TECHNICAL MANUAL - TRIAL - TRIALH 3. VIEW OF THE DETECTOR Exploded diagram of the detector, including accessories. The parts composing the various types of joints can be ordered with the SNDTRIAL product name. Protection cover for outdoor Angle bracket for installation of a part of the joint;... -
Page 6: Installation
TRIAL - TRIALH - TECHNICAL MANUAL - 090041111 4. INSTALLATION 4.1 General installation suggestions • During board installation and handling, avoid touching the PIR sensors with your fingers. • In case you need to point the detector towards windows or plastic curtains, make sure the MW range does not cross them (if necessary, adjust the MW range to the minimum). -
Page 7: Housing Opening And Closing Operations
090041111 - TECHNICAL MANUAL - TRIAL - TRIALH 4.2 Housing opening and closing operations The electronic board can be damaged by electrostatic discharge. The installer shall free himself of electrostatic charges before opening the housing and he shall keep free from electrostatic charges during the whole installation or maintenance process. -
Page 8: Cables Feeding
TRIAL - TRIALH - TECHNICAL MANUAL - 090041111 4.3 Cables feeding Internal view and indications for the cables feeding. Feed the cables in upward Arrangements for drilling and direction through hole support pins for wall mounting. Fixing screw for indicated. -
Page 9: Sunshield Installation
Possible installations with SNDTRIAL optional joint: A. Fixing with joint at any height only for TRIAL, with rotation up to ±45 ° and maximum tilt ±45 ° (the joint is mandatory for installations at heights from 2.1 m to 3 m maximum). -
Page 10: Protection Against Removal From The Mounting Surface
TRIAL - TRIALH - TECHNICAL MANUAL - 090041111 4.7 Protection against removal from the mounting surface Compliance with EN 50131 regulation grade 3 requires that the device is protected against removal from the mounting surface. Install the proper kit for protection against removal before fixing the tilted plate or the joint to the wall. -
Page 11: Operation
5.2 MW section exclusion In order to reduce the power consumption while the control unit is disarmed, it is possible to disable the TRIAL MW section by applying a +12 V tension to the “MW.ESCL.” terminal. In this condition, only the PIR sensors perform the detection and the operation mode switches to OR regardless of the position of dip 5. -
Page 12: Function
The TRIAL detector is provided with circuitry that implements protection against orientation change. An accelerometric sensor detects orientation changes on 2 axes. If TRIAL is subject to a rotation of 5° on the Z or on the X axis, with respect to the initial installing position, a 5-second tamper alarm will be triggered;... -
Page 13: Coverage Diagram
090041111 - TECHNICAL MANUAL - TRIAL - TRIALH 6. COVERAGE DIAGRAM Coverage diagram of the detector mod. TRIAL equipped with standard lens (EWA 1.2 GI 12 V2). Range: 15 m. IR coverage: Volumetric, IR 94° opening. Beams arrangement: 2 × 28 areas on 4 planes, 2 ×... -
Page 14: Electrical Wirings
TRIAL - TRIALH - TECHNICAL MANUAL - 090041111 7. ELECTRICAL WIRINGS View of the detector board. international@elmospa.com elmospa.com... -
Page 15: Table Of Contents
090041111 - TECHNICAL MANUAL - TRIAL - TRIALH 8. TABLE OF CONTENTS 1. GENERALS ................. . 3 2. - Page 16 TRIAL - TRIALH - Outdoor triple technology detector equipped with anti-masking and under-crawl protection 090041111 TECHNICAL MANUAL - February 2021 edition The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy...
