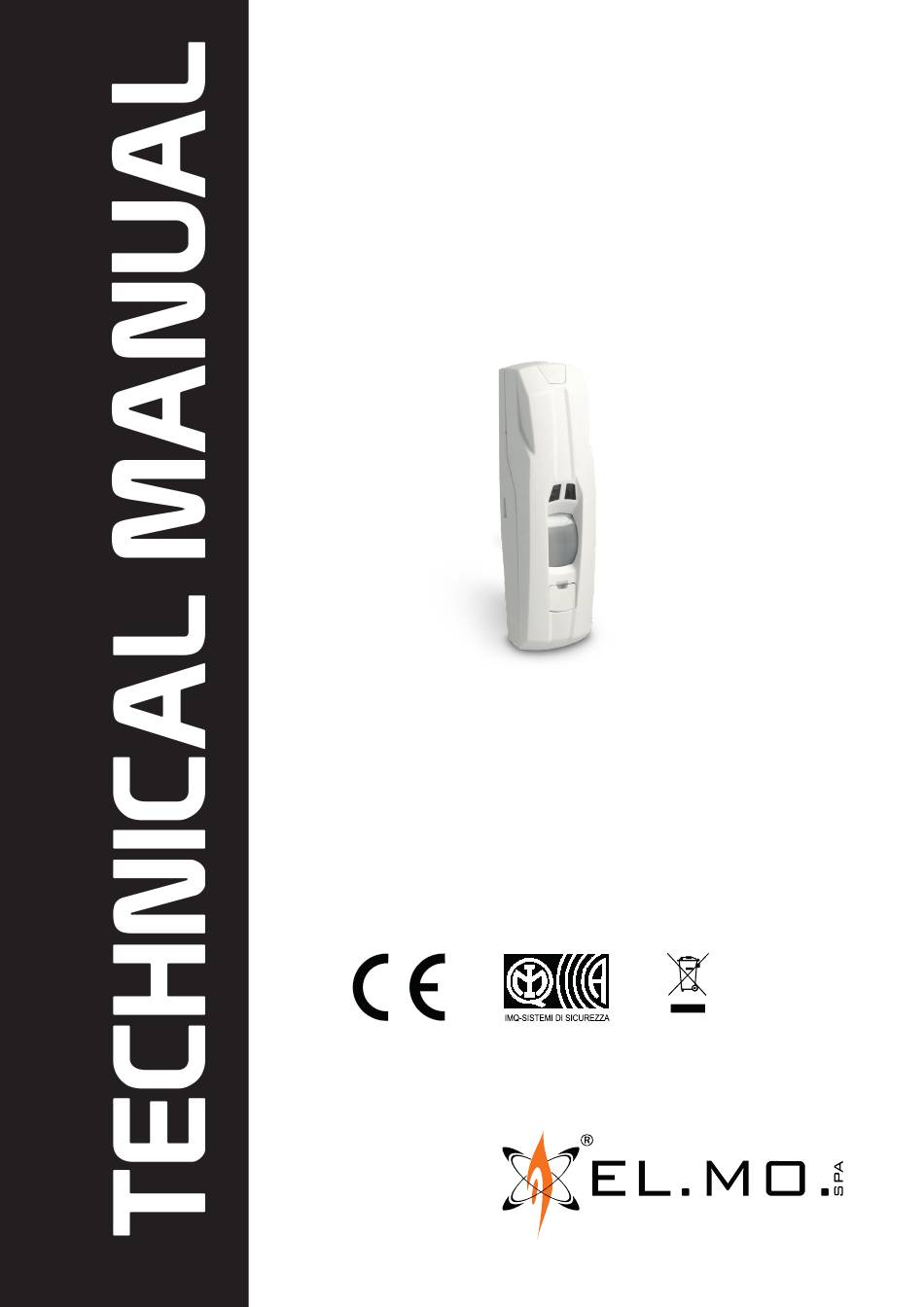

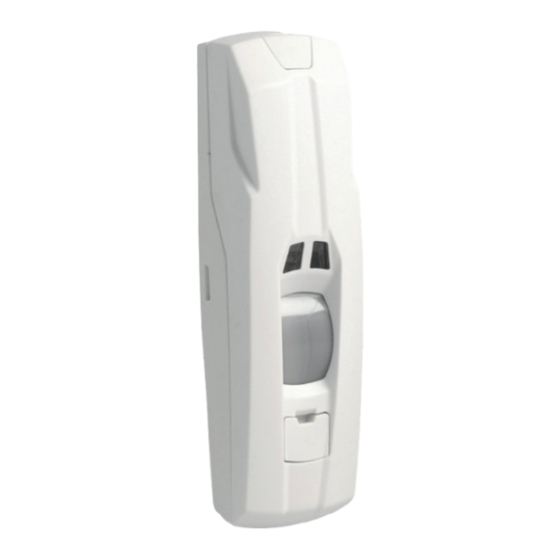

- Page 1 STRIXO Indoor/outdoor advanced double- technology detector with vertical curtain protection 090011029...
- Page 2 EU DECLARATION OF CONFORMITY STRIXO Hereby, EL.MO. Spa declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: elmospa.com – registration is quick and easy.
-
Page 3: Generals
It can be installed on a wall (in vertical position) or on the ceiling, using the optional kits of accessories. In order to make the installation process easier, STRIXO is equipped with input terminals in its back cover and in the joint;... -
Page 4: Technical Features
STRIXO - TECHNICAL MANUAL - 090011029 2.2 Technical features Model STRIXO Protection class IP55 with mandatory use of protection grommets (provided as standard equipment). IMQ certified EN-50131-2-4: grade 3. Environmental class Power supply voltage 12 V (from 7.7 (8) to 15 V). -
Page 5: View Of The Detector
Allows for protection of the connection internal gasket outdoor cables. installation. Fix to the lower part of the STRIXO detector to allow for the required tilting. Detector board with input terminals boards in the Upper masking cap for the closing upper part. -
Page 6: Installation
STRIXO - TECHNICAL MANUAL - 090011029 4. INSTALLATION 4.1 General installation suggestions • Do not touch the PIR sensor with your fingers while installing or touching the board. • Place the detector between the door/window and its shutter. The protection area is approximately 90° wide and 7°... -
Page 7: Protection Against Removal From The Mounting Surface
090011029 - TECHNICAL MANUAL - STRIXO 4.3 Protection against removal from the mounting surface Compliance with EN 50131 regulation grade 3 requires that the device is protected against removal from the mounting surface. Install the proper kit for protection against removal before fixing the detector base, the ANGSGX bracket or the SNDSGX joint to the wall. -
Page 8: Installation To Protect A Door And Covering Diagram
STRIXO - TECHNICAL MANUAL - 090011029 7.2 Installation to protect a door and covering diagram GRID AREA PROTECTED BY THE DETECTOR TOPDOWN VIEW OF A BALCONY WITH SHUTTER (MW COVERAGE AREA ALSO SHOWN) BALCONY OPEN SHUTTERS RANGE MW RANGE AREA PROTECTED BY THE DETECTOR For door protection, we suggest that you set a 50% range: set dip switches 7 and 8 as indicated. -
Page 9: Installation To Protect A Gate And Covering Diagram
RANGE Note: to realise a vertical curtain protection for gates and French doors up to 2 meters large, it is possible to mount STRIXO with the (optional) joint at a 45° tilt as shown below (choose one according to the possible wiring). - Page 10 STRIXO - TECHNICAL MANUAL - 090011029 Top view of the IR coverage of a STRIXO detector used to protect an outer wall, screwed to a nearby wall. This kind of installation can also be used for indoor walls, without the optional sunshield: INSTALL THE DETECTOR WITH NO JOINT BUT WITH THE OPTIONAL SUNSHIELD.
- Page 11 090011029 - TECHNICAL MANUAL - STRIXO Protection of outdoor walls, with close basis and opposite orientations. Outdoor, at less than 8 m from an alley/road with vehicle passage. Outdoor, at less than 8 m from trees or shrubs. Protection of outdoor walls, with close basis and angular orientations (90°...
-
Page 12: Electrical Wirings
STRIXO - TECHNICAL MANUAL - 090011029 8. ELECTRICAL WIRINGS Internal view of the board. SOLID STATE C-NC RELAY OUTPUT SOLID STATE C-NC RELAY OUTPUT FOR SENSOR FOR SENSOR ALARM (10 Ω IN SERIES) MASKING, FAULT AND BLINDING (10 Ω IN SERIES) -
Page 13: Functions
9.2 MW section exclusion It is possible to disable the STRIXO MW section in order to reduce power consumption when the control unit is disarmed. The MW section can be excluded by setting dip 1 OFF (default) and applying a +12 V voltage to the AUX terminal (coming from a control unit output set to follow the status of this detector’s zone): in this... -
Page 14: Anti-Masking/Anti-Blinding Functions
For further indications, see the “4.1 General installation suggestions” section on page 6. WARNING: • If you need to install a STRIXO detector in locations where continuous people motion occurs, especially at distances lower than 30 cm, we suggest that you disable the... -
Page 15: Look-Down Function
The STRIXO detector is provided with circuitry that implements protection against orientation change. An accelerometric sensor detects orientation changes on 2 axes. If STRIXO is subjected to a rotation of 5° on the Z or on the X axis with respect to the initial installing position, a 5-second tamper alarm is triggered, with a consequent status variation of the 24H output terminals. -
Page 16: Table Of Contents
12. TABLE OF CONTENTS ............... .16 STRIXO Indoor/outdoor advanced double-technology detector with vertical curtain protection - TECHNICAL MANUAL...
