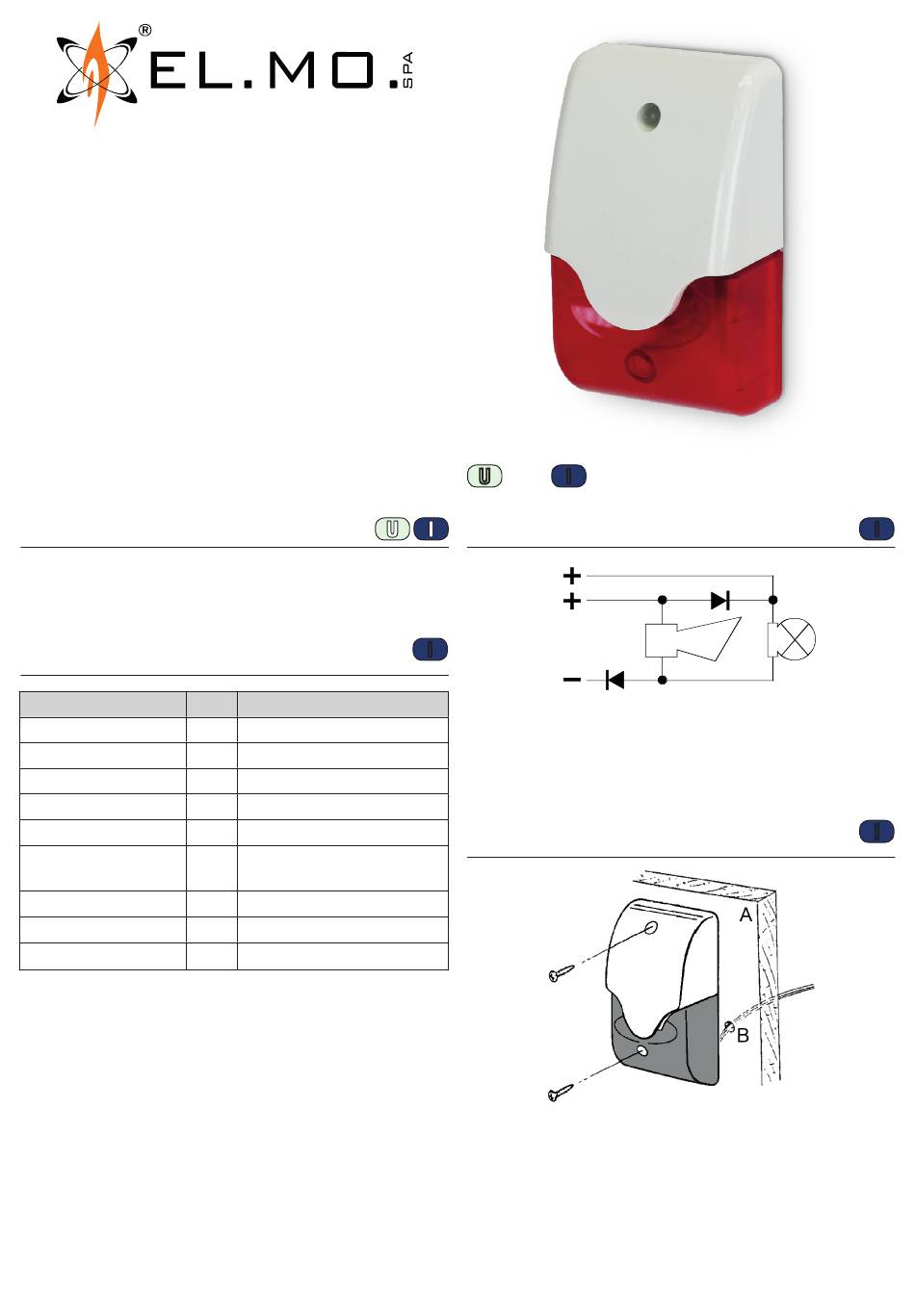

El.Mo EL/6F Technical Manual

Technical Manual
EL/6F

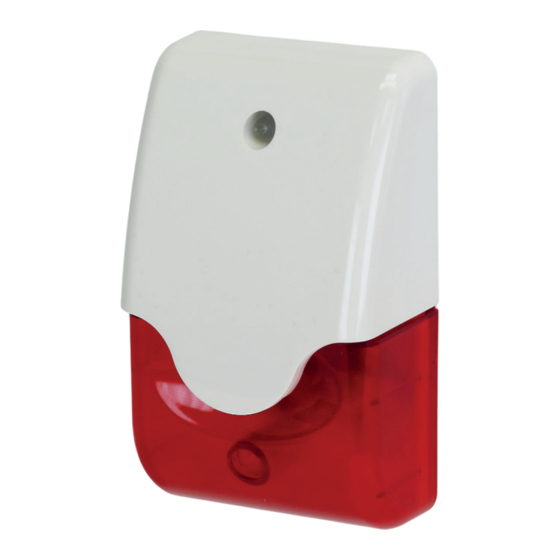

Indoor piezoelectric siren for intrusion
detection systems, with LED strobe
1. GENERALS
The EL/6F indoor siren features a good-looking plastic housing,
high acoustic power and an high efficiency piezo sounder.
Its strobe light can also be controlled separately from the siren.
2. TECHNICAL DATA
Model
DC power supply
Current draw @ 12 V
Sound pressure @ 12 V
Protections
Connections
Functions
Dimensions
Weight
Parts supplied
Recipient of the instructions:
Unit EL/6F
V 12 (10÷14)
mA 280
dB 100
Against polarity inversion
3-wire cable, 30 cm long
Separate activation of the siren
and of the strobe
mm W 73, H 122, D 46
g 110
2 fixing screws
User | Installer
U I
3. WIRING
A
B
I
C
A Strobe only positive (white).
B Strobe and siren positive (red).
C Common (brown).
D Siren.
E Strobe.
4. MOUNTING
A Wall.
B Hole.
1
D E
I
I
