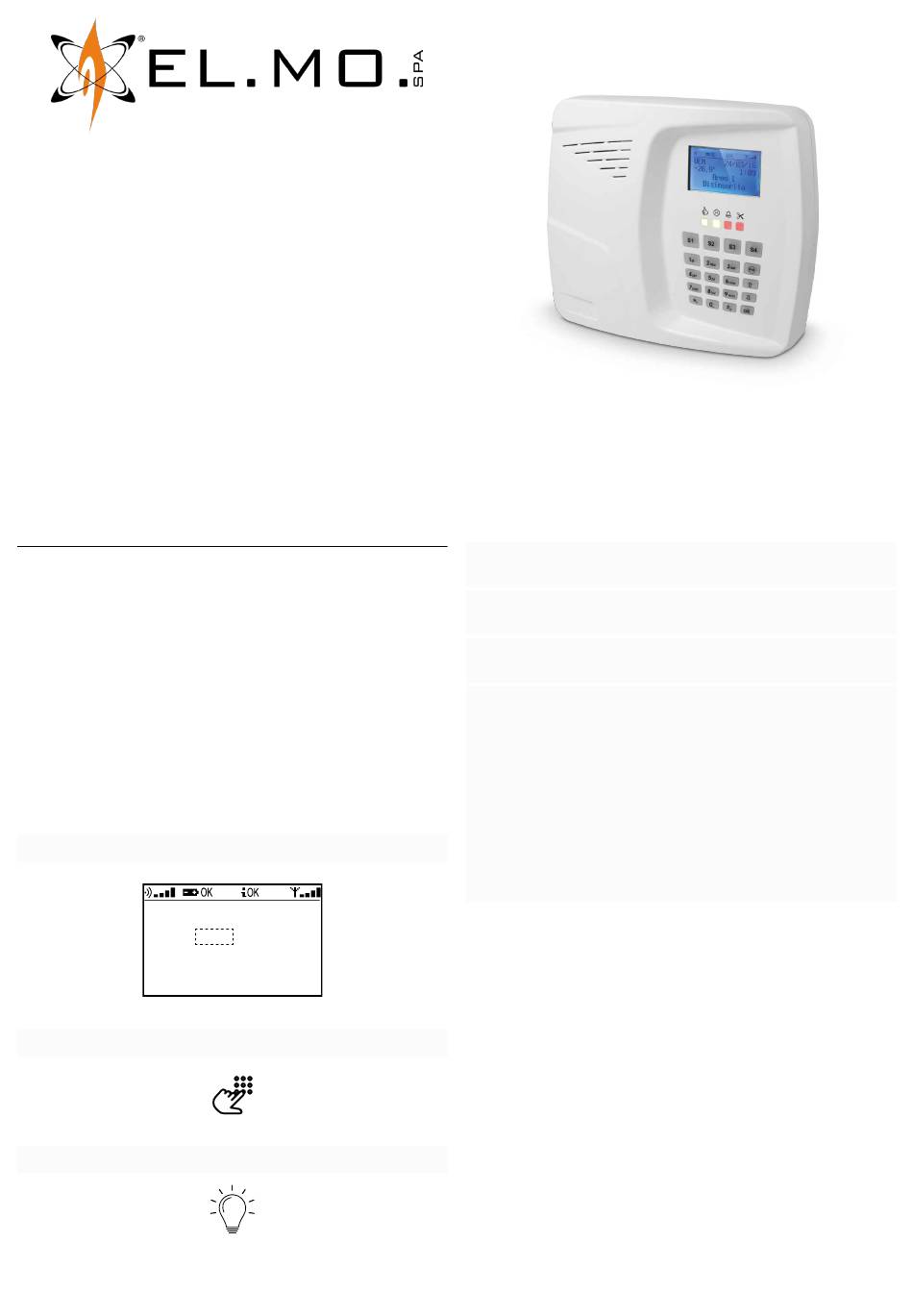

User manUal
HERCOLA
Wireless intrusion detection control
unit with integrated GSM module
1
GENERALS

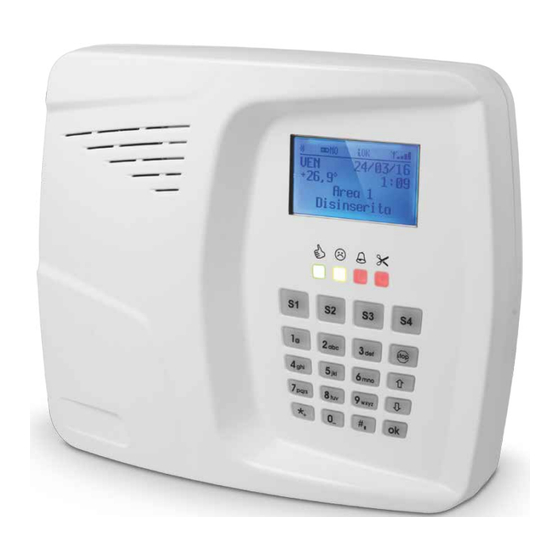

HERCOLA is a wireless intrusion detection control unit.
The control unit is compatible with
• traditional wireless devices
• EL.MO. cabled devices
HERCOLA integrates a GSM-GPRS module.
Optional modules (MDWIFIH, MDTEMP) can be installed to
improve unit operating mode.
It is also possible the connection to e-Connect with the in-
stallation of suitable modules.
HERCOLA is supplied in a plastic housing.
Icons used in this manual
▼ Example of messages on keypad display
FRI
21,4°
S1 S2 S3 S4
▼ Keys typing
▼ Usage example
01/06/18
09:00
+21,7°
Area 1
Manual contents
▼ Keypads usage → chap. 2 p. 2
Operating mode from keypad → par. 2.4 p. 5
▼ Proximity keys usage → chap. 3 p. 12
Operation with proximity keys → par. 3.2 p. 13
▼ Remote controls usage → chap. 4 p. 14
Operation with remote controls → par. 4.2 p. 14
▼ GSM and phone communications → chap. 5 p. 15
▼ Temperature monitoring → chap. 6 p. 16
▼ Chronothermostat usage → chap. 7 p. 17
▼ Use of e-Connect → chap. 8 p. 19
▼ Maximum security property → chap. 9 p. 19
▼ Remote interrogation and remote
control → chap. 10 p. 21
▼ System test → chap. 11 p. 24
▼ Anomalies diagnostics → chap. 12 p. 25
1 1 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for El.Mo HERCOLA
Summary of Contents for El.Mo HERCOLA
- Page 1 GENERALS Manual contents ▼ Keypads usage → chap. 2 p. 2 HERCOLA is a wireless intrusion detection control unit. Operating mode from keypad → par. 2.4 p. 5 The control unit is compatible with ▼ Proximity keys usage → chap. 3 p. 12 •...
-
Page 2: Keypads Usage
Fast blinking alternate to steady At least one sector associated to light the key is armed (but not all) HERCOLA control units are multi-area devices capable of Slow blinking Exit time in progress managing up to 16 sectors. During unit setup, sectors can be divided into: •... -
Page 3: Displayed Information
1. Zones status LED Idle display It indicates zones arming status. • ON: no zones with alarm/tamper alarm events. The unit can be armed. • OFF: at least one zone not assigned to the exit path is alarmed. • Blinking: the unit is armed and at least one zone assigned 01/06/18 to the exit path signals an anomaly event;... -
Page 4: Change Of Current Operating Area
The two indications can be inverted and the display of the Display with 4 areas / 4 sectors mode built-in temperature detector can be disabled. Temperature values will blink when detectors need 01/06/18 calibration: it can be performed through user or install- 21,4°... -
Page 5: Check Zones Status
– Go to ALM/TAMP. MEMORY. – Press OK to enter the menu item. 01/06/18 – Use arrow keys ↑ or ↓ to browse the reports. 21,4° 09:00 +21,7° If there is pending information, the two arrows on the dis- Area 1 play will blink. -
Page 6: System Arming With Sectors Selection - 4 Areas
be armed. The sectors proposed are set during system installation. 01/06/18 21,4° 09:00 +21,7° Area 1 01/06/18 Disarmed 21,4° 09:00 +21,7° Area 1 Disarmed (default: 111111) (default: 111111) SELECT SECTORS SELECT SECTORS Area 1 Area 1 S1 S2 S3 S4 S1 S2 S3 S4 –... -
Page 7: Sectors Mode
keys remains lighted unless the option Hide arming state is and G sectors. enabled). Example Armed status will be displayed. If the built-in keypad has been configured as “system If sectors proposed for arming at the beginning are 1,2, 3, keypad”, areas armed will be displayed instead of 6 and 7 sectors. -
Page 8: Fast Arming - 8/16 Sectors Per Area Mode
Arming with sector key + OK 2.4.7 Disarming When system is armed: The option Activate fast arming in BrowserOne has to be activated. 01/06/18 – Press sector key of the sector to be armed (the sector can 21,4° 09:00 +21,7° be armed if it is authorised at least to one user). -
Page 9: Enter User Menu On Keypad
2.5 Enter USER MENU on keypad keypads controlling the areas involved in the arming denied. HERCOLA units provide a user menu that can be accessed – When forced arming is allowed, the following message at keypad. -
Page 10: Zones Bypass
bypassed by the installer only. SAVE CHANGES? 2.5.2 Limits to installer access (Ok=Yes #=No) Installers access to configuration is subject to users’ authorisation. While in user menu, the 4 LED indicators will blink The authorisation is valid for all access modes: from keypad, simultaneously. -
Page 11: Clock Calibration
Sunday), day/month/year, hour and minute. Use arrow – Use arrow keys ↑ or ↓ to browse among daily schedules. keys ↑ or ↓ to move cursor along the row: data which are – Press OK to enter a schedule. being modified will blink. –... -
Page 12: Change Phone Numbers
• DIS. ONLY (= only disarming) – The system shows the first zone to be tested which will be – Press # key to suspend a user (SUSPENDED = system ac- alarmed. The system beeps for confirmation and is now cess denied). -
Page 13: Readers Type
generated. More consecutive access attempts with the Readers type same code will be counted as one. 3.2.1 System arming – Place the proximity key near the sensitive area onto reader. Tamper/general alarm LED (shared indication) Unit arming status LED (zones status) –... -
Page 14: System Forced Arming
activate. if within a arming/disarming cycle more than 20 at- The code entered may not be of the same user that dis- tempts are detected (non-recognised keypad/key/re- armed the unit; however each user can lock only timers of mote control/remote access codes) the event pertaining areas. -
Page 15: Panic Event
GSM AND PHONE COMMUNICATIONS 5.4 Sending SMS to control units The MDGSMI module integrated in the HERCOLA control SMS texts are used to receive information about unit status unit allows connection to the GSM-GPRS network to send or send commands to the unit. -
Page 16: Advanced Settings
TEMPERATURE MONITORING • with the user code keyed in and followed by S3 key, or • sending an SMS text with S.3 HERCOLA series units are equipped with a temperature de- tector measuring the temperature inside the housing. 6.3 Calibration... -
Page 17: External Temperature Sensor
SMS. "antifreeze" level is not used. CHRONOTHERMOSTAT Example HERCOLA series units feature Chronothermostat function for boilers control. For example, referring to above image: The working mode can be daily or weekly based. • in time interval 6-7 level 2 is applied (small square on row Chronothermostat interface •... -
Page 18: Temperature Change
TEMPERATURE TEMPERATURE Programm.:+18,2° Programm.:+18,2° Modify:+18,5° Manual:+18,5° (↑↓ 1=On/Off Ok) (↑↓ 1=On/Off Ok) • active - automatic: the chronothermostat will control boiler activation according to setup TEMPERATURE Programm.:+18,2° Ve 01/06 Manual:+18,5° +26,8° 09:00 (↑↓ 1=On/Off Ok) Manual:+22,0° • active - automatic: the chronothermostat will control boiler activation according to a temperature threshold –... -
Page 19: Boiler Control
If temperature detected falls below set threshold, the boiler will be activated. The boiler will switch off when the temperature exceeds by 0.3° set threshold. e-Connect is a supervision software for EL.MO. intrusion de- tection systems. Boiler block detected e-Connect allows users to control and manage their systems If the option Activate Boiler Failure Detection is enabled via the Internet, a PC or a smartphone application. -
Page 20: Arming With Max Security
disabled In detail, if a sector is armed in Weekly Programmer • by a user with ‘max security’ property (enabled via Max Security mode and a user with max security prop- BrowserOne during configuration) erty performs a disarm, the Weekly Programmer Max •... -
Page 21: Remote Interrogation And Remote
REMOTE INTERROGATION AND Disarming made by user with Max Security or weekly programmer without REMOTE CONTROL Max Security When control units are equipped with GSM module, SMS Disarming made by weekly programmer can be used: with Max Security • to receive information about system status; •... -
Page 22: Answers To Report Request Messages
C.123456 R.C there are some conditions that prevent arming. with an empty space between C.123456 and R.C ▼ PANEL FULLY ARMED The user will receive the following text (example): All sectors authorised for the user are armed. PANEL FULLY ARMED, TAMPER ALARM MEMORY ▼... -
Page 23: Anomalies Report
internal temperature measured by the sensor. ▼ no alarm/tamper mem. No alarm / tamper memories. Replying SMS 10.2.4 Anomalies report ▼ +/- XX,X degrees Temperature detected (if single). The control unit replies with SMS texts containing anomalies information, one text per each zone pertaining to the user. ▼... -
Page 24: Gsm On/Off
10.3.2 GSM ON/OFF ▼ E.DENIED Zone exclusion is not allowed or the user is not au- thorised for Small Maintenance. Replying SMS ▼ N.DENIED ▼ GSM ON Zone inclusion is not allowed or the user is not au- GSM module on. thorised for Small Maintenance. -
Page 25: Diagnostics
• outputs: temporary activation of programmable relay in case of inactivity. (when activated for general or tamper alarm), external GSM automatic switch off siren, and sirens on serial line Installers can also configure GSM module so that it turns off While testing the radio sirens, attenuation is applied to automatically after the inactive time interval set. -
Page 26: Table Of Contents
Table of contents GENERALS ......P. 1 Calls reception ......p. 15 5.1.1 Remote listening . - Page 27 GENERAL WARNINGS ....P. 28 INSTALLER WARNINGS ....P. 28 USER WARNINGS .
-
Page 28: Eu Declaration Of Conformity
The information and product features herein are not binding and may be changed without prior notice. EL.MO. Spa | Via Pontarola, 70 | 35011 Campodarsego (PD) - Italy Ph. +39 049.9203333 | Fax +39 049.9200306 | Help Desk +39 049.9200426 | www.elmospa.com | international@elmospa.com...
