Summary of Contents for El.Mo BLADERF

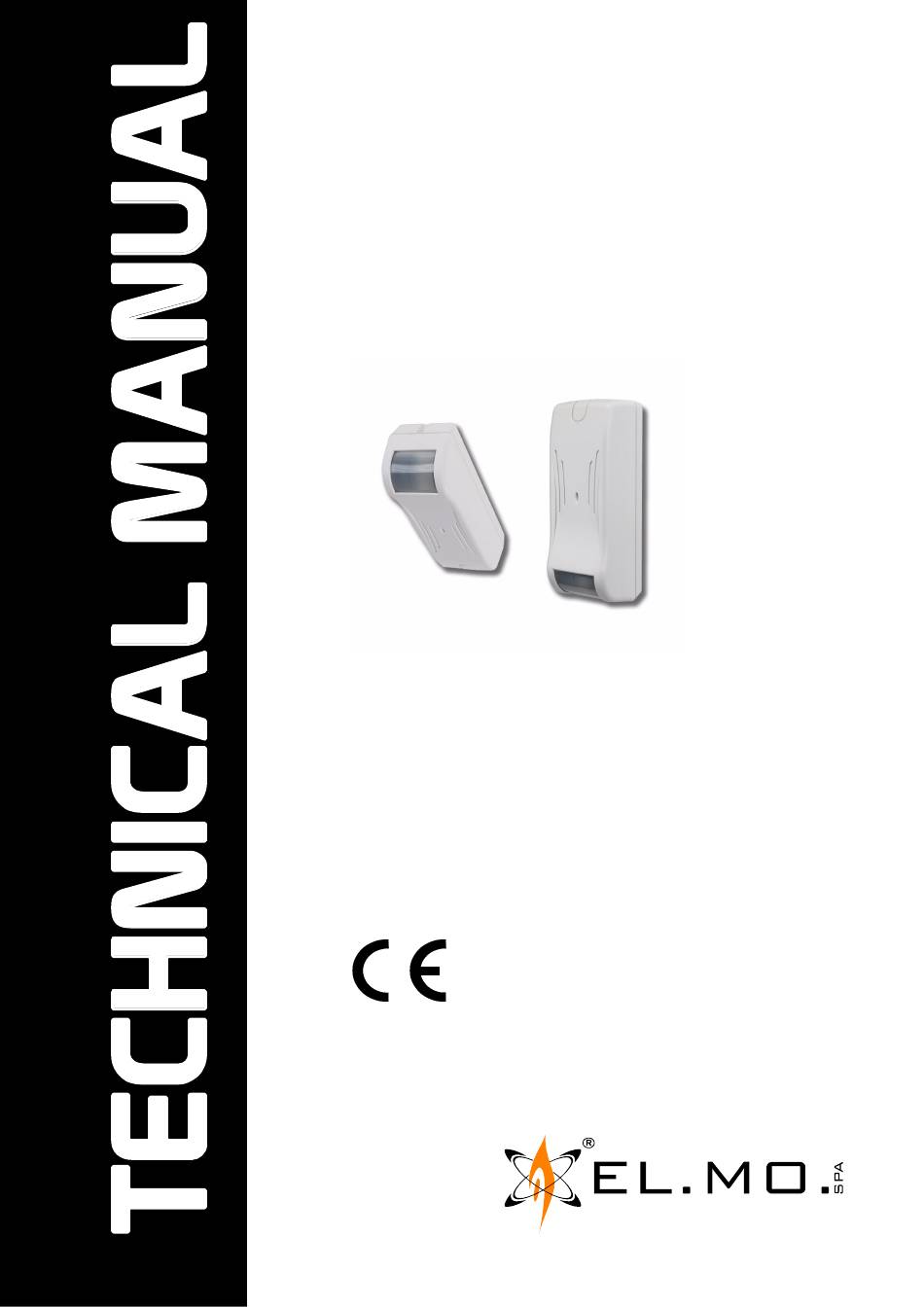

- Page 1 BLADERF Advanced wireless IR detector for door and windows protection 090020839...
- Page 2 090020839 - BLADERF - TECHNICAL MANUAL WARNING FOR THE INSTALLER: Please follow carefully the specifications relative to electric and security systems realization further to the manufacturer's prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system's limitations, specifying that there exist precise specifications and different safety performances levels that should be proportioned to the user needs.
- Page 3 The detector BladeRf allows to realize an efficient perimeter protection via radio at three levels, in fact is possible to connect a magnetic contact and a detector for shutter to the corresponding terminals.
- Page 4 3.6 V, with bag labels for capacity reduction. The BladeRf detector complies with EN50131-5-3 + A1 at level 1and level 2 for the environmental class. The Blade detector has passed tests conducted in accordance with the directive EMC 2004-108-EC with tests carried out in accordance with EN 50131-2-2 level 1 for IR section, EN 50130-4 + A1+ A2 regarding immunity info@elmospa.com...
-
Page 5: Installation
EN 61000-6-3 concerning electromagnetic emissions. For the radio section has been carried out according to ETSI EN 300220-3, ETSI EN 301489-3.1, EN50131-5-3 + A1 for grade 1. The detector BladeRf complies with the R & TTE 199/5/CE. For the aspects of electrical safety have been complied with requirements of Directive LVD 2006-95-EC with tests carried out in accordance with EN 60950-1. - Page 6 3.3 Effects of building materials and furnishings The BladeRf installation must respect certain rules to avoid a drop in performance due to positioning errors. In fact, it is vitally important to define with the greatest care the operating area of the receiving system in which the transmitter is installed, the actual sensors coverage and the correct installation especially in relation to the nature of the materials used in the building construction.
- Page 7 090020839 - BLADERF - TECHNICAL MANUAL Items that can modify and/or reduce the capacity with HELIOS control unit. Items that can modify and / or reduce the capacity with Villeggio series control unit. info@elmospa.com elmospa.com...
- Page 8 090020839 - BLADERF - TECHNICAL MANUAL 3.4 Installation for window protection and coverage diagram 3.5 Installation for door protection and coverage diagram info@elmospa.com elmospa.com...
- Page 9 In vertical mounting is imperative to put the detector with the lens facedown and the body of the detector approached the corner at the top. Top view of the BladeRf range for windows protection: Resulting capacity with BladeRf installed to the outside of the wall: info@elmospa.com elmospa.com...
-
Page 10: Electrical Connections
090020839 - BLADERF - TECHNICAL MANUAL 4. ELECTRICAL CONNECTIONS Internal board view: Information provided by the blue LED: Stable turned on= stabilization at first powered. Single flashing= Sensor in Walk-test, IR single pulse Triple flashing= RF transmission during the walk- Single flashing in test. -
Page 11: Setup Procedure
6. SETUP PROCEDURE 6.1 Set the communication protocol BladeRf is an accessory component for wireless systems with HELIOS or VILLEGGIO control unit or other com- patible models. In order to successfully send generated event codes is necessary to correctly set the communication protocol. - Page 12 K. Exit programming in the usual way. Note: If you use a programmed BladeRf for the magnetic contact (Dip n.1 = ON), the release of TAMPER will transmit the code of the magnetic contact to the control unit, also in this case the detector for roll-up shutter will assume the same code of the PIR sensor.
- Page 13 090020839 - BLADERF - TECHNICAL MANUAL 7. OPERABILITY 7.1 Precautions before system installation - Is recommended that the roll-up shutter or the shutter are closed before system installation. - In case of insertion with open shutter/roll-up shutter to pay attention to the transition to sliding windows and protected doors because the coverage to the outside is extremely limited, people or animals that will pass less than 20 cm distance could be detected.
-
Page 14: Disposal Instructions
090020839 - BLADERF - TECHNICAL MANUAL 8. DISPOSAL INSTRUCTIONS Dispose of BLADE RF in compliance with current city regulations and by leaving the device in a dumping ground which is authorized for the disposal of electronic products; if required, please contact the appropriate city office for additional information. - Page 15 090020839 - BLADERF - TECHNICAL MANUAL 9. INDEX 1. GENERALS ................3 2.
- Page 16 Advanced wireless IR detector for door and windows protection mod. BLADERF - TECHNICAL MANUAL November 2013 Edition - 090020839 Product specifications as described above do not bind the manufacturer and may be altered without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy...
- Page 17 DECLARATION OF DI CONFORMITA CONFORMITY ’ EL.MO. spa dichiara sotto la propria responsabilità che il prodotto / declares that the product: BLADERF Sensore IR via radio / IR wireless detector al quale questa dichiarazione si riferisce, è conforme alle seguenti norme:...
