CCS LDL2-SW2 A Series Instruction Manual

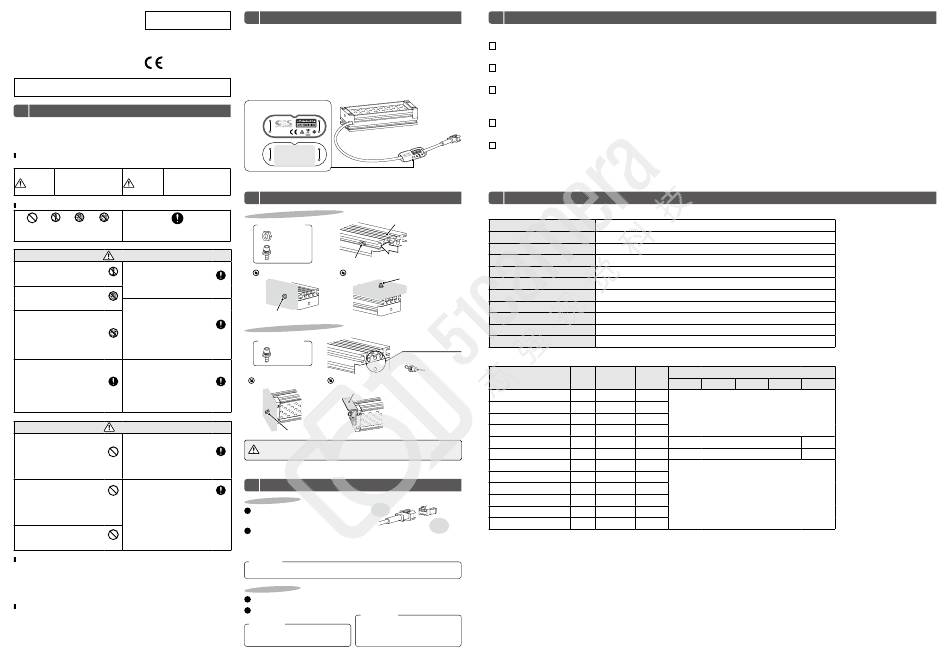

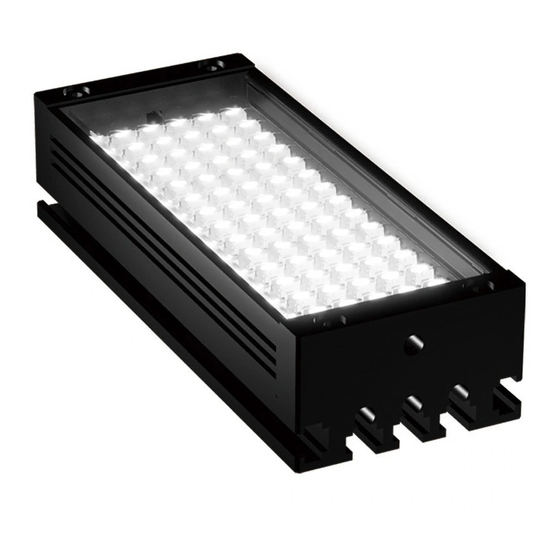

Bar Lights
LED Light for Machine Vision
a n d I n d u s t r i a l I n sp e c t i o n
LDL2-SW2(A) Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
- Read Before Use -
This product has been designed with full consideration of safety.
However, incorrect usage of the product may result in fire, electric shock,
or other serious damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
- Read Before Use -
classify the relative importance of warnings and cautions.
Indicates that incorrect Indicates that incorrect
Warning u s a g e m ay r e s u l t i n Caution usage may result in injury
serious injury or death. or property damage.
The following symbols in the instruction guide indicate and classify the precautions.
DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED MANDATORY
PROHIBITED WITH WET HANDS TO MOISTURE
ACTIONS
These symbols indicate prohibited actions. This symbol indicates required actions.
Warning
Do not disassemble or modify the LED Light radiation may cause
product. Doing so may result in fire corneal or retinal abnormalities
or electric shock. if you look directly at the light. To
DISASSEMBLY
PROHIBITED
prevent harmful light exposure,
Do not touch the product with wet
never look directly at the LED Light.
hands. Doing so may result in
T h i s p r o d u c t g e n e r a t e s h i g h
electric shock.
DO NOT TOUCH
WITH WET HANDS
temperatures. Do not touch the
Make sure that the product is free
product while it is turned on or
of moisture or any liquid. Exposure
immediately after it is turned off,
t o w a t e r m ay r e s u l t i n f i r e o r
or burning may result. Provide
electric shock.
c o o l i n g w i t h a f a n o r o t h e r
DO NOT SUBJECT
TO MOISTURE ventilation if the product is to be
used in a closed space.
Connect or disconnect the light If abnormal condition occurs such
cable only af ter turning of f the as fuming, heat, smell, noise,
Control Unit for the LED Light. or so on, stop using the product
Failure to do so may result in immediately, turn the power off,
MANDATORY
circuit damage, fire caused by a and unplug the power cord. A fire
ACTIONS
minute spark, or electric shock. or electric shock may result if the
product is kept used.
Caution
Do not use user- made cables. Use a Control Unit that is suitable
D o i n g s o m ay c a u s e p r o d u c t for the product ratings. Using an
failure. Use the CCS extension incorrect Control Unit can cause
cable if it is necessary to extend product failure.
PROHIBITED
the distance between the Light
Unit and the Control Unit.
Be careful of static electricit y. Use a standard Extension Cable
Damage to the LED Light may that is manufac tured by CC S.
occur, if a person charged with However, if the cable is too long,
PROHIBITED
static electricity touches it. Keep the light intensity will decrease due
the product away from all items to the DC resistance of the cable.
charged with static electricity.
Do not drop the product or subject
it to impact. Doing so may cause
the product to malfunction.
PROHIBITED
Do not use the Light Unit in the following situations.
• Under conditions or in an environment not described in this instruction guide.
• In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
• In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the Light Unit to locations with following conditions.
Incorrect installation location may cause Light Unit failure.
• In a flat and stable location with • Places free from any water, oil, liquid,
minimal vibration. chemical, or steam.
• Well-ventilated places with minimal dust. • Places free from corrosive or combustible gas.
• Places that are not subject to sudden • Places away from water faucets, boilers,
temperature changes. humidifiers, air conditioners, heaters, or stoves.
2 Confirming Product Information
The following tag is attached to the cable on the LED Light. The
color of the label indicates the luminescence color of the Light.
The back of the tag there is a name label that gives the model
number, power consumption, and serial number. Be sure to check
the contents before using the product and handle the label with
care. If the label is missing or damaged and the contents cannot be
checked, please contact CCS Inc.
Tag Example
Front
M O D E L L D L 2 - n n × n n S W 2 ( A )
I N P U T 2 4 V = n . n W
S / N 0 1 2 3 4 5 6 7 8 9
Back
M a n u f a c t u r e r : C C S I n c .
3 7 4 O k a k u e n c h o , K a m i g y o - k u ,
K y o t o 6 0 2 - 8 0 1 1 , J a p a n
E U I m p o r t e r : C C S E u r o p e N . V .
B e r g e n s e s t e e n w e g 4 2 1 B ,
1 6 0 0 S i n t - P i e t e r s - L e e u w , B e l g i u m
M A D E I N J A P A N
3 Installation
Installation on a Frame Installation on a Frame
Frame
Required Parts
M3 nuts
M3 screws
M3 nut
Side Installation Rear Installation
MANDATORY
ACTIONS
M3 screw
Installation Using a Tap Hole Installation Using a Tap Hole
MANDATORY
ACTIONS
Required Parts
M3 screws
Direct Installation Installation with Brackets
BK-LDL2 (Optional product, sold separately)
MANDATORY
ACTIONS
M3 screw
The tap holes on the back surface are for factory use. Do not use
Caution
them for installation.
MANDATORY
ACTIONS
4 Operating Instructions
MANDATORY
Wire Connection Wire Connection
ACTIONS
Light Unit
Make sure that the power is
1
side
turned OFF.
Connect the light cable of the
2
Light Unit to the Control Unit Insert the connector completely.
output connector.
Reference
Read the instruction guide of the Control Unit for the LED Light before use.
Capture Images Capture Images
1 Turn the power on.
The light will come on.
2
Adjustment
Preparations
Adjust light range, light angle, and radiant
Focus imaging devices such as cameras,
quantity to optimize images. Use the
and so on to inspection objects.
Control Unit to adjust the radiant quantity.
- 1 -
5 Optional Products (Sold Separately)
The following optional products are available for the Light Units. Obtain the required product.
Diffusion Plate DF-LDL2 Series
1
Diffuses direct light. This enables uniform lighting of inspection objects.
Polarizing Plate PL-LDL2 Series
2
Light is lineally polarized. Prevent light reflection by using the polarizing plate together with the polarizing filter (PL Series) mounted to the lens.
Protective Plate CV-LDL2 Series
3
Protects the light-emitting part of the Light Unit. It is not available to use this product for protection use from any damages caused by
dust, water and etc.
Bracket BK-LDL2
4
The lighting angle is adjustable.
Bracket BK-LDQ2 Series
5
This bracket can be used to mount four Bar Lights. The lighting angle is adjustable.
CCS provides an optional product as a standard product or custom product. Refer to 6. Main Specifications for details.
6 Main Specifications
Common Specifications
Input voltage
Correlated color temperature (typ.)
Insert the M3 nut into
Connector
the slit in the frame.
Polarity, signal
Cable length
M3 screw
Cooling method
Operating environment (indoors only)
Storage environment
CE marking
Case material
Accessories
Tap holes for installation
Provided on both sides.
Specifications by Model
M3 screw
LED
1
Model name*
color
LDL2-41×16SW2(A) White
LDL2-80×16SW2(A) White
LDL2-119×16SW2(A) White
LDL2-158×16SW2(A) White
LDL2-26×30SW2(A) White
LDL2-50×30SW2(A) White
LDL2-74×30SW2(A) White
LDL2-98×30SW2(A) White
LDL2-122×30SW2(A) White
LDL2-146×30SW2(A) White
LDL2-218×30SW2(A) White
Control Unit
LDL2-266×30SW2(A) White
side
*1 These are the names of narrow types. In the case of wide type, add "-WD" before "(A)". E.g.: LDL2-26×30SW2-WD(A)
In most cases unless otherwise specified, the descriptions on this Instruction Guide are commonly applicable for both types.
*2 S: CCS provides the product as a standard product. Refer to LDL2 series Operation Guide for Optional Products for details.
C: CCS provides the product as a custom product. Please contact your CCS sales representative for details.
24 VDC
White: 7000 K
SMR-03V-B
1: (+), 2: NC, 3: (-)
300 mm
Natural air-cooling
Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation)
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation)
Safety standard: Conforms to EN 62471-1
Aluminum alloy, resin
Instruction guide
Power
Optional products* 2
Weight
consumption
(max.)
DF-LDL2 PL-LDL2 CV-LDL2 BK-LDL2
(max.)
3.8 W 50 g
7.6 W 75 g
S
12 W 95 g
16 W 120 g
3.8 W 55 g S
7.6 W 80 g S
12 W 100 g
16 W 125 g
19 W 150 g
S
23 W 170 g
35 W 240 g
42 W 280 g
- 2 -
BK-LDQ2
C
C
