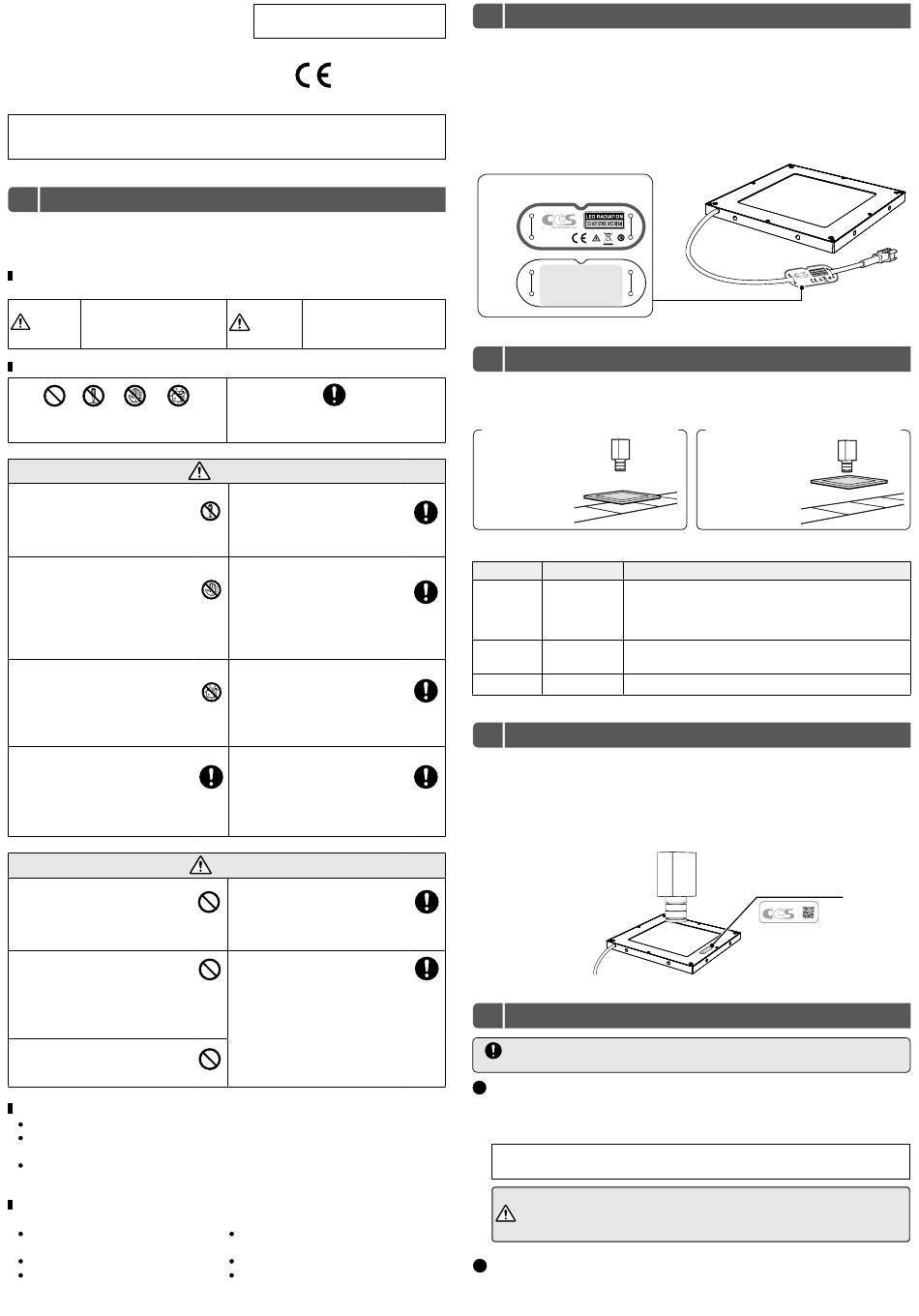

CCS LFXV Series Instruction Manual

Flat Dome Lights
LFXV Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
These products have been designed with full consideration of safety. However,
incorrect usage of the products may result in fire, electric shock, or other serious
damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
classify the relative importance of warnings and cautions.
I n di c ate s t h at i nc o r r e c t
Warning
usage may result in serious
injury or death.
The following symbols in the Instruction Guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions.
Do not disassemble or modify the
Light Unit. Doing so may result in
fire or electric shock.
Do not touch the Light Unit with
wet hands. Doing so may result in
electric shock.
Make sure that the Light Unit is free
of moisture or any liquid. Exposure
to water may result in fire, electric
shock.
If abnormal condition occurs such
as fuming, heat, smell, noise, or
so on, stop using the Light Unit
immediately, and turn off the power
source. A fire or electric shock may
result if the Light Unit is kept used.
Do not use user-made cables. Doing
so may cause product failure. Use the
CCS extension cable if it is necessary
to extend the distance between the
Light Unit and the Control Unit.
Be careful of static electricity.
Damage to the LED Light may
occur, if a person charged with
static electricity touches it. Keep
the product away from all items
charged with static electricity.
D o n o t d r o p t h e L i g h t U n i t o r
subject it to impact. Doing so may
cause the Light Unit to malfunction.
Do not use the Light Unit in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the Light Unit to locations with following conditions.
Incorrect installation location may cause Light Unit failure.
In a flat and stable location with
minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden
temperature changes.
LED Light for Machine Vision
and Industrial Inspection
- Read Before Use -
Indic ates that inc or rect
Caution
usage may result in injury
or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED Light radiation may c ause
corneal or retinal abnormalities
if you look directly at the light. To
DISASSEMBLY
prevent harmful light exposure,
PROHIBITED
never look directly at the LED Light.
T h i s L i g h t U n i t g e n e r a t e s h i g h
temperatures. Do not touch the Light
Unit while it is turned on or immediately
after it is turned off, or burning may
DO NOT TOUCH
WITH WET HANDS
result. Provide cooling with a fan or
other ventilation if the Light Unit is to
be used in a closed space.
Connect or disconnect the light
cable only after turning off the
power source. Failure to do so
may result in circuit damage, fire
DO NOT SUBJECT
TO MOISTURE
c aused by a minute spar k, or
electric shock.
Using Infrared Light Units
(LFXV-nnnIR860)
M ake k n ow n to all p e r s o nne l
concerned the risk of infrared
MANDATORY
ACTIONS
radiation. Failure to do so may
cause incorrect handling.
Caution
Use Control Unit that is suitable
for the Light Unit ratings. Using an
incorrect Control Unit can cause
PROHIBITED
Light Unit failure.
Use a standard Extension Cable
that is manufac tured by CC S.
However, if the cable is too long,
PROHIBITED
the light intensity will decrease due
to the DC resistance of the cable.
PROHIBITED
Places free from any water, oil, liquid,
chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers,
humidifiers, air conditioners, heaters, or stoves.
2 Confirming Product Information
The following tag is attached to the cable on the LED Light. The
color of the label indicates the luminescence color of the Light
Unit. The back of the tag there is a name label that gives the model
number, power consumption, and serial number. Be sure to check
the contents before using the Light Unit and handle the label with
care. If the label is missing or damaged and the contents cannot be
checked, please contact CCS Inc.
Tag Example
Front
REATING
M O D E L
I N P U T
S / N
Back
M a n u f a c t u r e r : C C S I n c .
3 7 4 O k a k u e n c h o , K a m i g y o - k u ,
K y o t o 6 0 2 - 8 0 1 1 , J a p a n
E U I m p o r t e r : C C S E u r o p e N . V .
B e r g e n s e s t e e n w e g 4 2 1 B ,
1 6 0 0 S i n t - P i e t e r s - L e e u w , B e l g i u m
M A D E I N J A P A N
3 Features
This Light Unit has both dome illumination and coaxial illumination
characteristics. To obtain the optimum images, refer to the following.
Characteristics for Dome Illumination
Use of diffused light
eliminates shadows in
curved surfaces or parts.
MANDATORY
ACTIONS
Recommended Applications
Category Recommendation
Visual
Optimal
MANDATORY
inspection
ACTIONS
Character
Suitable
recognition
Measurement Usable
MANDATORY
ACTIONS
4 Installation
This Light Unit has two faces. The surface affixed with a QR code
sticker must face the camera when you install the Light Unit.
MANDATORY
Also, these two surfaces are identified by the difference in the
ACTIONS
position of the screws. For information on the dimensions of each
part, refer to 8. Dimensions.
MANDATORY
ACTIONS
MANDATORY
ACTIONS
5 Operating Instructions
Make sure that the Control Unit is turned OFF before connecting.
MANDATORY
ACTIONS
Connect the light cable of the Light Unit to the Control Unit.
1
Connect to the Control Unit equipped with SMP-03V-BC Connectors
for power output. Insert the plug all the way into the connector.
For information on applicable Control Units and cables, refer to the product
catalogs or the CCS website.
Using Infrared Light Units (LFXV-nnnIR860)
Caution
Do not expose human eyes to infrared radiation. Also, make
known to all personnel concerned the risk of infrared radiation.
Turn ON the Control Unit to turn ON the Light Unit.
2
Read the instruction guide of the Control Unit before use.
- 1 -
L F X V - n n n R D
2 4 V = n n W
0 1 2 3 4 5 6 7 8 9
Characteristics for Coaxial Illumination
Highly reflective surface
is uniformly illuminated.
Application
Inspecting the appearance of curved, irregular, or flat
glossy objects (detecting scratches, dirt, scorching,
breaking, or chipping, distinguishing different shapes
and presence/absence, inspecting surface conditions)
Character recognition on glossy objects. Bar codes
and 2-dimensional codes.
Dimensional measurement
QR code sticker
