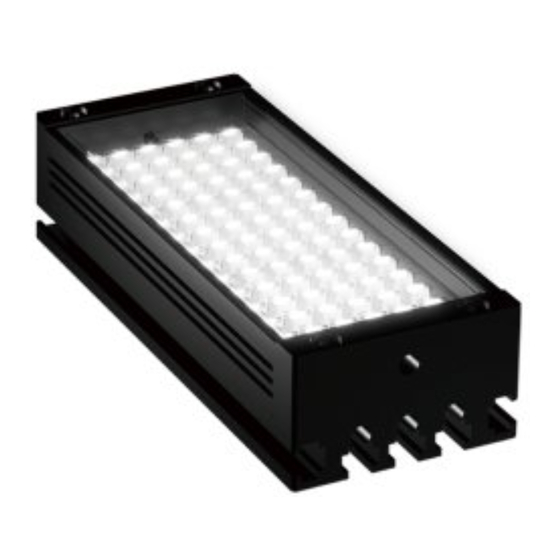

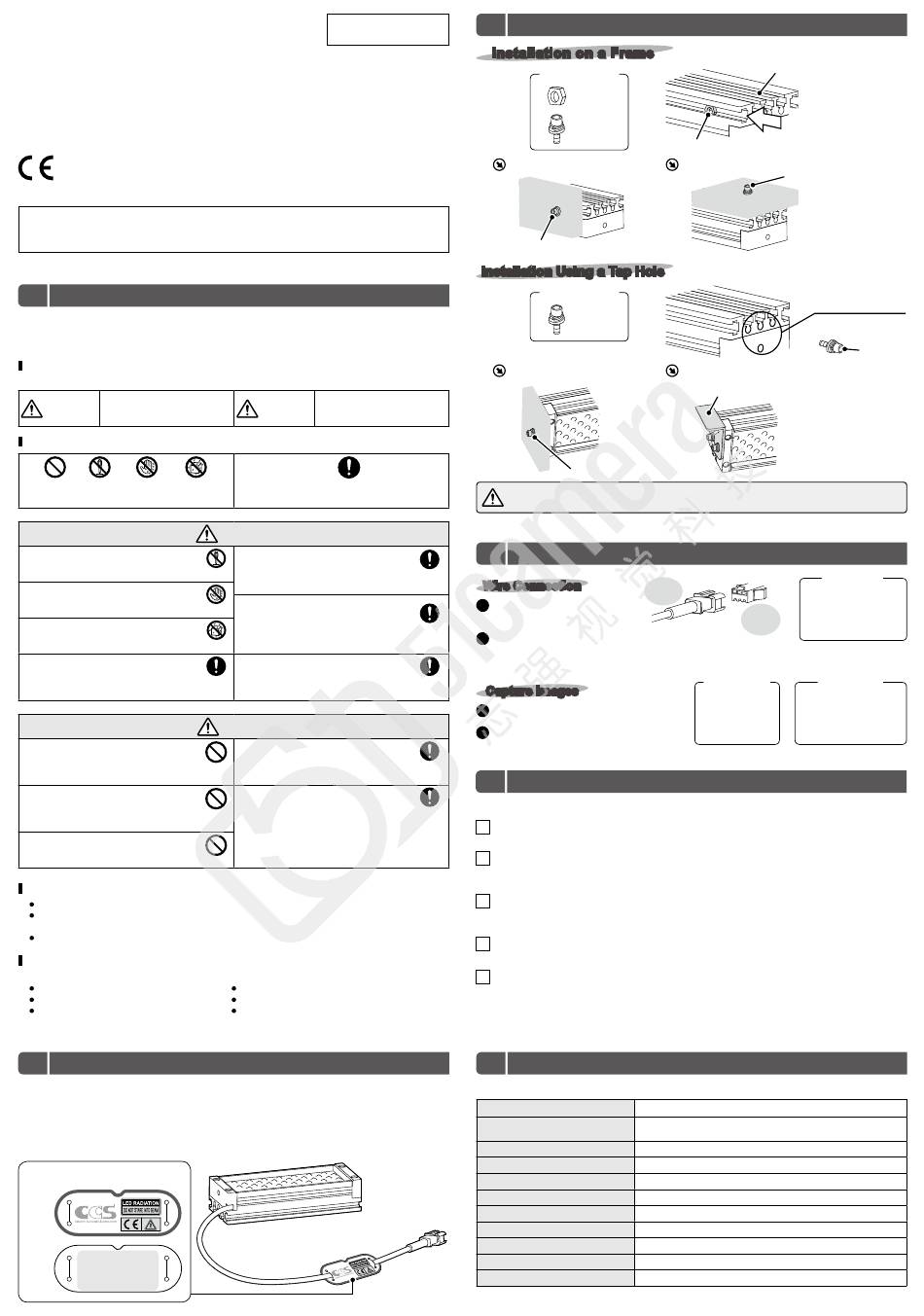

CCS LDL2-RD2 Instruction Manual

Bar Lights
LDL2-RD2/SW2/BL2 Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
These products have been designed with full consideration of safety. However, incorrect
usage of the products may result in fire, electric shock, or other serious damages. Please
ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and classify
the relative importance of warnings and cautions.
Indicates that incorrect usage may
Warning
result in serious injury or death.
The following symbols in the instruction guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions.
Do not disassemble or modify the product.
Doing so may result in fire or electric shock.
Do not touch the product with wet hands.
Doing so may result in electric shock.
Make sure that the product is free of moisture
or any liquid. Exposure to water may result in
fire or electric shock.
Connect or disconnect the light cable only after
turning off the Control Unit for the LED Light.
Failure to do so may result in circuit damage,
fire caused by a minute spark, or electric shock.
Do not use user-made cables. Doing so may
cause product failure. Use the CCS extension
cable if it is necessary to extend the distance
between the Light Unit and the Control Unit.
Be careful of static electricity. Damage to the
LED Light may occur, if a person charged with
static electricity touches it. Keep the product
away from all items charged with static electricity.
Do not drop the product or subject it to
impact. Doing so may cause the product to
malfunction.
Do not use the product in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles, combustion equipment,
medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications demanding a high level of safety.
Please install the product to locations with following conditions.
Incorrect installation location may cause product failure.
In a stable location with minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden temperature
changes.
2
Confirming Product Information
The following tag is attached to the cable on the LED Light. The color of the label indicates the
luminescence color of the Light. The back of the tag there is a name label that gives the model
number, power consumption, and serial number. Be sure to check the contents before using the
product and handle the label with care. If the label is missing or damaged and the contents cannot
be checked, please contact CCS Inc.
Tag Example
Front
M O D E L L D L 2 - n n × n n R D 2
I N P U T n n V = n . n W
S / N 0 1 2 3 4 5 6 7 8 9
M a n u f a c t u r e r : C C S I n c .
Back
3 7 4 O k a k u e n c h o , K a m i g y o - k u ,
K y o t o 6 0 2 - 8 0 1 1 , J a p a n
E U I m p o r t e r : C C S E u r o p e N . V .
B e r g e n s e s t e e n w e g 4 2 1 B ,
1 6 0 0 S i n t - P i e t e r s - L e e u w , B e l g i u m
M A D E I N J A P A N
LED Light for Machine Vision
and Industrial Inspection
- Read Before Use -
Indicates that incorrect usage may
Caution
result in injury or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED Light radiation may cause corneal or
retinal abnormalities if you look directly at
the light. To prevent harmful light exposure,
DISASSEMBLY
PROHIBITED
never look directly at the LED Light.
This product generates high temperatures. Do not
DO NOT TOUCH
touch the product while it is turned on or immediately
WITH WET HANDS
after it is turned off, or burning may result. Provide
cooling with a fan or other ventilation if the product
is to be used in a closed space.
DO NOT SUBJECT
TO MOISTURE
If abnormal condition occurs such as fuming, heat, smell,
noise, or so on, stop using the product immediately,
MANDATORY
turn the power off, and unplug the power cord. A fire or
ACTIONS
electric shock may result if the product is kept used.
Caution
Use a Control Unit that is suitable for the
product ratings. Using an incorrect Control
Unit can cause product failure.
PROHIBITED
Use a standard Extension Cable that is
manufactured by CCS. However, if the
cable is too long, the light intensity will
PROHIBITED
decrease due to the DC resistance of the
cable.
PROHIBITED
Places free from any water, oil, liquid, chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers, humidifiers,
air conditioners, heaters, or stoves.
3 Installation
Installation on a Frame
Required Parts
M3 nuts
M3 screws
Side Installation
M3 screw
Installation Using a Tap Hole
Required Parts
M3 screws
Direct Installation
M3 screw
Caution
The tap holes on the back surface are for factory use. Do not use them for installation.
4
Operating Instructions
MANDATORY
ACTIONS
Wire Connection
1 Make sure that the power is
turned OFF.
MANDATORY
ACTIONS
2 Connect the light cable of the
Light Unit to the Control Unit
output connector.
MANDATORY
ACTIONS
Capture Images
1 Turn the power on.
2 The light will come on.
MANDATORY
ACTIONS
5 Optional Products (Sold Separately)
The following optional products are available for the Light Units. Obtain the required product.
MANDATORY
ACTIONS
Diffusion Plate DF-LDL2 Series
1
Diffuses direct light. This enables uniform lighting of inspection objects.
Polarizing Plate PL-LDL2 Series
2
Light is lineally polarized. Prevent light reflection by using the polarizing plate together with the
polarizing filter (PL Series) mounted to the lens.
Protective Plate CV-LDL2 Series
3
Protects the light-emitting part of the Light Unit. It is not available to use this product for
protection use from any damages caused by dust, water and etc.
Bracket BK-LDL2
4
The lighting angle is adjustable.
Bracket BK-LDQ2 Series
5
This bracket can be used to mount four Bar Lights. The lighting angle is adjustable.
CCS provides an optional product as a standard product or custom product. Refer to 6. Main
Specifications for details.
6
Main Specifications
Common Specifications
Input voltage
Peak wavelength / correlated
color temperature (typ.)
Connector
Polarity, signal
Cable length
Cooling method
Operating environment (indoors only)
Storage environment
CE marking
Case material
Accessories
Frame
Insert the M3 nut into
the slit in the frame.
M3 nut
Rear Installation
M3 screw
Installation with Brackets
BK-LDL2 (Optional product , sold separately
Light Unit
side
Read the instruction guide
of the Control Unit for the
Control
LED Light before use.
Unit side
Insert the connector completely.
Preparations
F o c u s i m a g i n g Adjust light range, light angle,
d e v i c e s s u c h a s and radiant quantity to optimize
cameras, and so on to images. Use the Control Unit
inspection objects. to adjust the radiant quantity.
24 VDC
Red: 634 nm, White: 7800 K, Blue: 467 nm
SMR-03V-B
1: (+), 2: NC, 3: (-)
300 mm
Natural air-cooling
Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation)
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation)
Safety standard: Conforms to EN 62471
Aluminum alloy, Resin
Instruction Guide x1
Tap holes for installation
Provided on both sides.
M3 screw
)
Reference
Adjustment
