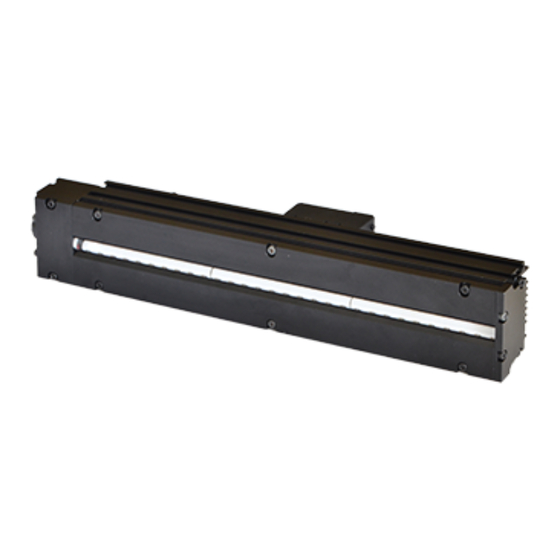

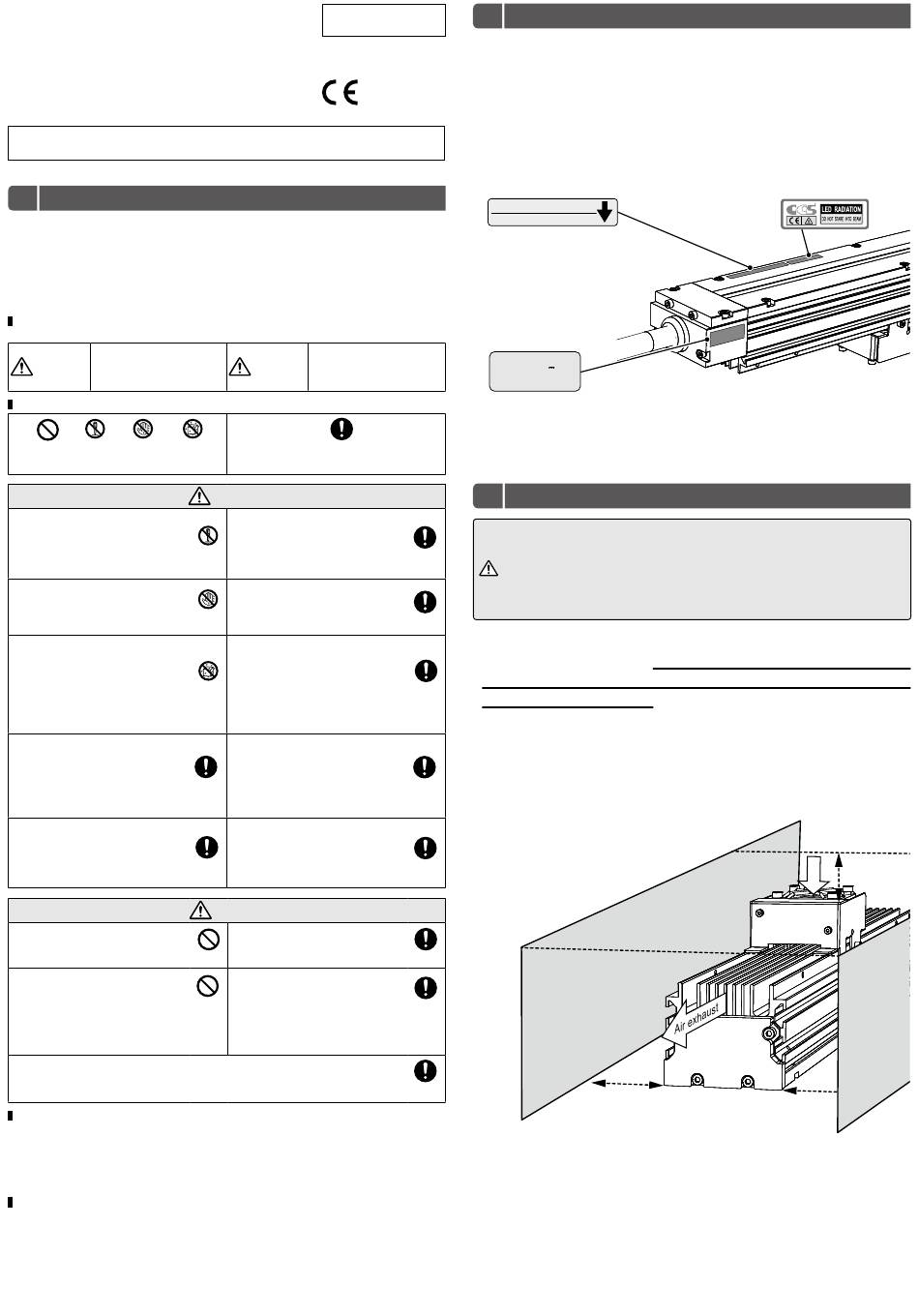

CCS LNSP-UV3-FN Series Instruction Manual

Ultraviolet LED Lights
LNSP-UV3-FN / LNSP-VL3-FN Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
Always use the specified Control Unit for this product. Operation will not
be possible if you connect to any other power supply or Control Unit.
These products have been designed with full consideration of safety.
However, incorrect usage of the products may result in fire, electric shock,
or other serious damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
classify the relative importance of warnings and cautions.
Indicates that incorrect
Warning
u s a g e m ay r e s u l t i n
serious injury or death.
The following symbols in the instruction guide indicate and classify the precautions.
DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions.
Do not disassemble or modify the
Light Unit. Doing so may result in
fire or electric shock.
Do not touch the Light Unit with
wet hands. Doing so may result in
electric shock.
Make sure that the Light Unit is
free of moisture or any liquid.
Exposure to water may result in
fire, electric shock, or Light Unit
failure.
If abnormal condition occurs such as
fuming, heat, smell, noise, or so on,
stop using the Light Unit immediately,
turn the power off, and unplug the
power cord. A fire or electric shock
may result if the Light Unit is kept used.
Turn off the Control Unit for the LED
light when installing, unmounting or
cleaning the Light Unit. Failure to
do so may cause a pain in your eye,
impaired eyesight or electric shock.
D o not dro p t he Li ght Unit o r
subject it to impact. Doing so may
cause the Light Unit to malfunction.
Be careful of static electricity.
Damage to the LED light may
occur, if a person charged with
static electricity touches it. Keep
the product away from all items
charged with static electricity.
Due to the structure of the Light Unit, leak current may be produced as the
result of AC amplitude noise. This may cause the LEDs to radiate incorrectly.
Separate the Light Unit from sources of noise.
Do not use the Light Unit in the following situations.
• Under conditions or in an environment not described in this Instruction Guide.
• In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
• In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the Light Unit to locations with following conditions.
Incorrect installation location may cause Light Unit failure.
• I n a f l at a n d st a b l e l o c at i o n w i t h
minimal vibration.
• Well-ventilated places with minimal dust.
• Places that are not subject to sudden
temperature changes.
• Places away from water faucets, boilers, humidifiers, air conditioners, heaters, or stoves.
Ul t r avi o l e t Cu r i n g a n d
I n d u s t r i a l I n s p e c t i o n
- Read Before Use -
Indicates that incorrect
Caution
usage may result in injury
or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
Do not look at the radiating surface
of the light directly while it is turned
on. Also, do not turn it towards
DISASSEMBLY
others. Doing so may cause a pain
PROHIBITED
in the eye or impaired eyesight.
Keep the naked skin away from the
radiating surface of the light while
it is turned on. Failure to do so may
DO NOT TOUCH
WITH WET HANDS
cause a inflammation of the skin.
T h i s L i g h t U n i t g e n e r a t e s h i g h
temperatures. Do not touch the Light
Unit while it is turned on or immediately
after it is turned off, or burning may
DO NOT SUBJECT
TO MOISTURE
result. Provide cooling with a fan or
other ventilation if the Light Unit is to
be used in a closed space.
Connect or disconnect the cable
only after turning off the Control
Unit for the LED light.
Failure to do so may result in
MANDATORY
ACTIONS
circuit damage, fire caused by a
minute spark, or electric shock.
M a ke k n ow n to a l l p e r s o n n e l
concerned the risk of ultraviolet
radiation. Failure to do so may
cause incorrect handling.
MANDATORY
ACTIONS
Caution
Do not use any cable other than
the dedicated cable. Doing so
may cause malfunctioning.
PROHIBITED
Always ground the FG line. If you
do not ground the FG line, the
Light Unit may be damaged by
PROHIBITED
static electricity.
• Places free from any water, oil, liquid,
chemical, or steam.
• Places with sufficient airflow to cool the product.
• Places free from corrosive or combustible
gas.
2 Confirming Product Information
The following label is attached to the LED Light. The color of the
label indicates the luminescence color of the Light. The name label
specifies the model name, power consumption, and serial number.
Be sure to check the contents before using the product and handle
the label with care. If the label is missing or damaged and the
contents cannot be checked, please contact CCS Inc.
Radiation aperture seal (only for LNSP-UV3-FN series)
(Example)
INVISIBLE LED RADIATION APERTURE
不 可 視 L E D 放 射 の 出 口
AVOID EXPOSURE-INVISIBLE LED RADIATION IS EMITTED FROM THIS APERTURE
注 意 - こ こ か ら 不 可 視 L E D の 光 が 出 ま す
The product is provided with a
Radiation aperture seal of LED
light. In any case, do not turn ON
the LED with the aper ture for
LED emission pointing upward.
Name label (Example)
MODEL LNSP-xxxUV3-365-FN
INPUT xxA/xxW xxV xxW(FAN)
S/N 0123456789
CCS Inc. MADE IN JAPAN
3 Installation Precautions
The Light Unit may heat during irradiation.
Higher temperatures will cause the LEDs to deteriorate and
MANDATORY
reduce the output intensity. It will also shorten the service life of
ACTIONS
Caution
the Light Unit and may cause Light Unit failure. When you install
the Light Unit, observe the following precautions to keep the Light
Unit in good condition for a longer time.
MANDATORY
ACTIONS
Operating Environment
• Provide proper airflow to ensure that the temperature around
the Light Unit does not exceed the operating temperature
MANDATORY
ACTIONS range during irradiation.
• Provide sufficient space around the Light Unit so that the vent
holes and fan are not blocked.
• Make sure that the airflow does not cause the exhausted warm air
to be drawn into the Light Unit again.
MANDATORY
ACTIONS
Installation Example
MANDATORY
ACTIONS
MANDATORY
ACTIONS
MANDATORY
ACTIONS
MANDATORY
ACTIONS
Note:
• Provide at least 50 mm of space around the Light Unit. In some cases,
however, more space will be required depending on the environmental
conditions of the Light Unit.
• Do not install anything that would block the airflow in the exhaust direction.
- 1 -
50 mm or
mo re.
Label (Example)
Air intake
50 mm or
mo re.
50 mm or
mo re.
