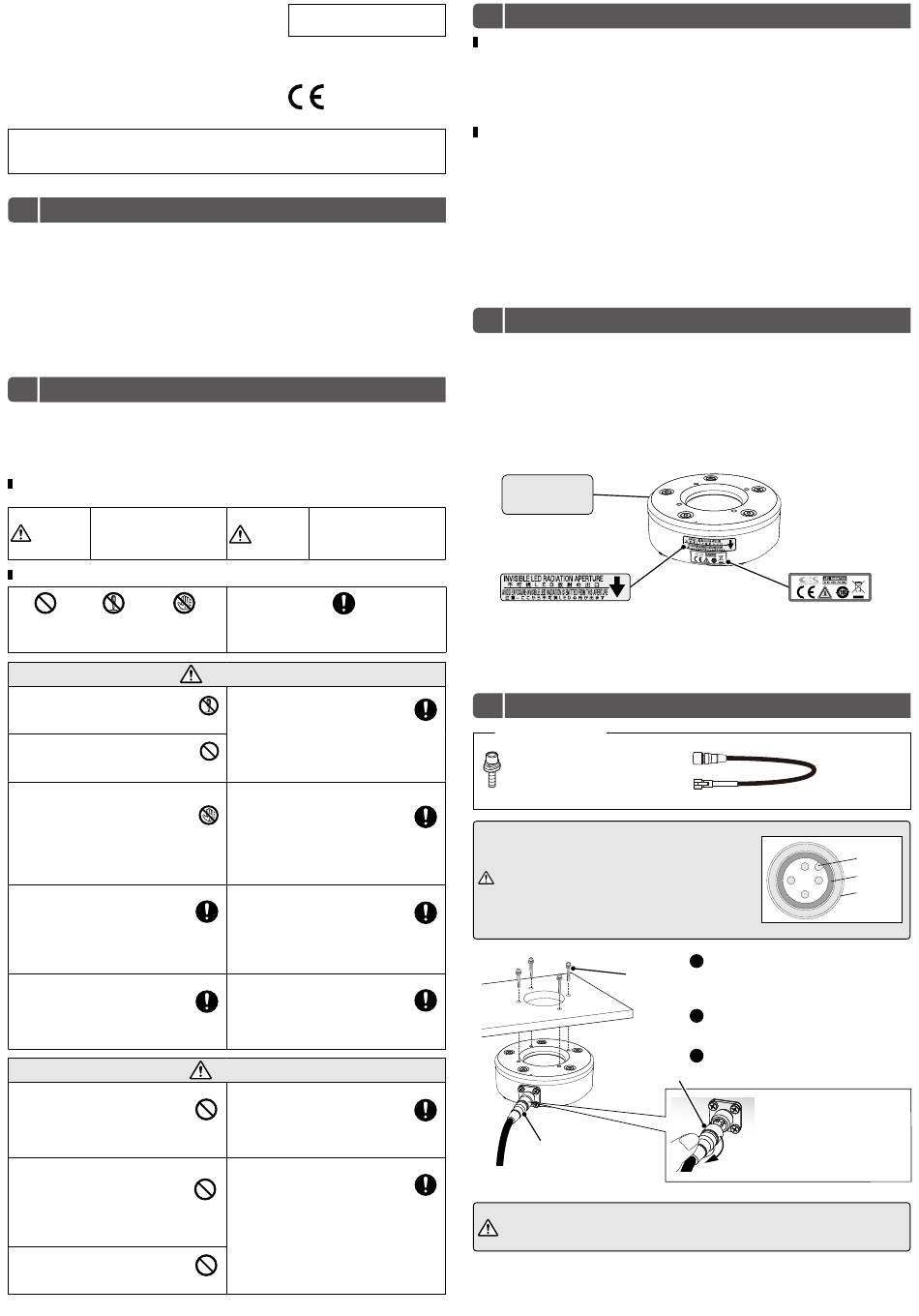

CCS HLDR-IP-UV3 Series Instruction Manual

Waterproof Ring Lights
HLDR-IP-UV3 / HLDR-IP-VL3 Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Introduction

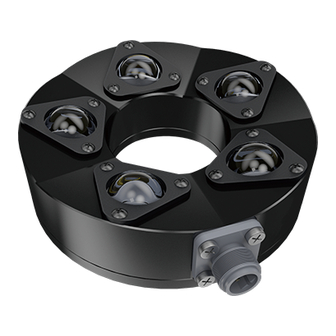

These products are LED Light Units used for machine vision and
industrial inspections.
When connected to a Dedicated Cable, the product has a protective
structure of IP67 to prevent dust and water intrusion so that you can
apply the product to wider range of environments than previous products.
However, you cannot use the product in water continuously.
2 Important Information for Equipment Safety
These products have been designed with full consideration of safety.
However, incorrect usage of the products may result in fire, electric shock,
or other serious damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
classify the relative importance of warnings and cautions.
Indicates that incorrect
Warning
u s a g e m a y r e s u l t i n
serious injury or death.
The following symbols in the instruction guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH
PROHIBITED WITH WET HANDS
These symbols indicate prohibited actions.
Do not disassemble or modify the
product. Doing so may result in
fire or electric shock.
Do not immerse the product in
water continuously. Water intrusion
may result in fire or electric shock.
Do not connect or disconnect the
Light Unit cable with wet hands.
Do not connect or disconnect the
Light Unit cable when the product
is wet. Doing so may result in
electric shock.
Connect or disconnect the light
cable only after turning off the
c ontrol unit. Failure to do so
may result in circuit damage, fire
c aused by a minute spar k, or
electric shock.
Keep the naked skin away from
the radiating surface of the light
while it is turned on. Failure to do
so may cause a inflammation of
the skin.
Do not use user-made cables. Doing
so may cause product failure. Use the
CCS extension cable if it is necessary
to extend the distance between the
light and the control unit.
Be careful of static electricity.
D amag e to t he LED li ght may
occur, if a person charged with
static electricity touches it. Keep
the product away from all items
charged with static electricity.
Do not drop the product or subject
it to impact. Doing so may cause
the product to malfunction.
LED Light for Machine Vision
a n d I n d u s t r i a l I n s p e c t i o n
- Read Before Use -
Indicates that incorrect
Caution usage may result in injury
or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED light radiation may cause
corneal or retinal abnormalities
if you look directly at the light. To
DISASSEMBLY
PROHIBITED
prevent harmful light exposure,
never look directly at the LED light.
PROHIBITED
This product generates high temperatures.
Do not touch the product while it is
turned on or immediately after it is
turned of f, or burning may result.
DO NOT TOUCH
WITH WET HANDS
Provide cooling with a fan or other
ventilation if the product is to be used
in a closed space.
If abnormal condition occurs such
a s f u m i n g, h e at , s m e l l, n o i s e,
or so on, stop using the product
MANDATORY
immediately, and turn off the power
ACTIONS
source. A fire or electric shock may
result if the product is kept used.
Turn off the power supply when
installing, unmounting or cleaning
the product. Failure to do so may
MANDATORY
cause a pain in your eye, impaired
ACTIONS
eyesight or electric shock.
Caution
Use a control unit that is suitable
for the product ratings. Using an
incorrect control unit can cause
PROHIBITED
product failure.
Use a standard Extension Cable
that is manufac tured by CC S.
However, if the cable is too long,
the light intensity will decrease due
PROHIBITED
to the DC resistance of the cable.
PROHIBITED
2 Important Information for Equipment Safety (Continued)
Do not use the product in the following situations.
• Under conditions or in an environment not described in this instruction guide.
• In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
• In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the product to locations with following conditions.
Incorrect installation location may cause product failure.
• In a flat and stable location with
minimal vibration.
• Well-ventilated places with minimal dust.
• P l a c e s f r e e f r o m c o r r o s i v e o r
combustible gas.
Note: For places where the product would be exposed to liquids other than water or
to gas, determine the installation according to the materials of the product.
For details, refer to 6. Dedicated Cable (Sold Separately) and 7. Main
Specifications and consult CCS.
3 Confirming Product Information
The following label is attached to the LED light. The color of the
label indicates the luminescence color of the product. The name
label specifies the model name, power consumption, and serial
number. Be sure to check the contents before using the product
and handle the label with care. If the label is missing or damaged
and the contents cannot be checked, please contact CCS Inc.
Name Label (Example)
MODEL HLDR-IP67-100UV3-xxx
INPUT xxV/xxW
S/N 012345-012345
CCS Inc. MADE IN JAPAN
Radiation Aperture Seal
(only for HLDR-IP-UV3 series)
(Example)
The LED Light is provided with a Radiation aperture
seal of LED light. In any case, do not turn ON the LED
with the aperture for LED emission pointing upward.
4 Installation
MANDATORY
Required Articles
ACTIONS
M4 screws (Commercially available)
Use M4 screws that are 5 mm
longer than the thickness of the
mounting surface.
MANDATORY
Handle the M12 connector on the product
ACTIONS
and the Dedicated Cable with care.
If the connector is deformed or damaged
Caution
or if the O -ring (packing) falls out of
the Dedicated Cable, electric shock or
product failure may occur due to water
intrusion during usage.
MANDATORY
ACTIONS
MANDATORY
ACTIONS
MANDATORY
ACTIONS
Dedicated cable
Refer to 6. Dedicated Cable
(Sold Separately) for details.
MANDATORY
ACTIONS
Correctly connect the Dedicated Cable to the product. Not doing so
Caution
may result in electric shock or product failure due to water intrusion.
- 1 -
• Places with sufficient airflow to cool the product.
• Places that are not subject to sudden
temperature changes.
• Places free from oil, liquid, or chemicals that
would affect the materials of the product.
Label (Example)
Adjust the position of the notch, and then
1
M4 screw insert the M12 connector of the dedicated
cable straightforwardly.
S c r e w o n t h e c a p t o s e c u r e t h e
2
connector.
3 Fix the product to the place with M4 screws.
Cap
Inser t the socket all the
way into the connector.
T i g h t e n t h e c a p a l l
t h e w a y t o t h e e n d
(torque: 0.39 to 0.49 N·m).
Dedicated cable
(Sold separately)
Notch
O-ring
Cap
