CCS LFV-G-PF Series Instruction Manual

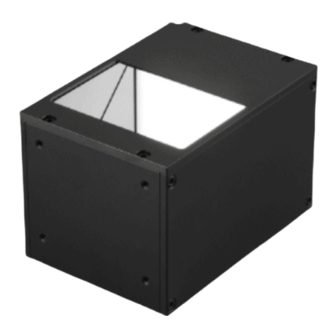

High Power Strobe Coaxial Lights
LF V- G - PF Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
These products have been designed with full consideration of safety.
However, incorrect usage of the products may result in fire, electric shock,
or other serious damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
classify the relative importance of warnings and cautions.
I n di c ate s t h at i nc o r r e c t
Warning
usage may result in serious
injury or death.
The following symbols in the Instruction Guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
TO MOISTURE
PROHIBITED WITH WET HANDS
These symbols indicate prohibited actions.
Do not disassemble or modify the
Light Unit. Doing so may result in
fire or electric shock.
Do not touch the Light Unit with
wet hands. Doing so may result in
electric shock.
Make sure that the Light Unit is free
of moisture or any liquid. Exposure
to water may result in fire or electric
shock.
These Light Units generate high
temperatures. Do not touch the Light
Unit while it is turned on or immediately
after it is turned off, or burning may
result. Provide cooling with a fan or
other ventilation if the Light Unit is to
be used in a closed space.
Do not use user-made cables.
Doing so may cause Light Unit
failure. Use the CCS extension
cable if it is necessary to extend
the distance between the Light
Unit and the Control Unit.
Be careful of static electricit y.
Damage to the LED light may
occur, if a person charged with
static electricity touches it. Keep
the Light Unit away from all items
charged with static electricity.
Do not use the Light Unit in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the Light Unit to locations with following conditions.
Incorrect installation location may cause Light Unit failure.
In a flat and stable location with
minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden
temperature changes.
LED Light for Machine Vision
and Industrial Inspection
- Read Before Use -
Indic ates that inc or rect
Caution
usage may result in injury
or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED li g ht r adi at i o n m ay c aus e
corneal or retinal abnormalities
if you look directly at the light. To
DISASSEMBLY
prevent harmful light exposure,
PROHIBITED
never look directly at the LED light.
To use the Light Unit, connect it to
a High Power Strobe Control Unit
from CCS. Using any power supply
other than a High Power Strobe
DO NOT TOUCH
WITH WET HANDS
Control Unit may result in fire or
Light Unit failure.
Connect or disconnect the light
cable only after turning off the High
Power Strobe Control Unit. Failure
to d o s o m ay r e s u l t i n c i r c u i t
DO NOT SUBJECT
TO MOISTURE damage, fire caused by a minute
spark, or electric shock.
If abnormal condition occurs such
as fuming, heat, smell, noise, or
so on, stop using the Light Unit
immediately, turn OFF the Control
MANDATORY
Unit and unplug the power cord. A
ACTIONS
fire or electric shock may result if
the Light Unit is kept used.
Caution
D o n ot dr o p t h e Li g ht U ni t o r
subjec t it to impac t. D oing so
m a y c a u s e t h e L i g h t U n i t t o
PROHIBITED
malfunction.
U s e t h e H i g h P o w e r S t r o b e
Extension Cables (5 m or shorter).
However, if the cable is too long,
the light intensity will decrease due
PROHIBITED
to voltage drop caused by the DC
resistance of the cable.
Places free from any water, oil, liquid,
chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers,
humidifiers, air conditioners, heaters, or stoves.
2 Confirming Product Information
The following tag is attached to the cable on the LED Light. The
color of the label indicates the luminescence color of the Light. The
back of the tag there is a name label that gives the model number,
peak current, and serial number.
Be sure to check the contents before using the product and handle
the label with care. If the label is missing or damaged and the
contents cannot be checked, please contact CCS Inc.
3 Operating Instructions
Make sure that the High Power Strobe Control Unit is turned OFF before
you connect the Light Unit.
MANDATORY
ACTIONS
Connect the light cable to a High Power Strobe Control Unit.
1
• Connect the light cable to a High Power Strobe Control Unit. The High Power Strobe
Control Unit must be equipped with ELR-04NV connectors for power output.
• Insert the plug all the way into the connector.
MANDATORY
• High Power Strobe Extension Cables are available for the Light Units (FCB-PF
ACTIONS
Series, sold separately).
For information on High Power Strobe Control Unit and Extension Cables, refer to
the instruction guide for the High Power Strobe Control Unit.
Turn ON the High Power Strobe Control Unit, and then turn ON
2
MANDATORY
ACTIONS
the Light Unit.
Adjust the Light Unit position and radiant quantity to optimize images.
3
MANDATORY
ACTIONS
MANDATORY
ACTIONS
PROHIBITED
Use the Light Unit within the lighting conditions (maximum strobe time
and maximum duty cycle*). Exceeding the lighting conditions, such as
performing continuous lighting using a power supply other than a High
Warning
Power Strobe Control Unit, may result in fire or Light Unit failure.
For the lighting conditions, refer to 5. Main Specifications.
* The duty cycle is the strobe operation ratio expressed by the following equation:
MANDATORY
ACTIONS
Duty cycle (%) = 100 X Strobe time/Strobe cycle
For example, if you want to restrict the duty cycle to 1% or less when the strobe time
is 50 μs, you must make the Light Unit flash with a cycle of 5 ms or longer.
Not lit.
Light Unit status
Strobe time (50 μs)
- 1 -
Tag Example
Front
Back
Camera
LFV-G-PF series
Inspection object
- Conceptual Diagram -
Strobe cycle (5 ms min.)
Lit. Not lit. Lit.
M O D E L L F V - G - P F - n n R D
I N P U T 4 8 V / n n A
S / N 0 1 2 3 4 5 6 7 8 9
M a n u f a c t u r e r : C C S I n c .
3 7 4 O k a k u e n c h o , K a m i g y o - k u ,
K y o t o 6 0 2 - 8 0 1 1 , J a p a n
E U I m p o r t e r : C C S E u r o p e N . V .
B e r g e n s e s t e e n w e g 4 2 1 B ,
1 6 0 0 S i n t - P i e t e r s - L e e u w , B e l g i u m
M A D E I N J A P A N
Not lit. Lit.
