CCS LFV3-G Series Instruction Manual

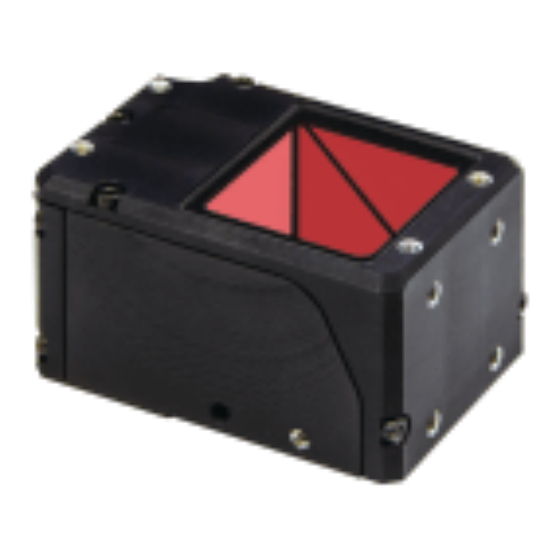

Coaxial Lights
LF V3 - G Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
1 Important Information for Equipment Safety
This product has been designed with full consideration of safety.
However, incorrect usage of the product may result in fire, electric shock,
or other serious damages. Please ensure to follow the conditions below.
The following symbols are used in this instruction guide to indicate and
classify the relative importance of warnings and cautions.
Indicates that incorrect
Warning u s a g e m a y r e s u l t i n
serious injury or death.
The following symbols in the instruction guide indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions.
Do not disassemble or modify the
Light Unit. Doing so may result in
fire or electric shock.
Do not touch the Light Unit with
wet hands. Doing so may result in
electric shock.
Make sure that the Light Unit is
free of moisture or any liquid.
Exposure to water may result in
fire, electric shock.
If abnormal condition occurs such as fuming, heat, smell, noise, or so on,
stop using the Light Unit immediately, and turn off the power source.
A fire or electric shock may result if the Light Unit is kept used.
Do not use user-made cables.
Doing so may cause Light Unit
failure. Use the CCS extension
cable if it is necessary to extend
the distance between the Light
Unit and the Control Unit.
Be careful of static electricity.
Damage to the LED light may
occur, if a person charged with
static electricity touches it. Keep
the Light Unit away from all items
charged with static electricity.
D o n o t d r o p t h e L i g h t U n i t o r
subject it to impact. Doing so may
cause the Light Unit to malfunction.
Do not use the Light Unit in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the Light Unit to locations with following conditions.
Incorrect installation location may cause Light Unit failure.
In a f lat and stable loc ation with
minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden
temperature changes.
LED Light for Machine Vision
and Industrial Inspection
- Read Before Use -
Indicates that incorrect
Caution usage may result in injury
or property damage.
MANDATORY
ACTIONS
This symbol indicates required actions.
Warning
LED light radiation may cause
corneal or retinal abnormalities
if you look directly at the light. To
DISASSEMBLY
prevent harmful light exposure,
PROHIBITED
never look directly at the LED light.
This Light Unit generates high
temperatures. Do not touch the
product while it is turned on or
DO NOT TOUCH
immediately after it is turned off,
WITH WET HANDS
or burning may result. Provide
c o o l i n g w i t h a f a n o r o t h e r
ventilation if the product is to be
used in a closed space.
Connect or disconnect the light
cable only after turning off the
power source. Failure to do so
may result in circuit damage, fire
DO NOT SUBJECT
TO MOISTURE
caused by a minute spark, or
electric shock.
Caution
Use a Control Unit that is suitable
for the Light Unit ratings. Using
an incorrect Control Unit can
cause Light Unit failure.
PROHIBITED
Use a standard Extension Cable
that is manufactured by CCS.
However, if the cable is too long,
PROHIBITED
the light intensity will decrease
due to voltage drop caused by
the DC resistance of the cable.
PROHIBITED
Places free from any water, oil, liquid,
chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers,
humidifiers, air conditioners, heaters, or
stoves.
2 Confirming Product Information
The following tag is attached to the cable on the LED Light. The
color of the label indicates the luminescence color of the Light. The
back of the tag there is a name label that gives the model number,
power consumption, and serial number.
Be sure to check the contents before using the product and handle
the label with care. If the label is missing or damaged and the
contents cannot be checked, please contact CCS Inc.
3 Operating Instructions
Connect the light cable of the
1
product to the Control Unit.
MANDATORY
ACTIONS
C o n n e c t t o t h e C o n t r o l U n i t
e q u i p p e d w i t h S M P- 0 3 V- B C
Connectors for power output.
For information on applicable
MANDATORY
Control Units and cables, refer
ACTIONS
to the product catalogs or the
CCS website.
2 Turn ON the Control Unit
to turn ON the light.
MANDATORY
ACTIONS
Read the instruction guide of the
Control Unit before use.
MANDATORY
ACTIONS
Adjust the Light Unit position
3
a n d r a d i a n t q u a n t i t y t o
optimize images.
Precautions
MANDATORY
ACTIONS
• Ghost images (double vision) of the inspection object may
appear due to reflection from the half mirror inside the light.
It is impossible to remove these images because of the
characteristics of the light.
MANDATORY
• Dust, dirt, or fingerprints on the glass portions of the light may
ACTIONS
affect the captured image. In that case, clean the light as follows:
• Remove dust and dirt by blowing it off with air. Do not touch
the light with your hand.
• Use a soft, finely woven cloth to wipe away any marks, such
as fingerprints.
• Use a soft, finely woven cloth soaked with diluted neutral
detergent to remove any heavy dirt.
Also, handle the light with care during daily use. Make sure no
dust, dirt, or fingerprints adhere to the light.
- 1 -
Tag Example
Front
Back
The above illustration is of the LFV3-G-35-series Light Unit.
Make sure that the Control Unit is
turned OFF before connecting.
MANDATORY
ACTIONS
Inser t the plug all the
way into the connector.
Control Unit
M O D E L L F V 3 - G - n n R D
I N P U T 2 4 V = n . n W
S / N 0 1 2 3 4 5 6 7 8 9
M a n u f a c t u r e r : C C S I n c .
3 7 4 O k a k u e n c h o , K a m i g y o - k u ,
K y o t o 6 0 2 - 8 0 1 1 , J a p a n
E U I m p o r t e r : C C S E u r o p e N . V .
B e r g e n s e s t e e n w e g 4 2 1 B ,
1 6 0 0 S i n t - P i e t e r s - L e e u w , B e l g i u m
M A D E I N J A P A N
Camera
LFV3-G
series
Inspection object
- Conceptual Diagram -
