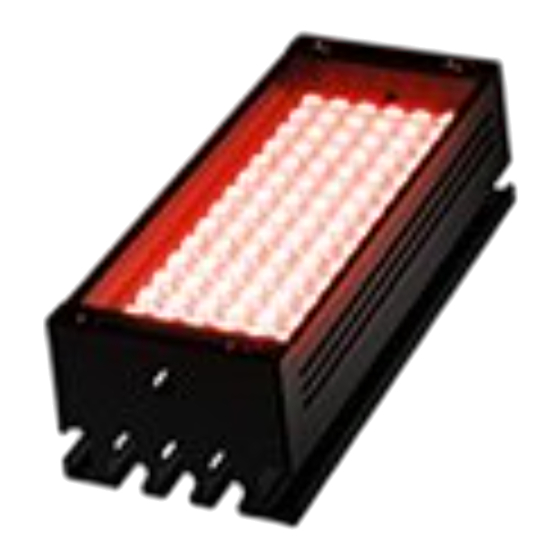

CCS LDL2 Series Operation Manual

LED Lights for Machine Vision
and Industrial Inspections
Operation Guide for Optional Products
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this operation guide before use and keep it for your future reference.
• These optional products are designed for use with the LDL2 Series. Do not install these
optional products on Light Units from any other series. Conform applicable models and use
the Light Unit correctly.
• Two or more options of diffusion plates, polarizing plates, and protective plates cannot be
used for a Light Unit at the same time.
• Periodically inspect optional products such as polarization and diffusion plates as all of
these are consumables. Replace any products that show discoloration or deformation
during inspection. CCS recommends maintaining extra optional products on-hand in order
to be prepared for replacement.
1 Lineup
Diffusion Plates DF-LDL2 Series
1
Diffuses direct light. This enables uniform lighting
of inspection object.
Polarizing Plates PL-LDL2 Series
2
Light is linearly polarized. Prevent light reflection
by using the polarizing plate together with the
polarizing filter (PL Series) mounted to the lens.
3 Protective Plates CV-LDL2 Series
Protects the light-emitting part of the Light Unit.
Note: It is not available to use this product for protection use
from any damages caused by dust, water and etc.
4 Brackets
(Set of two brackets)
This brackets with the adjustable setting of the
irradiation angle.
5 Brackets BK-LDQ2 Series
This bracket can be used to mount four Bar Lights.
The irradiation angle is adjustable.
LDL2 Series
Model name
DF-LDL2-41X16
DF-LDL2-80X16
DF-LDL2-119X16
DF-LDL2-158X16
DF-LDL2-26X30
DF-LDL2-50X30
DF-LDL2-74X30
DF-LDL2-98X30
DF-LDL2-122X30
DF-LDL2-146X30
DF-LDL2-218X30
DF-LDL2-266X30
Model name
PL-LDL2-41X16-△△
PL-LDL2-80X16- - △△
PL-LDL2-119X16-△△
PL-LDL2-158X16-△△
PL-LDL2-26X30-△△
PL-LDL2-50X30-△△
PL-LDL2-74X30-△△
PL-LDL2-98X30-△△
PL-LDL2-122X30-△△
PL-LDL2-146X30-△△
PL-LDL2-218X30-△△
PL-LDL2-266X30-△△
= "Model none" or "VE"
Refer to the above article: Description of Model
Names.
Model name
CV-LDL2-41X16
CV-LDL2-80X16
CV-LDL2-119X16
CV-LDL2-158X16
CV-LDL2-26X30
CV-LDL2-50X30
CV-LDL2-74X30
CV-LDL2-98X30
CV-LDL2-122X30
CV-LDL2-146X30
CV-LDL2-218X30
CV-LDL2-266X30
BK-LDL2
Model name
BK-LDL2
Accessories
M3 screws
(8 screws + 1 spare screw)
Model name
BK-LDQ2-41X16
BK-LDQ2-80X16
BK-LDQ2-119X16
BK-LDQ2-158X16
BK-LDQ2-74X30
BK-LDQ2-98X30
BK-LDQ2-122X30
BK-LDQ2-146X30
BK-LDQ2-218X30
BK-LDQ2-266X30
Accessories
M3 screws
(16 screws)
Description of Model Names
Diffusion Plates, Polarizing Plates, and Protective Plates
- L D L 2-
Option name
DF: Diffusion plate
PL: Polarizing plate
CV: Protective plate
Separate Brackets
B K- L D L 2
Note: The separate brackets are not applicable for the LDL2-19X4 and LDL2-33X8 series.
Allowable
Diffusion Plates
6
temperature limit
Diffuses direct light. This enables uniform lighting of
inspection object.
80℃
Note: The Diffusion Plate cannot be used for an Infrared Light.
Allowable
temperature limit
Polarizing Plates
7
Light is linearly polarized. Prevent light reflection by using
the polarizing plate together with the polarizing filter (PL
Series) mounted to the lens.
60℃
Note: The Polarizing Plate cannot be used for an Infrared Light.
Allowable
8 Bracket BK-LDQ2-33X8
temperature limit
This bracket can be used to mount four Bar Lights.
The irradiation angle is adjustable.
80℃
Allowable
temperature limit
-
Allowable
temperature limit
-
- 1 -
X -
Model number Polarizing direction (for Polarizing plate)
HO or Model none:
of the applicable
Light is polarized parallel to the longer edge of the plate.
model
VE:
Light is polarized parallel to the shorter edge of the plate.
Integrated Brackets
B K- L D Q 2-
DF-LDL2-19X4, DF-LDL2-33X8
DF-LDL2-19X4
DF-LDL2-33X8
PL-LDL2-19X4, PL-LDL2-33X8
PL-LDL2-19X4-
PL-LDL2-33X8-
Refer to the above article: Description of
Model Names.
BK-LDQ2-33X8
X
Light Unit size
Allowable
Model name
temperature limit
60°C
Accessories
M2x6 low-head screws
(2 screws + 1 spare screw)
Allowable
Model name
temperature limit
60°C
= "HO" or "VE"
Accessories
M2x6 low-head screws
(2 screws + 1 spare screw)
Allowable
Model name
temperature limit
-
Accessories
M2x5 screws
M2 washers
(8 each + 1 spare screw)
