CCS LFV-PF Series Instruction Manual

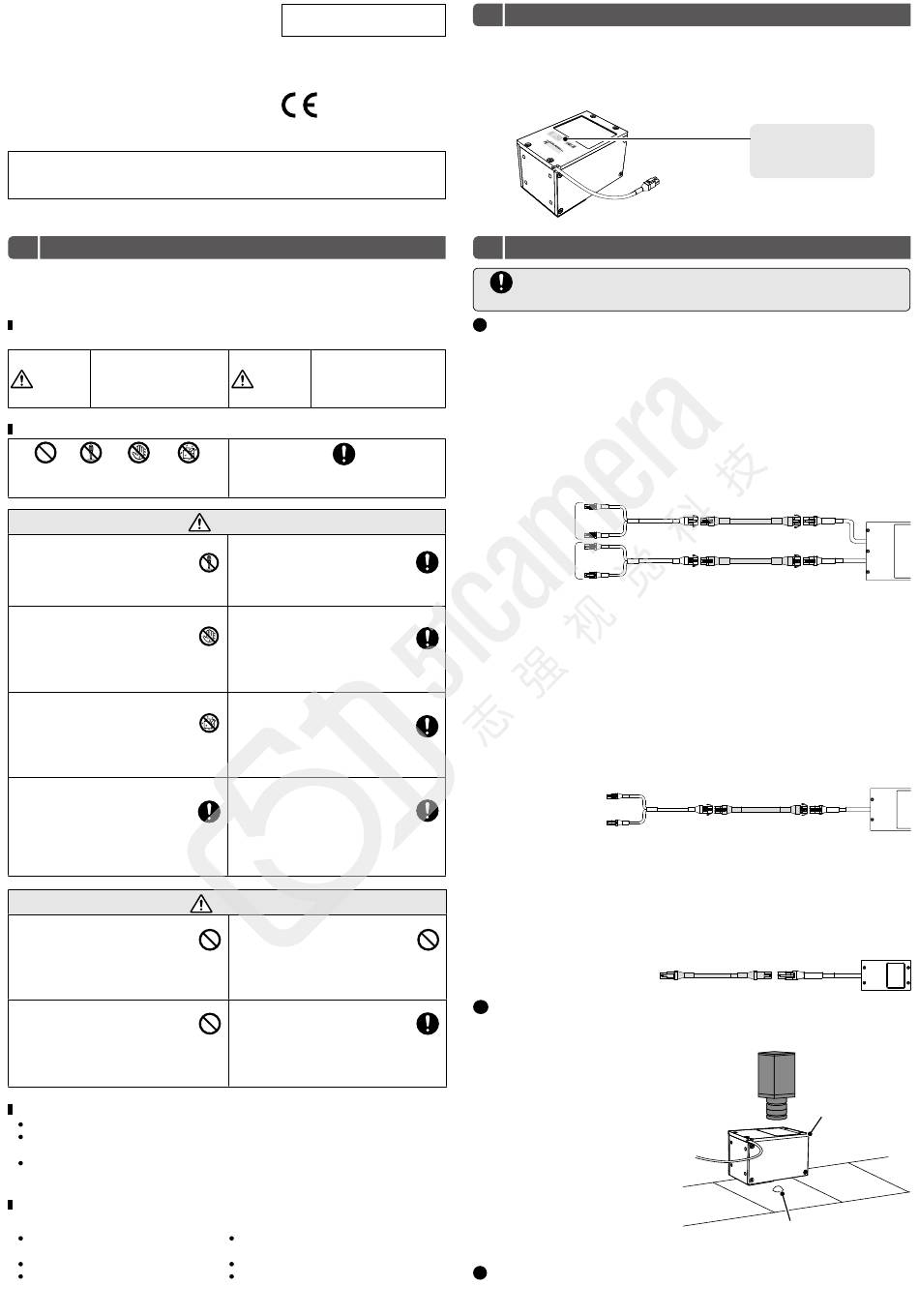

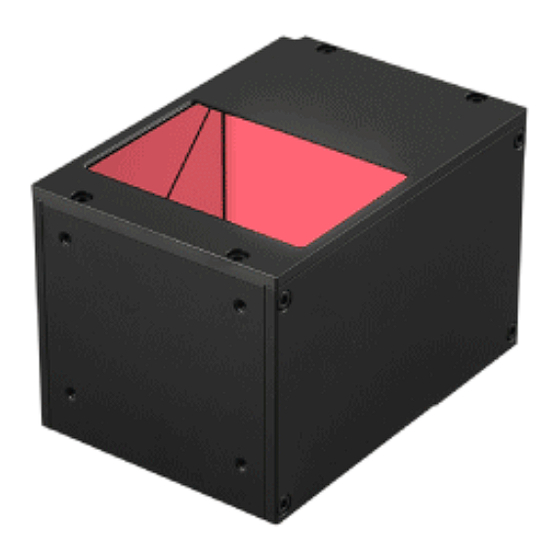

High Power Strobe Coaxial Lights
LFV-PF
Series
Instruction Guide
Thank you for purchasing a CCS product. To ensure proper use of the product,
please read this instruction guide before use and keep it for your future reference.
2 Important Information for Equipment Safety
These products have been designed with full consideration of safety.
However, incorrect usage of the products may result in fire, electric shock,
or other serious damages. Please ensure to follow the conditions below.
The following symbols are used in this document to indicate and classify the
relative importance of warnings and cautions.
Indicates that incorrect
Warning u s a g e m a y r e s u l t i n
serious injury or death.
The following symbols in the document indicate and classify the precautions.
PROHIBITED DISASSEMBLY DO NOT TOUCH DO NOT SUBJECT
PROHIBITED WITH WET HANDS TO MOISTURE
These symbols indicate prohibited actions. This symbol indicates required actions.
Do not disassemble or modify the
Light Unit. Doing so may result in
fire or electric shock.
Do not touch the Light Unit with
wet hands. Doing so may result in
electric shock.
Make sure that the Light Unit is
free of moisture or any liquid.
Exposure to water may result in
fire or electric shock.
T h i s L i g h t U n i t g e n e r a t e s h i g h
temperatures. Do not touch the Light
Unit while it is turned on or immediately
after it is turned off, or burning may
result. Provide cooling with a fan or
other ventilation if the Light Unit is to
be used in a closed space.
Do not use user-made cables. Doing
so may cause Light Unit failure. Use
the High Power Strobe Extension
Cable from CCS if it is necessary
to extend the distance between the
Light Unit and the Control Unit.
Be careful of static electricit y.
Damage to the LED Light Unit may
occur, if a person charged with
static electricity touches it. Keep
the Light Unit away from all items
charged with static electricity.
Do not use the product in the following situations.
Under conditions or in an environment not described in this instruction guide.
In nuclear energy control systems, railroad systems, aviation systems, vehicles,
combustion equipment, medical equipment, amusement machines, or safety equipment.
In applications involving serious risk to life or property, particularly applications
demanding a high level of safety.
Please install the product to locations with following conditions.
Incorrect installation location may cause product failure.
In a f lat and stable loc ation with
minimal vibration.
Well-ventilated places with minimal dust.
Places that are not subject to sudden
temperature changes.
LED Light for Machine Vision
a n d I n d u s t r i a l I n s p e c t i o n
- Read Before Use -
Indicates that incorrect
u s a g e m a y r e s u l t i n
Caution
i n j u r y o r p r o p e r t y
damage.
MANDATORY
ACTIONS
Warning
LED light radiation may cause
corneal or retinal abnormalities
if you look directly at the light. To
prevent harmful light exposure,
DISASSEMBLY
PROHIBITED
never look directly at the LED light.
To use the Light Unit, connect it
to a High Power Strobe Control
Unit from CCS. Using any power
supply other than a High Power
DO NOT TOUCH
WITH WET HANDS
Strobe Control Unit may result in
fire or Light Unit failure.
Connect or disconnect the light
cable only after turning of f the
High Power Strobe Control Unit.
Failure to do so may result in
DO NOT SUBJECT
TO MOISTURE
circuit damage, fire caused by a
minute spark, or electric shock.
If abnormal condition occurs such as
fuming, heat, smell, noise, or so on,
stop using the Light Unit immediately,
turn the High Power Strobe Control
MANDATORY
ACTIONS Unit off, and unplug the power cord.
A fire or electric shock may result if
the Light Unit is kept used.
Caution
D o n ot dr o p t h e Li g ht U nit o r
subjec t it to impac t. Doing so
m a y c a u s e t h e L i g h t U n i t t o
PROHIBITED
malfunction.
U s e t h e H i g h P o w e r S t r o b e
Extension Cable (5 m or shorter).
However, if the cable is too long,
PROHIBITED
the light intensity will decrease
due to voltage drop caused by the
DC resistance of the cable.
Places free from any water, oil, liquid,
chemical, or steam.
Places free from corrosive or combustible gas.
Places away from water faucets, boilers,
humidifiers, air conditioners, heaters, or
stoves.
2
Confirming Product Information
The following label is attached to the LED Light Unit. The name label
specifies the model name, peak current, and serial number. Be sure to
check the contents before using the Light Unit and handle the label with
care. If the label is damaged and the contents cannot be checked, please
contact CCS Inc.
3 Operating Instructions
Make sure that the High Power Strobe Control Unit is turned OFF before
you connect the Light Unit.
MANDATORY
ACTIONS
Connect the light cables to a High Power Strobe Control Unit.
1
For the LFV-PF-100-series Light Units
• Connect the light cables to a High Power Strobe Control Unit, PF-A16048-4.
• Use two 2-branch cables that come with the Light Unit and connect the Light Unit
and a High Power Strobe Control Unit. Connect both of the 4-pin connectors of the
2-branch cable to the output connectors that supply power on the same channel of a
Control Unit. For example, connect one 2-branch cable to two L1 output connectors
and the other to two L2 output connectors on a Control Unit.
• Insert the plug all the way into the connector.
• Dedicated Extension Cables are optionally available for the Light Units. For details,
refer to 5. Dedicated Extension Cables FCB-PF-EL9 Series (Sold Separately).
2-branch Cables
(Accessories)
(To L1)
(To L2)
MANDATORY
ACTIONS
PF-A16048-4 Control Unit side, 4 pins
For the LFV-PF-70-series Light Units
• Connect the light cable to a High Power Strobe Control Unit. The High Power Strobe
Control Unit must be equipped with ELR-04NV connectors for power output.
• Use a 2-branch cable that comes with the Light Unit and connect the Light Unit
MANDATORY
ACTIONS
and a High Power Strobe Control Unit. Connect both of the 4-pin connectors of the
2-branch cable to the output connectors that supply power on the same channel of a
Control Unit. For example, connect the 4-pin connectors to the L1-1 and L1-2 output
connectors on a PF-A4048-2 Control Unit.
• Insert the plug all the way into the connector.
• Dedicated Extension Cables are optionally available for the Light Units. For details,
MANDATORY
refer to 5. Dedicated Extension Cables FCB-PF-EL9 Series (Sold Separately).
ACTIONS
Control Unit side
4 pins
MANDATORY
(To the same channel)
ACTIONS
For the LFV-PF-35- or LFV-PF-50-series Light Units
• Connect the light cable to a High Power Strobe Control Unit. The High Power Strobe
Control Unit must be equipped with ELR-04NV connectors for power output.
• Insert the plug all the way into the connector.
• High Power Strobe Extension Cables (FCB-PF Series, sold separately) are available
for the Light Units. For details, refer to the instruction guide for the High Power Strobe
Control Unit.
PROHIBITED
2 Turn ON the High Power Strobe
Control Unit, and then make the
Light Unit flash.
MANDATORY
ACTIONS
For the LFV-PF-100 Light Units
Set one of the TRG - LI N K1 to 4
items on the COM menu of the PF-
A160 48 - 4 Control Unit. You can
make the Light Unit circuits on two
channels flash at the same time
linked to a trigger signal that is input
through one of the pins in the trigger
input connector.
Example)
Setting of TRG-LINK1: 12- -
W h e n a t r i g g e r s i g n a l i s i n p u t
through pin 1 in the trigger input
connector, the Light Unit circuits on
the L1 and L2 channels will flash at
the same time.
Adjust the Light Unit position
3
and radiant quantity to optimize
images.
- 1 -
Name label (Example)
MODEL
Sel.No.
Power
CCS Inc.
Dedicated Extension Cables
(FCB-PF-EL9 Series, Sold Separately)
9 pins
2-branch Cable
Dedicated Extension Cable
(Accessory)
(FCB-PF-EL9 Series, Sold Separately)
9 pins
Dedicated Extension Cable
(FCB-PF Series, Sold Separately)
Control Unit side
4 pins
LFV-PF-nnSW
012345-012345
48V/nnA
MADE IN JAPAN
9 pins
9 pins
4 pins
LFV-PF Series
Inspection object
- Conceptual Diagram -
