Installation
2.

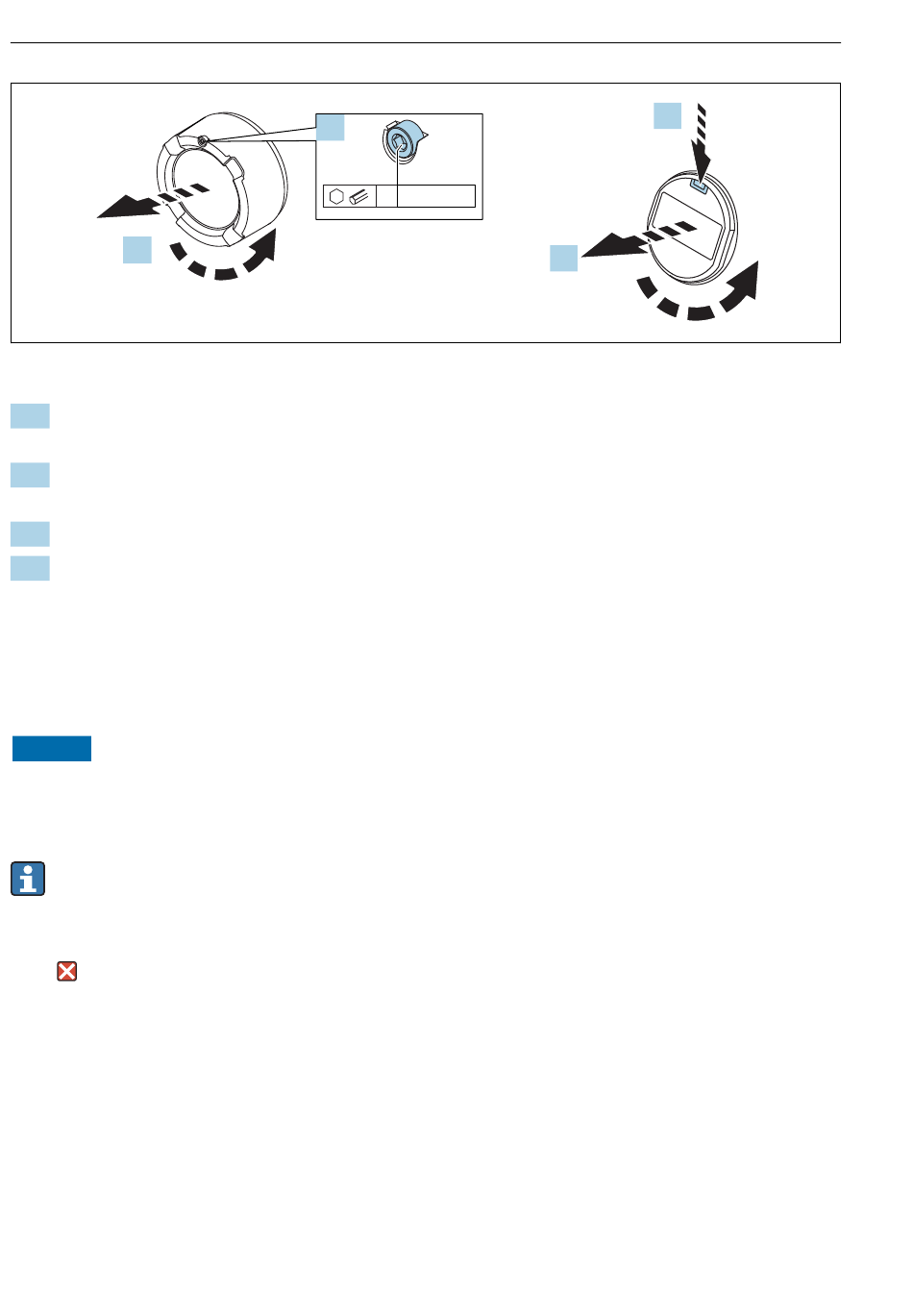

1. If fitted: release the screw of the cover lock for the electronics compartment cover using
the Allen key.
2. Unscrew the electronics compartment cover from the transmitter housing and check the
cover seal.
3. Press the release mechanism and remove the display module.
4. Turn the display module to the desired position: maximum 4 × 90 ° in each direction. Fit
the display module on the electronics compartment in the desired position until it clicks
into place. Screw the electronics compartment cover back onto the transmitter housing.
If fitted: tighten the screw of the cover lock using the Allen key 0.7 Nm (0.52 lbf ft)
±0.2 Nm (0.15 lbf ft).
11.3.7 Closing the housing covers
NOTICE
Thread and housing damaged from dirt!
‣
Remove dirt (e.g. sand) on the cover and housing thread.
‣
If you encounter resistance when closing the cover, check the thread for dirt and clean it.
Housing thread
The threads of the electronics and connection compartment can be coated with an anti-
friction coating.
The following applies for all housing materials:
Do not lubricate the housing threads.
11.4

Post-mounting check

 Is the device free from damage (visual inspection)?
 Are the measuring point identification and labeling correct (visual inspection)?
 Is the measuring device protected against precipitation and sunlight?
14
1.
4 0.7 Nm
Micropilot FMR60B HART
3.
4.
