Endress+Hauser Micropilot FMR60B Brief Operating Instructions page 23

Micropilot FMR60B HART
Dual compartment housing; 4 to 20 mA HART + 4 to 20 mA analog (optional)

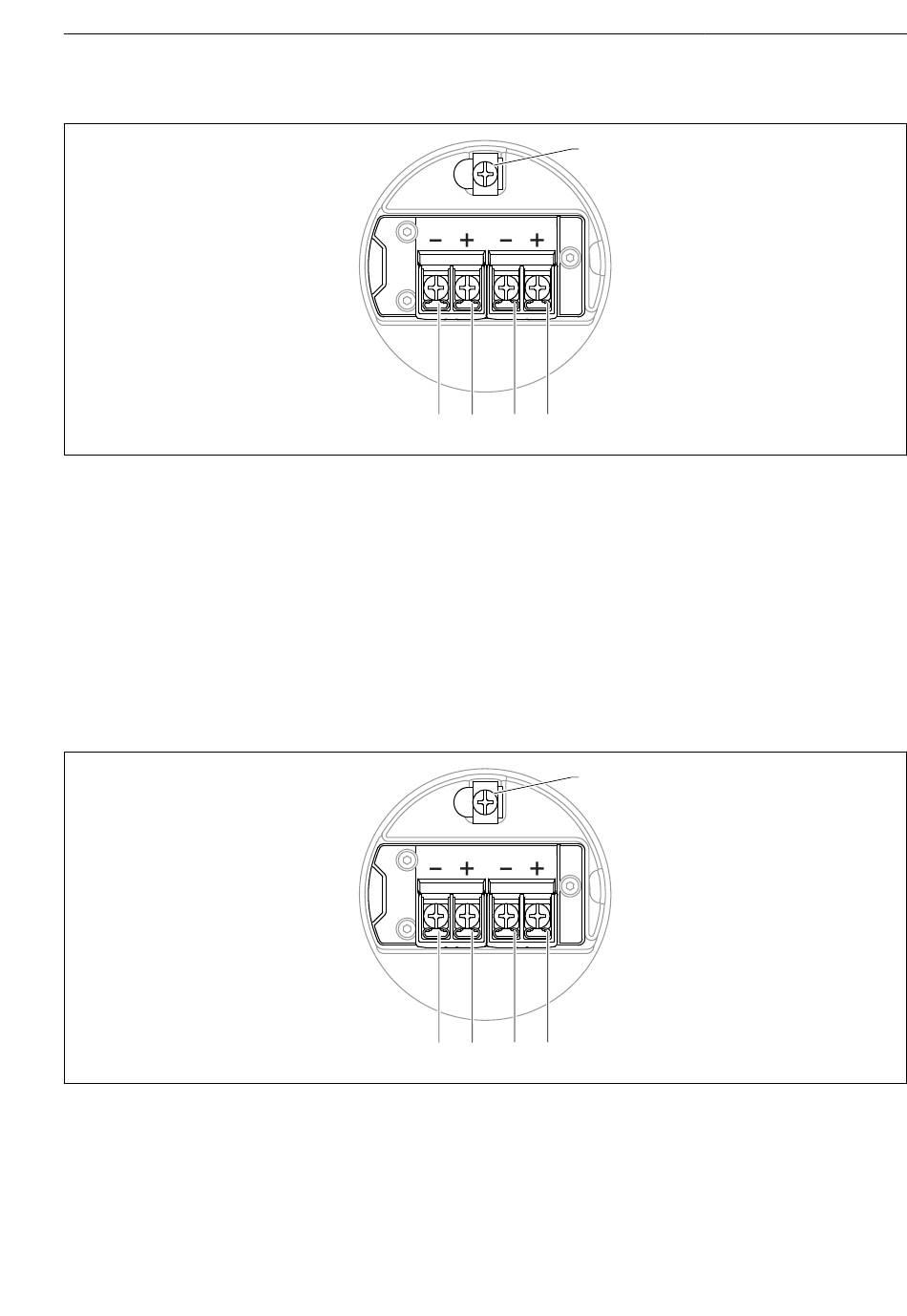

 10 Terminal assignment in connection compartment; 4 to 20 mA HART + 4 to 20 mA analog; dual
compartment housing
1 Plus terminal 4 to 20 mA HART (current output 1)
2 Minus terminal 4 to 20 mA HART (current output 1)
3 Plus terminal 4 to 20 mA analog (current output 2)
4 Minus terminal 4 to 20 mA analog (current output 2)
5 Internal ground terminal
Dual compartment housing; 4 to 20 mA HART, switching output (optional)
 11 Terminal assignment in connection compartment; 4 to 20 mA HART, switching output, dual
compartment housing
1 Plus terminal 4 to 20 mA HART (current output 1)
2 Minus terminal 4 to 20 mA HART (current output 1)
3 Plus terminal switching output (open collector)
4 Minus terminal switching output (open collector)
5 Internal ground terminal
Endress+Hauser
5
4 3 2 1
5
4 3 2 1
Electrical connection
A0054875
A0054875
23
