7 →
‣

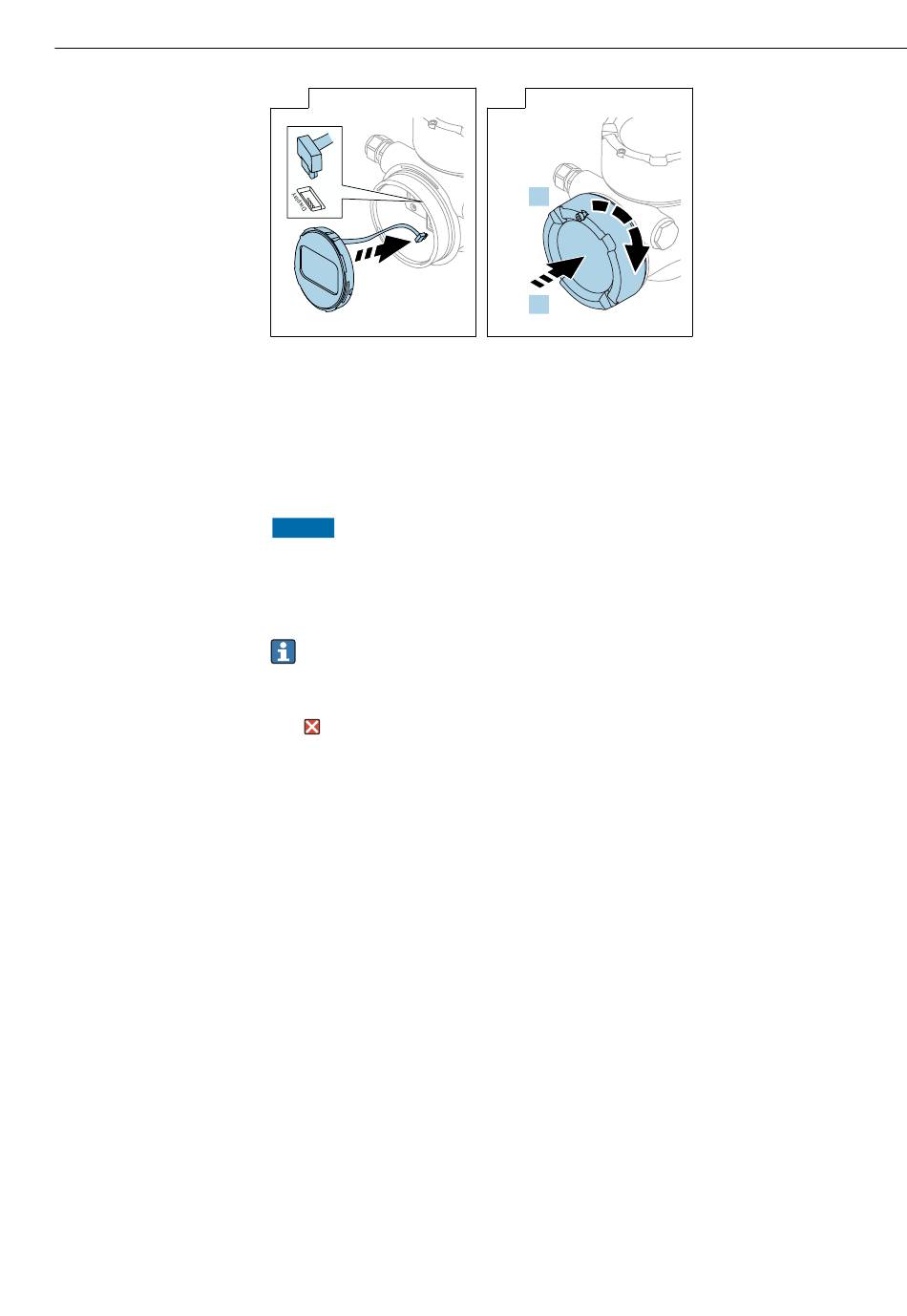

Plug in the connection for the
display module in the
connection compartment.
‣
Fit the display module in the
desired position until it clicks
into place.
5.3.8

Closing the housing covers

NOTICE
Thread and housing damaged from dirt!
‣
Remove dirt (e.g. sand) on the cover and housing thread.
‣
If you encounter resistance when closing the cover, check the thread for dirt and clean
it.
Housing thread
The threads of the electronics and connection compartment can be coated with an
anti-friction coating.
The following applies for all housing materials:
Do not lubricate the housing threads.
5.4

Post-mounting check

 Is the device free from damage (visual inspection)?
 Are the measuring point identification and labeling correct (visual inspection)?
 Is the measuring device protected against precipitation and sunlight?
 Are the securing screws and cover lock tightened securely?
 Does the measuring device comply with the measuring point specifications?
For example:
•  Process temperature
•  Process pressure
•  Ambient temperature
•  Measuring range
8
2.
1.
A0048406
‣
Screw the display cover firmly
back onto the housing. If fitted:
tighten the screw of the cover
lock using the Allen key
0.7 Nm (0.52 lbf ft).
A0046928
