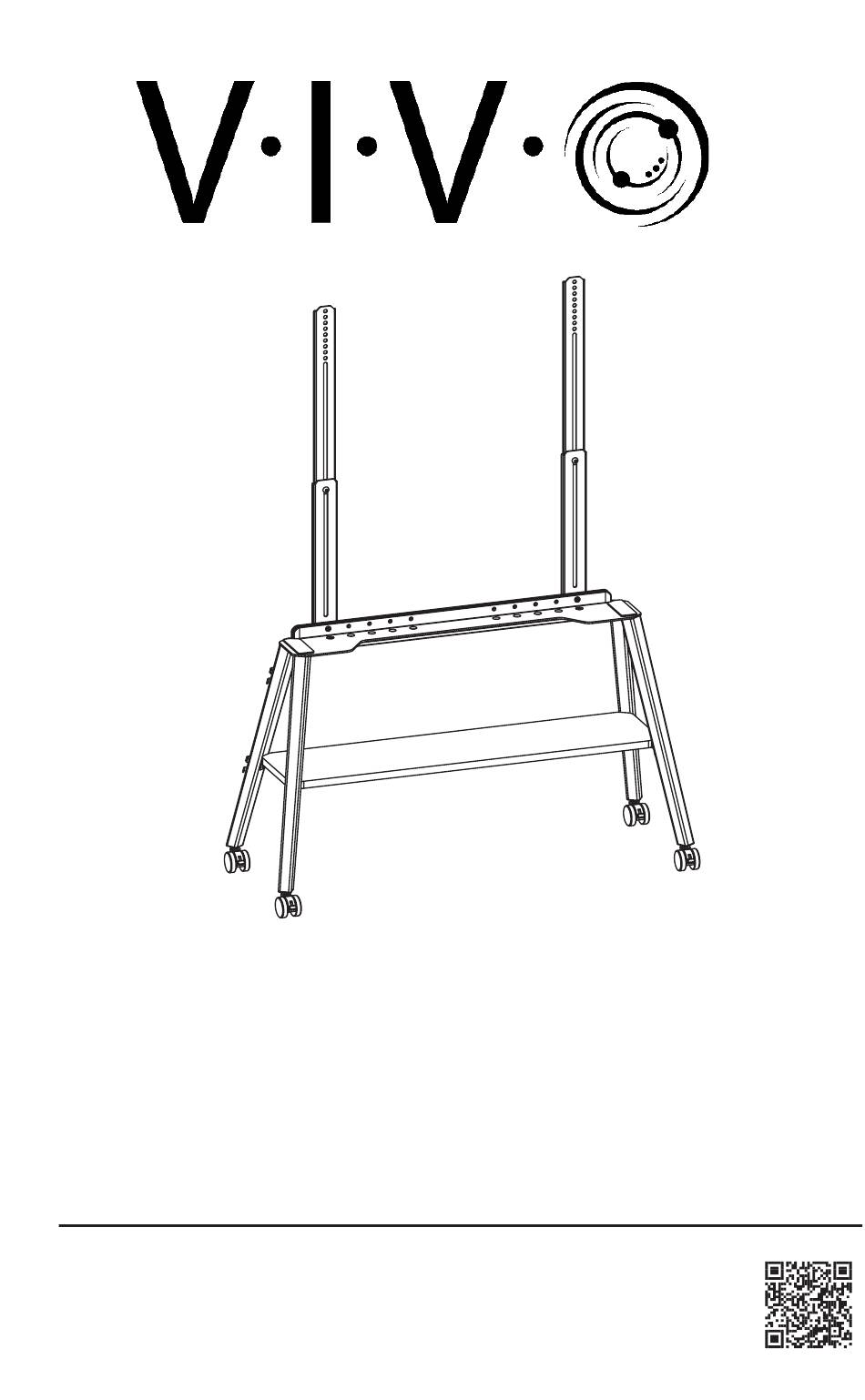

Mobile Easel
TV Stand with Shelf
SKU: STAND-TV75R/B
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/stand-tv75r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-TV75R and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-TV75R

  • Page 1 Mobile Easel TV Stand with Shelf SKU: STAND-TV75R/B Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv75r...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x4) Upper Shelf Lower Shelf D (x2) E (x4) F (x4) VESA Bracket Shelf Bracket Caster I (x4) G (x1) H (x1) Left Pad Right Pad Cable Clip Included Hardware & Tools S-A (x2) S-B (x4) S-C (x4) S-D (x2)
  • Page 4: Assembly Steps

    ASSEMBLY STEPS STEP 1 Install Legs (C) to Upper Shelf (A) using M8x16mm Screws (S-B) and 5mm Allen Wrench (T-A). Remove protective film from Left and Right Pads (G,H) and place them above the previously installed screws.
  • Page 5 STEP 2 Secure Shelf Brackets (E) to the underside of of Lower Shelf (B) by partially installing M6x12mm Screw (S-F) using Phillips screwdriver, leaving a small gap. Screws will be fully secured in a later step. Shelf Brackets should be angled to Allow a small gap when securing screws to overhang the Shelf corners, as shown allow free movement in the brackets;...
  • Page 6 STEP 3 Flip assembly over onto a soft surface. Following sub-steps below to secure Lower Shelf (B) to Legs (C). 3.1 Align Shelf Brackets (E) with 3.2 Secure Shelf Brackets (E) to Legs (C) using the angle of each Leg (C). ST4.2x12mm Screws (S-C) and a Phillips screwdriver.
  • Page 7 STEP 4 Thread Casters (F) into the bottom of Legs (C). Tighten Casters (F) using Wrench (T-B). STEP 5 Loosen nuts on VESA Brackets (D) using 5mm Allen Wrench (T-A) and Wrench (T-B). Fully extend VESA Brackets (D) and tighten the screws.
  • Page 8 STEP 6 Determine the width of your TV’s VESA pattern and use the corresponding holes on Upper Shelf (A). Install VESA Brackets (D) onto Upper Shelf (A) using M8x12mm Screws (S-D) and 5mm Allen Wrench (T-A). Install M8x30mm Screws (S-E) and M8 Nuts (S-A) using 5mm Allen Wrench (T-A), and Wrench (T-B).
  • Page 9 STEP 7 Assemble TV to VESA Brackets (D) using Screws (M-A through M-D) with M8 Washers (M-E) and Spacers (M-F, M-G) and Phillips screwdriver. Install top two holes at desired height then install the bottom two holes.
  • Page 10 STEP 8 Remove adhesive backing from Cable Clips (I) and install them onto the back of Legs (C).
  • Page 11 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
  • Page 12: Last Updated

    LAST UPDATED: 07/10/24 REV3 v1.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
