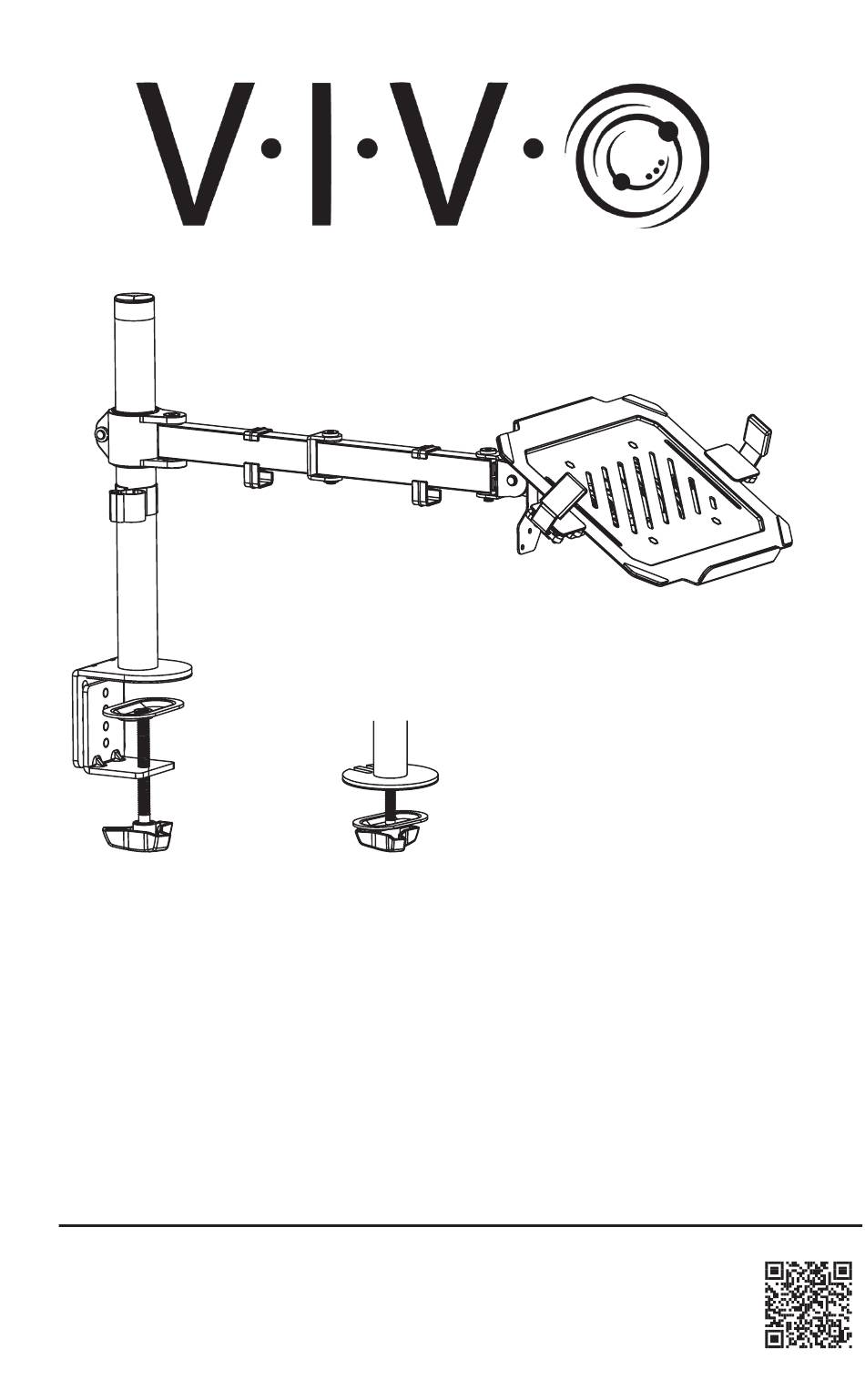

- Page 1 Laptop Tray and Desk Mount with RGB Fan SKU: STAND-V001LF Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v001lf...
-
Page 2: Electrical Safety Instructions
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) D (x1) Pole Clamp VESA Plate E (x1) F (x1) G (x1) H (x2) Laptop Tray Grommet Base Soft Pad Arm Cable Clip I (x1) J (x1) K (x2) L (x2) Pole Cable Clip Pole Cap Laptop Arm Clip... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Loosen the Clamp Bolt (B1) on Clamp (B). - Page 5 STEP 2 Option 1: Clamp Installation Install Clamp (B) to Pole (A) using M6x16mm Screws (S-A) and 3mm Allen Wrench (T-A). Secure the Clamp to the desktop by tightening the Clamp Bolt (B1).
- Page 6 Option 2: Grommet Installation Remove the pre-installed screw on the Clamp Bolt (B1) using a Phillips screwdriver and separate Clamp Bolt and Clamp Plate (B2) from the clamp assembly. Thread Clamp Plate (B2) onto the Clamp Bolt (B1).
- Page 7 Option 2 - Cont’d Install Grommet Base (F) to the Pole Remove adhesive backing from Soft (A) using M6x16mm Screws (S-A) Pad (G) and apply to the bottom of and 3mm Allen Wrench (T-A). Grommet Base. Insert Clamp Bolt (B1) up through the grommet hole and thread into Pole (A). Tighten the Clamp Bolt to secure.
- Page 8 STEP 3 Slide Pole Cable Clip (I) and Arm (C) down the Pole (A) at the desired height. Secure Arm using 5mm Allen Wrench (T-B). Insert Pole Cap (J) into the top of Pole. Attach Arm Cable Clips (H) to Arm (C).
- Page 9 STEP 4 Laptop Tray Installation Place Clips (L) through the front of the Laptop Tray (E), with Prongs facing the back of the Tray. One set of Prongs should be in the outer Slot and the other set overhanging the Tray. Front of Tray Front of Tray Back of Tray...
- Page 10 STEP 4 - Cont’d Press Laptop Arms (K) from the backside of Tray into Prongs on Clips, ensuring all four snap into place. Prongs...
- Page 11 Adjusting Locking Laptop Arms 1. Release Locks: Pull tabs on Locks on the underside of Laptop Arms (K) and extend the Arms out. 2. Secure Laptop: Place your laptop on the tray, then adjust Laptop Arms (K) to the width of your laptop.
- Page 12 STEP 5 Install Laptop Tray (E) to VESA Plate (D) using the M4x12mm Screws (S-C) and M5 Washers (S-D). Tighten using a Phillips screwdriver.
- Page 13 Optional: Monitor Mounting **Complete Standard Assembly Steps 1 - 3 before proceeding** Attach VESA Plate (D) to the back of the monitor using M4x12mm Thumbscrews (M-A) or M4x30mm Screws (M-B) with M4 Spacers (M-C). Tighten using a Phillips screwdriver. Ensure the Lip on VESA Plate (D) is facing the top of monitor.
- Page 14 STEP 6 Manage cables using Arm Cable Clips (H) and Pole Cable Clips (I). Adjust the tilt using 5mm Allen Wrench (T-B).
- Page 15 Adjust as Desired...
-
Page 16: Last Updated
LAST UPDATED: 8/1/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
