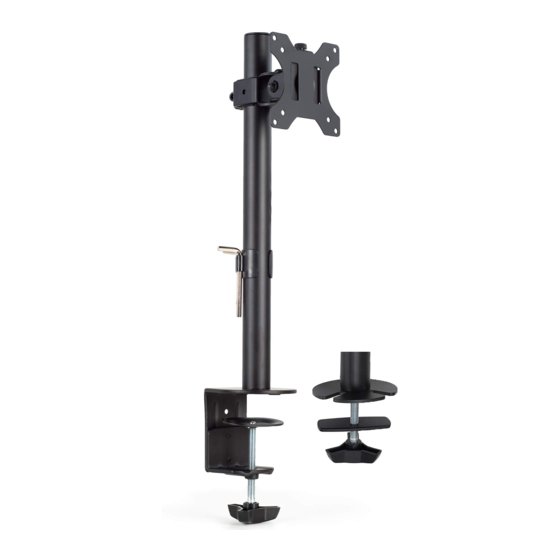

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V001C
Summary of Contents for Vivo STAND-V001C
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V001C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (7.98kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach pole cap (E) to top of pole (D). STEP 2 OPTION A: Desk Clamp Installation Assemble pole (D) to clamp base (C) with bolts (I) using 4mm Allen key (L). - Page 4 STEP 3 Attach bracket (B) and cable clip (F) to pole (D). Fasten the bolt with the supplied 6mm Allen key (M). STEP 4 OPTION A: Flat Back Monitor For flat back monitor, attach VESA plate (A) to monitor using bolts (M-A) or (M-C) and washers (M-E). M- E M- A M- C...
- Page 5 STEP 4 (Continued) OPTION B: Curved Back Monitor For curved back monitor, attach VESA plate (A) to monitor using bolts (M-B) or (M-D), washers (M-E), and spacers (M-F). M- E M- B M- D M- F STEP 5 Slide the monitor onto the head of bracket (B). Attach thumb screw (K). Make sure the screw is attached before you rotate the monitor.
- Page 6 STEP 6 If needed, adjust the bolt on the side of the hinge behind the VESA plate to tighten or loosen the tilt angle. STEP 7 Manage the cables using the attached cable clips.
- Page 7 STEP 8 Store the Allen keys in cable clip (F) for future use. Adjust as Desired 180° +45° 360° -45°...
