laguna Fusion F3 Manual

Table saw 230v
Hide thumbs Also See for Fusion F3:
Table of Contents

Advertisement

Quick Links

Download this manual
N.B. Some pictures and diagrams in this manual may have buttons and electrical configurations
which differ slightly from the machine you purchased
F 3 Fusion
Table Saw 230v
Distributed by
Set Up &
Product
Support
Distributed by
Code: 111786
DIGITAL MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion F3 and is the answer not in the manual?

Questions and answers

Related Manuals for laguna Fusion F3

Summary of Contents for laguna Fusion F3

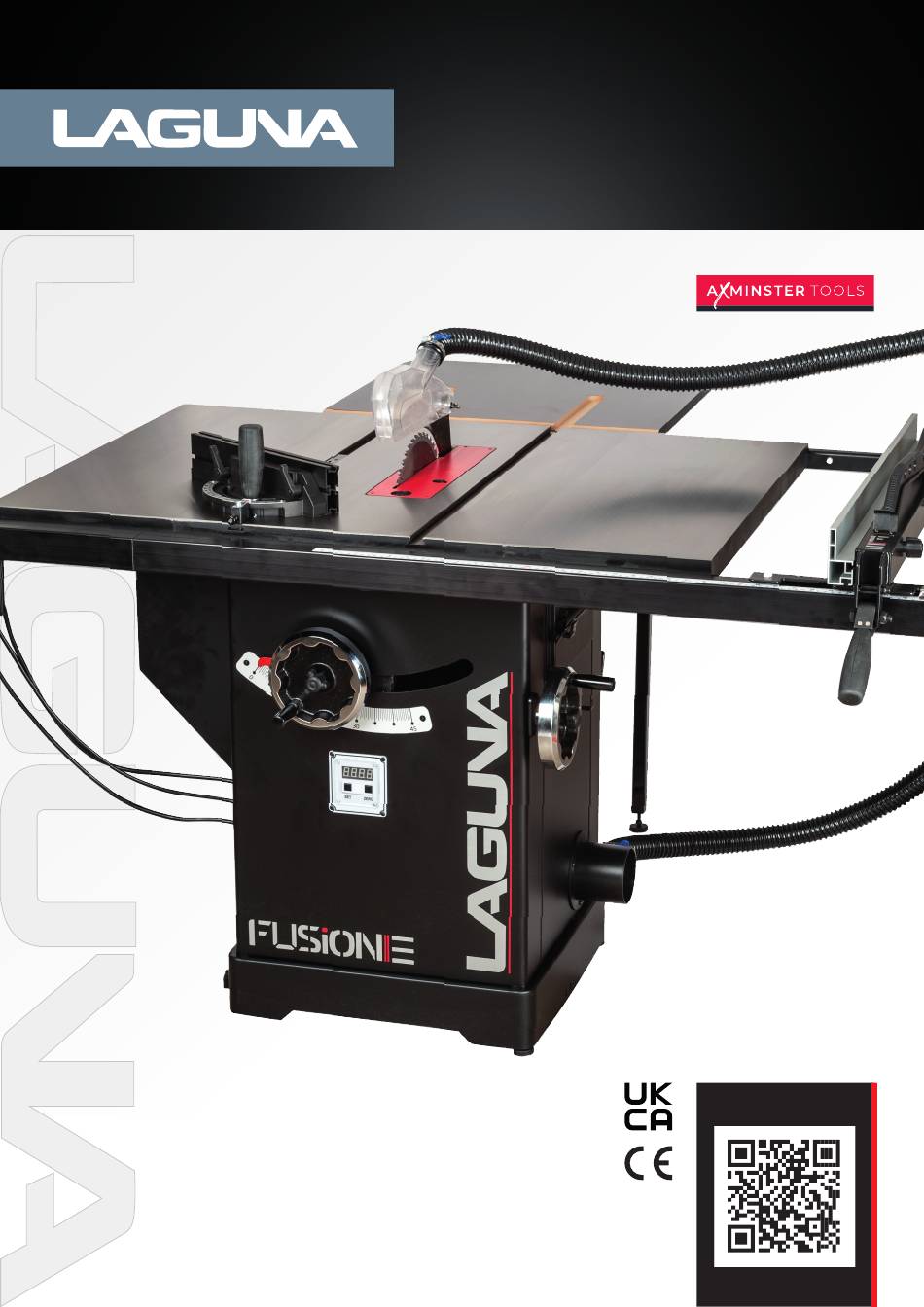

  • Page 1 F 3 Fusion Table Saw 230v Code: 111786 Distributed by DIGITAL MANUAL Set Up & Product Support N.B. Some pictures and diagrams in this manual may have buttons and electrical configurations which differ slightly from the machine you purchased Distributed by...

  • Page 2: Table Of Contents

    Installing/Removing Safety Accessories Installing/Removing the Blade Adjustments Fence Adjustments Table Adjustments Arbor and Tilt Adjustments Accessory Adjustments Push Block Type of Cut Maintenance Internal Components Map Trouble-Shooting Wiring Diagram: Fusion F3 230V Parts Diagrams Parts List Conformity Certificates Manufacturers warranty...

  • Page 3: Dear Woodworker

    Dear Woodworker Thank you for your purchase and welcome to the Laguna Tools group of discerning woodworkers. We understand that you have a choice of where to purchase your machines and appreciate the confidence you have in the Laguna Tools brand.

  • Page 4: Specifications

    Sliding Cam Action Fully Adjustable Fence Face Dimensions (LxWxth.) 670 x 80 x 17 mm Throat Plate Type Professional Square Zero Clearance Throat Plate Dimensions (LxWxth.) 372 x 104.5 x 13 mm Floor to Table Height 887 mm © 09/2019, Laguna Tools, Inc.

  • Page 5: Top 10 Features

    Perfectly flat and precision ground mirror finished tabletop. Designed for industrial use. The Fusion F3 features an industrial strength 3HP motor, increased thickness cabinet, and an electromagnetic starter for industrial use. Quick release blade guard attachments. Quick Arbor Adjustments with the 2:1 assisted tilt mechanism and mechanically assisted height adjustments.

  • Page 6: Safety

    SAFETY The following is a list of safety precautions you must consider when using a Table saw: ALWAYS REMEMBER TO READ ALWAYS REMEMBER TO DISCONNECT THE POWER TO THE TABLE SAW WHEN MAKING REPAIRS OR THROUGH THE MACHINE INSTRUC- ADJUSTING BLADES AND GUARDS. TIONS SUPPLIED.

  • Page 7: Tool Overview

    Tool Overview Your new Laguna Tools machine is comprised of different components to make a long lasting and precise piece of machinery that will help you with your next project. Understanding your new machine and its components will make you a better craftsman.

  • Page 8: Setup

    To avoid set-up problems, to prevent potential damage Use Caution: Your new Laguna Tools machine is heavy. Use a to the machine and personal injury, read through the entire setup minimum of two people when lifting the tool into position and moving section prior to setting up the machine.

  • Page 9: Loose Parts & Overview

    Fusion Tablesaw Loose Parts & Overview Your new machine has been mostly assembled at the certified ISO 91001 factory where it was made. Some parts must be assembled by the purchaser. Please read all steps first before proceeding with step one. (5) M8x1.5+ lock washer + washer +nut (5) Square Head...

  • Page 10: Rear Extension Table

    Fusion Tablesaw 6. Insert short rail and switch 7. Join front fence supports 8. Align the front rail with blade Insert the short front rail into the first square head Align the pins and join the two front rail pieces and Using the blade notching on the measuring tape, bolt.
  • Page 11 Nylon Lock Nuts (16mm) Rear Extension Table Legs, 4 of 4 Rear Extension table Attaching Legs to the Rear Extension Table: 1. Flip the rear extension table so that the face is down. 2. Place the rear extension legs between the metal L-brackets on either side of the table. 3.

  • Page 12: Installing/Removing The Throatplate

    Adjust lock plate location and fix the machine on the If required you can fix the machine to the floor floor by screw. using the transport brackets Installing/Removing the Throatplate Installing the throat plate Leveling the throat plate Pre-installation Aligning the bracket 1.

  • Page 13: Installing/Removing Safety Accessories

    Note on the Riving Knife ⚫ Warning: Since Riving Knife, other than those offered by Laguna, has not been tested with this product, use Warning: Since Riving Knife, other than those offered of such accessories with this tool could be hazardous. To reduce the risk of injury, only Laguna, by Laguna, has not been tested with this product, use recommended accessories should be used with this product.

  • Page 14: Installing/Removing The Blade

    Fusion Tablesaw Installing/Removing the Blade Guard 3. insert the blade guard 4. position TO LEFT OF CASING 1. Un-plug the tablesaw! 2. Make sure the lock is in open position 3. Insert the blade guard 4. Position the guard insert 5.

  • Page 15: Adjustments

    Fusion Tablesaw Adjustments Your Laguna Tools machine comes fully adjusted from the factory, but it is good practice to double check these adjustments and make sure the tool is in safe operating condition. Fence Adjustments Fitting the fence: You will need to fit the fence to the right side of the blade to use the table saw. In the fit position, the fence can move freely with limited friction due to the installed nylon and plastic glide bushings.
  • Page 16 Fusion Tablesaw Adjusting the Fence to be Parallel with the Blade: It is very important to only operated this saw with the blade parallel to the fence. NOTICE: If this section does not help, please see the table adjustments section: Adjusting the Table to be Parallel with the Blade. The blade needs to be parallel to the table (mitre slots) to effectively make the fence parallel to the blade.
  • Page 17 Fusion Tablesaw Loosen Table Loosen Table Bolts Loosen Table Bolts Bolts Locate and loosen right side table to cabinet bolt Locate and loosen left side table to cabinet bolt Locate and adjust the rear table to cabinet bolt. (above the tool holder). (above the motor cover).

  • Page 18: Arbor And Tilt Adjustments

    Fusion Tablesaw Arbor and Tilt Adjustments Adjusting the Blade Tilt Limits You can check the arbor (blade) tilt limits with an angle finder or 45-degree triangle. If these limits are not within 0 degrees and 45 degrees, use the following steps to adjust. 2.

  • Page 19: Accessory Adjustments

    Fusion Tablesaw Changing Belt Adjustment bolt Accessing the Belt the Belt Unplug the tablesaw! Remove all throatplates, blades, and blade accessories. Remove the motor cover. Remove the dust shroud. Loosen the Belt adjustment bolt and loosen belt by raising motor. Remove belt.

  • Page 20: Push Block

    Fusion Tablesaw There is a 101.6 mm dust outlet located on the lower left of the saw cabinet allowing for the connection to a dust collection system (not included). Air current speed is 20m/s for vacuum suction dust emission index. When air current speed of dust collector device (in accordance with EN 12779:2004+ A1:2009) is not lower than 20m/s, ensure machine can be normal exhausted.

  • Page 21: Type Of Cut

    Fusion Tablesaw Type of Cut Warning: Always wear safety glasses, Note: This saw is only designed to cut a respirator and hearing protection when wood. operating this machine RIPPING Cutting a wood plank or sheet of plywood lengthwise to reduce its width is called “ripping”.

  • Page 22: Bevel Cross Cutting

    Fusion Tablesaw CROSS CUTTING Cutting against the grain, to shorten the length of a board is crosscutting. With some smaller sized and rectangular pieces, you often have the choice of ripping or crosscutting. Always use the miter gauge, when crosscutting; never cut a piece unsupported.

  • Page 23: Maintenance

    Fusion Tablesaw Maintenance To keep you Laguna Tools machine in top performance for many years please follow this maintenance schedule and refer to any instructions. Daily Check: Notes • Loose mounting bolts • Damaged saw blade • Damaged riving knifes, splitters, or blade guards •...

  • Page 24: Trouble-Shooting

    Fusion Tablesaw Trouble-Shooting Behavior Possible Causes Possible Solution 1. Start capacitor at fault 1. Test/replace if faulty. 2. Motor connection wired wrong 2. Correct motor wiring connections. 3. Wiring at fault 3. Check/fix broken, disconnected, or corroded wires. 4. Motor Start/Stop switch at fault 4.

  • Page 25: Wiring Diagram: Fusion F3 230V

    Fusion Tablesaw Wiring Diagram: Fusion F3 230V...

  • Page 26: Parts Diagrams

    Fusion Tablesaw Parts Diagrams Fence Assembly...

  • Page 27: Mitre Gauge, Blade Guard

    Fusion Tablesaw MITRE GAUGE, Blade guard...

  • Page 28: Motor And Trunnion

    Fusion Tablesaw Motor and Trunnion...
  • Page 29 Fusion Tablesaw cabinet...
  • Page 30 Fusion Tablesaw F3 Cabinet...

  • Page 31: Parts List

    Key Part No. Descriptions Specification Q'ty 924707-001 Fence Assembly .1 174712-308 Fence Body .2 310511-909 Adaptor .3 174713-000 Fix Plate .4 250799-620 Pointer .5 172847-905 Pointer Bracket .6 001101-205 Round Head Screw M3*1.06P*6 .7 000304-210 Pan Head Screw M6*1.0P*6 .8 000302-101 Pan Head Screw M4*0.7P*6 .9 270007-901...
  • Page 32 Key Part No. Descriptions Specification Q'ty .3 090109-008 Miter Gauge Body .4 000302-108 Pan Head Screw M4*0.7P*20 .5 008002-100 Hex. Nut M4*0.7P(7B*3.2H) .6 003303-105 Pan Head Screw 3/16"-24NC*3/8" .7 250226-620 Pointer .8 130053-903 Spacer .9 360381-901 Fixing Rod .10 290023-902 Shoulder Screw .11 310496-904 Slot Bar...
  • Page 33 Key Part No. Descriptions Specification Q'ty 010005-000 Retaining Ring STW-14 130359-903 Bracket for Riving Knife 000104-104 Cap Screw M8*1.25P*16 280259-901 Spring 130363-903 Bushing 110073-000 Block 001902-710 SET Lock Screw M6*1.0P*8 000804-106 Round Head Screw M5*0.8P*16 361251-905 361250-901 Fixing Knob 110071-000 Lock Handle 390040-000 Saw Blade...
  • Page 34 Key Part No. Descriptions Specification Q'ty 006001-020 Flat Washer 6.2*20*3.0t 006007-114 Flat Washer 6.4*16*1.6t 361245-901 Lead Screw 010007-000 Retaining Ring STW-16 012002-003 4*4*8 174324-000 Washer 031011-001 Bearing 51100 090324-000 Trunnion Base 130257-000 Bevel Gear 006001-025 Flat Washer 6.4*16*1.0t 008317-300 Lock Nut M6*1.0P(10B*5H) 361246-000 Column...
  • Page 35 Key Part No. Descriptions Specification Q'ty 010004-000 Retaining Ring STW-13 100 010107-000 Retaining Ring RTW-47 101 361262-901 Shaft 102 360734-901 Bushing 103 000304-113 Pan Head Screw M6*1.0P*30 104 174789-196 Motor Cover 105 051135-000 Trunnion Support 106 000003-104 Hex. Screw M8*1.25P*20 107 174315-904 Arbor Wrench 108 008005-100...
  • Page 36 Key Part No. Descriptions Specification Q'ty .14 006501-100 Tooth Washer 4.3*8.5(BW-4) .15 023705-011 O-Ring .16 340136-615 Seal Ring .17 010201-000 Retaining Ring ETW-3 .18 001201-709 Tapping Screw M4*1.41P*25 938043-001 Magnetic Switch Assembly 3HP*220V-240V*1PH 491193-000 CE Plug P331-(IP44) 174971-904 Cord Fixing Plate (M6) 023705-011 Strain Relief PGB13.5-12B...
  • Page 37 Key Part No. Descriptions Specification Q'ty 3.2.1 190208-365 3.2.2 008006-100 Hex. Nut M8*1.25P(13B*6.5H) 3.2.3 230041-000 Leveling Foot S20C+NBR 130 251362-615 Push Sticks 133 040002-000 Hex. Wrench 2.5mm 134 040006-000 Hex. Wrench 135 174569-904 Open Wrench 10*13 *138 174779-196 Cabinet for Fusion2 *138 174779-196 Cabinet for Fusion3 142 000002-101...
  • Page 38 Key Part No. Descriptions Specification Q'ty .3 001102-604 Round Hear Tapping Screw M4*1.59P*12 .4 006001-049 Flat Washer 8.5*16*2.0t .5 008006-100 Hex. Nut M8*1.25P(13B*6.5H) .6 048701-101 Square Screw M8*1.25P*20 .7 360249-905 Connect Pin 175 000304-102 Round Head Phillip Screw M6*1.0P*10 176 190324-901 Spacer...

  • Page 39: Conformity Certificates

    UK DECLARATION OF CONFORMITY ‘original’ Product model: F3 Fusion Table Saw Name and address of the manufacturer: Laguna Tools Inc. 2072 Alton Parkway, Irvine, California 92606, USA. Name and address of the UK Authorised Representative: Axminster Tool Centre Ltd, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH, United Kingdom.

  • Page 40: Ec Declaration Of Conformity

    Woodworking machines - Safety - Part 1: Common requirements EN ISO 19085-9:2020 • Woodworking machines - Safety - Part 9: Circular saw benches (with and without sliding table) Responsible for the documentation: Head Product Management, Laguna Tools Inc. Name : Stephen Stoppenbrink / Chief Executive Officer Responsibility...

  • Page 41: Manufacturers Warranty

    The labour required to install replacement parts is the responsibility of the user. Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control.
  • Page 44 Distributed by For after sales help visit axminstertools.com or call 03332 406406 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately.
