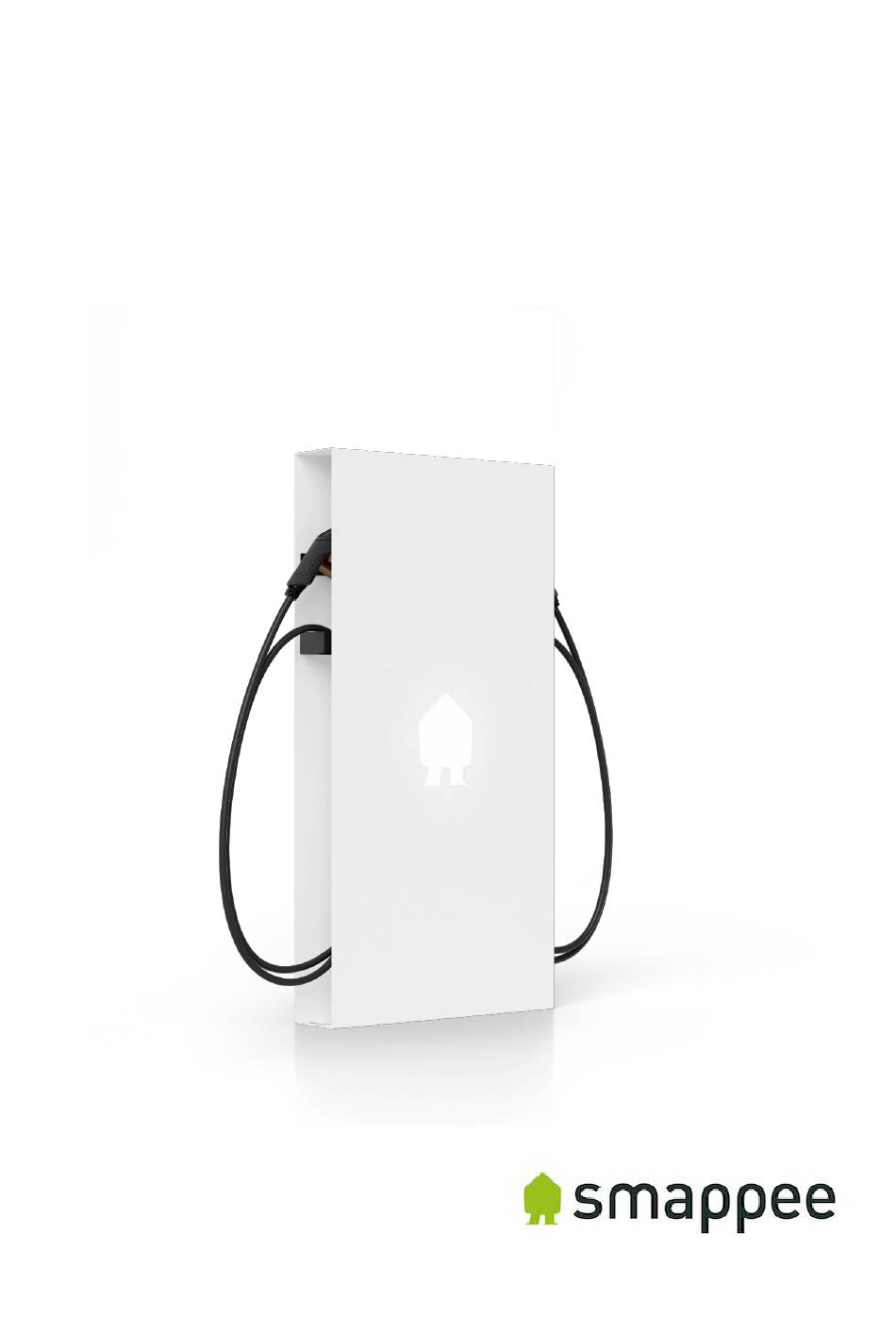

- Page 1 Smappee EV Base Installation manual English – Version 1.4 – January 2022...
-
Page 2: Table Of Contents
4. Components ....................7 5. Technical specifications................... 8 6. Preparing the installation ................11 7. Installation and activation ................14 8. Using the EV Base ..................24 9. Declaration of conformity ................28 Smappee EV Base – Installation manual - English... -
Page 3: Introduction
This installation and user manual tells you how to install and use the Smappee EV Base. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation and enable you to use all the advanced features of this product to the full. -
Page 4: Safety Instructions
2. Safety instructions Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV Base. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations. - Page 5 Only transport and store the charging station in its original packaging. No liability for damage incurred will be accepted if the charging station is transported in non-standard packaging. • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV Base – Installation manual - English...
-
Page 6: Models
5425036932319 EV Base 3-phase 1 x 22 kW Socket Left EVB-1332-C5R-E 5425036932340 EV Base 3-phase 1 x 22 kW Type 2 cable 5m Right EVB-1332-C5L-E 5425036932357 EV Base 3-phase 1 x 22 kW Type 2 cable 5m Left Smappee EV Base – Installation manual - English... -
Page 7: Components
1. Manufacturer 2. Article number 3. Rating 4. Manufacturing date 5. QR code containing article number and serial number 6. Serial number 7. Degree of protection 8. EAN code Smappee EV Base – Installation manual - English... -
Page 8: Technical Specifications
Double power supply, 1-phase, 32A: 2 x 40 A max 1P, car. B or C Double power supply, 3-phase, 32A: 2 x 40 A max, 3P car. B or C Interfaces & Connectivity Information status RGB LED Smappee EV Base – Installation manual - English... - Page 9 Supply line connection Terminal block, flexible conductors up to 6 mm² or solid conductors up to 10 mm² Stationary / moveable Fixed installation External design Enclosed assembly Mounting method Floor / Ground-mounted Smappee EV Base – Installation manual - English...
- Page 10 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. Smappee EV Base – Installation manual - English...
-
Page 11: Preparing The Installation
Calculate the existing electrical load to find the maximum operating current for the charging station installation. The Smappee EV Base is equipped with 2 connectors which need to be powered individually. Note that with the Smappee Overload functionality more charging stations or the total maximum operating current can be higher than the physical installation allows. - Page 12 3 x 32 A Prepare the mounting foundation The Smappee EV Base is designed to be installed at ground level without the need for a separate mount. A stable and level ground needs to be prepared in advance. We advise a levelled concrete foundation at ground level.
- Page 13 2 x cable ties for strain relief 2 x M32 cable gland Supplies (not included) Ethernet cable or RJ45 connector for wired communication. Power supply cables Ferrules (6 mm²), for stranded power supply cables Smappee EV Base – Installation manual - English...
-
Page 14: Installation And Activation
In order to dismount the floor plate, remove the four M6 bolts and washers. Store the bolts and washers in a safe location for further use. b. Cut the cable tie securing the charging cables to the floor plate. Smappee EV Base – Installation manual - English... - Page 15 Drill 4 holes of 12 mm diameter through the slots to a depth of 70 mm. Insert the supplied concrete anchors. Make sure that there is approximately 3 cm of threaded wire visible above ground level. Do not drill holes for the 4 remaining 5 mm slots. Smappee EV Base – Installation manual - English...
- Page 16 Mount the floor plate over the anchors and make sure it is level in both directions. If not, tilt the floor plate until it becomes level. To tilt the floor plate, insert large washers below the floor plate until it becomes level. Smappee EV Base – Installation manual - English...
- Page 17 Place two nuts on the front screw threads and hand tighten. Do NOT torque the nuts yet. This is done in the last step of the installation, when the back cover of the EV Base is in place. Smappee EV Base – Installation manual - English...
- Page 18 L3 – L2 – L1 – N (as indicated on the label) EV Base 3 Connector 1 L1 – L3 – L2 – N Connector 2 L2 – L1 – L3 – N And continue with this pattern for other EV Base units. Smappee EV Base – Installation manual - English...
- Page 19 When phase rotation is applied on a connector adjust the configuration in the Smappee Dashboard. Single-phase installation In case only one phase is available from the power supply, it is possible to install an EV Base as a single-phase charging station. In this case, the one available phase should be connected to L1. Do not connect anything to L2 and L3.
- Page 20 If you won’t use this method, please continue to the next section. The two supplied QR codes need to be put on top of the Smappee EV Base. Fix the QR code near the corresponding connector to make sure the driver scans the correct QR code.
- Page 21 This procedure is done with the Smappee Energy Monitor mobile app. You can download this from the Apple App Store for iOS or the Google Play store for Android phones. The Smappee App will guide you through the various steps to fill in all the required information. •...
- Page 22 Place two nuts on the rear screw thread. d. Mount the 4 remaining M6 bolts and washers to secure the EV Base with the floor plate e. Tighten all anchor nuts and bolts with a wrench. Smappee EV Base – Installation manual - English...
- Page 23 Finish off by using the preferred top coat. Smappee EV Base – Installation manual - English...
-
Page 24: Using The Ev Base
1. Plug & Charge: Simply insert the connector in the EV and start charging. 2. Swipe & Charge: Insert the connector, swipe your RFID card and start charging. 3. Scan & Charge: Insert the connector, scan the QR code in the Smappee app and start charging. - Page 25 Swipe and charge Charging sessions can be started using an RFID card. You can either use a Smappee Smart Charge Card for free charging or (if activated) a third party eMSP card to pay for charging sessions. The RFID reader is situated at the top of the EV Base.
- Page 26 Scan and charge The user pays by credit card (Visa or Mastercard) using the Smappee app. They scan the QR code shown on the charging station and the app will guide them through the process of starting the charging session. It is also possible to set discount rates for specific users. Please contact info@smappeeservices.com...
- Page 27 The Smappee EV Base is Check the manual or contact unavailable. your supplier for more info and further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV Base – Installation manual - English...
-
Page 28: Declaration Of Conformity
- 2014/30/EU The Electromagnetic Compatibility Directive - 2014/32/EU Measuring Instrument Directive - 2011/65/EU RoHS Directive hereby declare that the product: EVB-2332-B-E, EVB-2332-BS-E, EVB-2332-C2-E, EVB-2332-C5-E, EVB-1332-BR-E, EVB-1332-BL-E, EVB- 1332-C2R-E, EVB-1332-C2L-E, EVB-1332-C5R-E, EVB-1332-C5L-E is in conformity with the applicable requirements of the following documents * Metering :...
