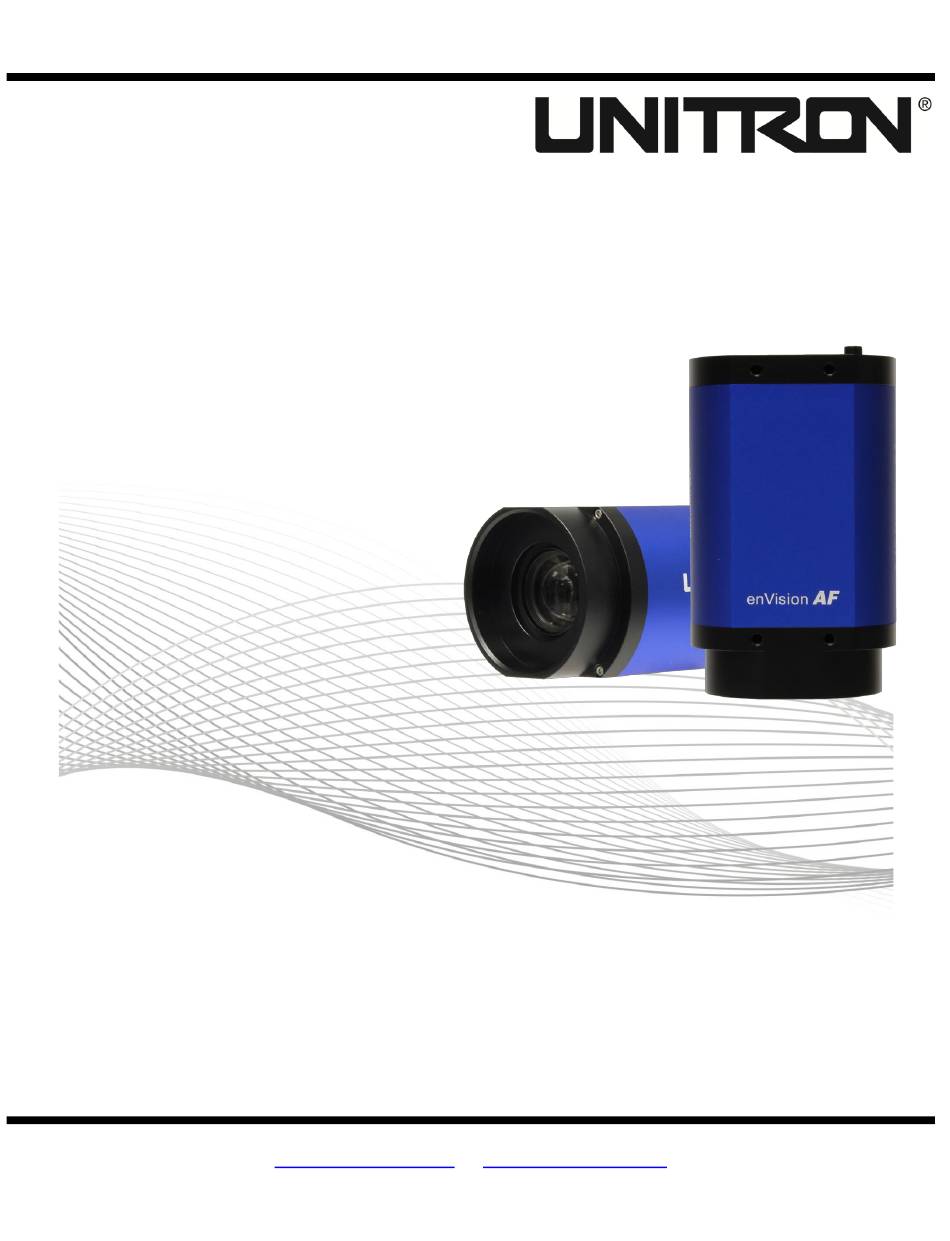

- Page 1 AF Autofocus Infinity Inspection Camera MANUAL for Stand-Alone Operation 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) www.unitronusa.com • info@unitronusa.com...
-
Page 2: Table Of Contents
Zoom Window ............................. 12 Lines ................................12 Logo ................................13 Specifications and Environmental Conditions ....................14 Warranty Details ..............................16 Warranty Information ..........................16 Contact Information ............................ 16 Disposal ............................... 16 Labeling ................................17 UNITRON enVision AF User Manual Ver. 241216... -
Page 3: Introduction
Introduction Read the entire User Manual before attempting to operate this device. UNITRON enVision AF User Manual Ver. 241216... -
Page 4: Safety
Prior to installation, a location must be identified that meets the below requirements. The minimum dimension requirements for the enVision AF are as follows: 15” Wide x 20” Depth x 22” Height. Your system configuration may require additional space for boom stands and/or taller mounting positions. -
Page 5: Connection Ports
Connection Ports UNITRON enVision AF User Manual Ver. 241216... -
Page 6: Main Menu
The icon turns gray U Disk when the U disk is not connected. Language Click on the upper left corner of the menu to switch the language. UNITRON enVision AF User Manual Ver. 241216... -
Page 7: Focus
Save an image directly to the inserted U-Disk USB. Pictures are saved in .jpg or .bmp format to the U-Disk. ▪ Naming templates for photos can be adjusted in settings. For manual naming, type the desired filename for UNITRON enVision AF User Manual Ver. 241216... - Page 8 ▪ Clicking the "AE" icon will turn on automatic exposure. Click again to exit the automatic exposure and enter manual exposure mode. This feature can also be set up in the Settings page. UNITRON enVision AF User Manual Ver. 241216...
- Page 9 Video Settings Edit how videos are named, where they are stored. File type is mp4. Measurement Settings Select size, thickness, and color of the text and line segments in the measurement tool. UNITRON enVision AF User Manual Ver. 241216...
- Page 10 (electronic zooming) to add an additional 1x to 6x on top of the optical zoom maximum of 14x. Settings Edit Menu Allows user to customize how the interface is displayed. Add or remove tools/features to fit your workflow. UNITRON enVision AF User Manual Ver. 241216...
-
Page 11: Measurement Tools
Modify icon to modify the template. ▪ Click the Save or Save As icon to save the modified template. Click the "Return" icon, to discard the modified template. UNITRON enVision AF User Manual Ver. 241216... -
Page 12: Scale
The magnification of the picture is 2/4/6 . ▪ You may need to toggle the icon when changing magnification size. Lines Click "+" to set the number of horizontal and vertical cross lines. Line color and thickness can be changed. UNITRON enVision AF User Manual Ver. 241216... -
Page 13: Logo
PNG. ▪ Import method: insert the U disk with the logo picture (.png format) into the camera USB interface, then double-click the left mouse button on the identification bar to complete the import. UNITRON enVision AF User Manual Ver. 241216... -
Page 14: Specifications And Environmental Conditions
FOV (@ 10cm) FOV (@ 30cm) 171mm*92mm 420mm*230mm 89mm*50mm 196mm*110mm 71mm*40mm 150mm*84mm 60mm*33mm 116mm*65mm 52mm*29mm 101mm*57mm 24.3mm*13.5mm 45.5mm*25mm Mechanical Specifications 72mm (L) X 88mm (W) X 129mm (H) Dimensions (camera only) Weight 0.57kg UNITRON enVision AF User Manual Ver. 241216... - Page 15 Environmental Specifications Operation Temperature Temperature range is 0-50° C and the maximum humidity is 85% Electrical Specifications Power Supply Input: 100~240V, 50-60Hz, 0.3A maximum Output: DC12V1A UNITRON enVision AF User Manual Ver. 241216...
-
Page 16: Warranty Details
All items returned for warranty repair must be sent freight prepaid and insured to UNITRON Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the Continental United States of America. -
Page 17: Labeling
Equipment must not be disposed of as unsorted municipal unsorted municipal waste. waste (WEEE) Indicates the need for the user to Follow Instructions consult the instructions for use prior to operating the device. UNITRON enVision AF User Manual Ver. 241216...
