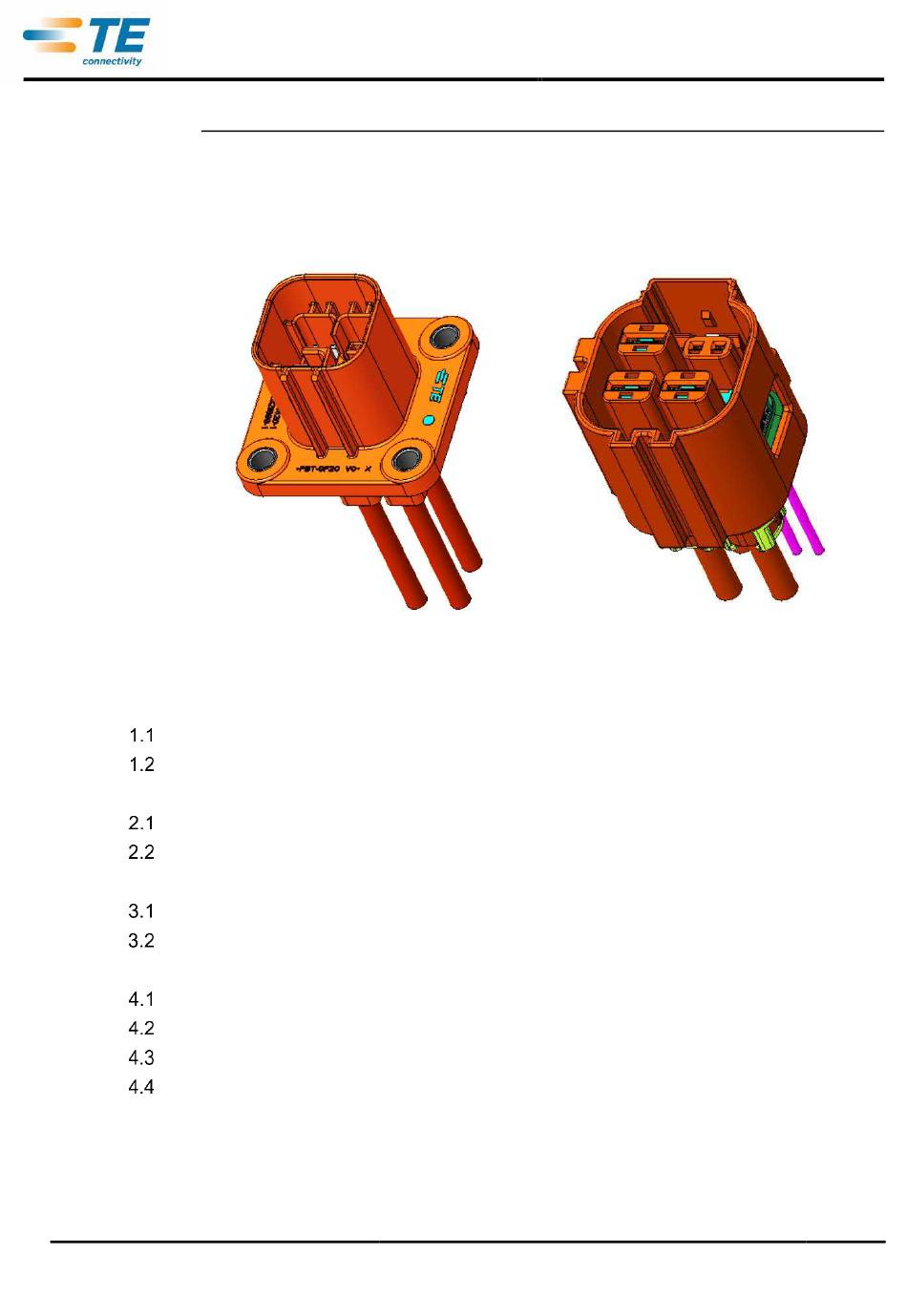

TE Connectivity HVA630-3+2phi V0 Application Specification

Low-medium current connector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Application
Specification
Document Class 1
Contents
1.
Introduction ...............................................................................................................................................2
Content ..............................................................................................................................................2
Processing Notes ...............................................................................................................................2
2.
Applicable Documents ..............................................................................................................................2
Customer drawings and documents ...................................................................................................2
3.
Cable selection and termination components ............................................................................................3
Plug ....................................................................................................................................................3
Header ...............................................................................................................................................3
4.
Assembly Instructions ...............................................................................................................................4
Assembly overview ...........................................................................................................................4
Security Advice .................................................................................................................................5
Header Connector Assembly .............................................................................................................6
Plug Connector Assembly .................................................................................................................8
5.
Mating plug with header , Lock CPA ......................................................................................................11
6.
Connector unmating ................................................................................................................................12
©2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
Indicates Change
*Trademark. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective
owners.
Low-Medium Current Connector
HVA630-3+2phi V0
114-101092
1 MAR 2021Rev A
1 of 13
LOC B
