Contact Assembly Instructions
1

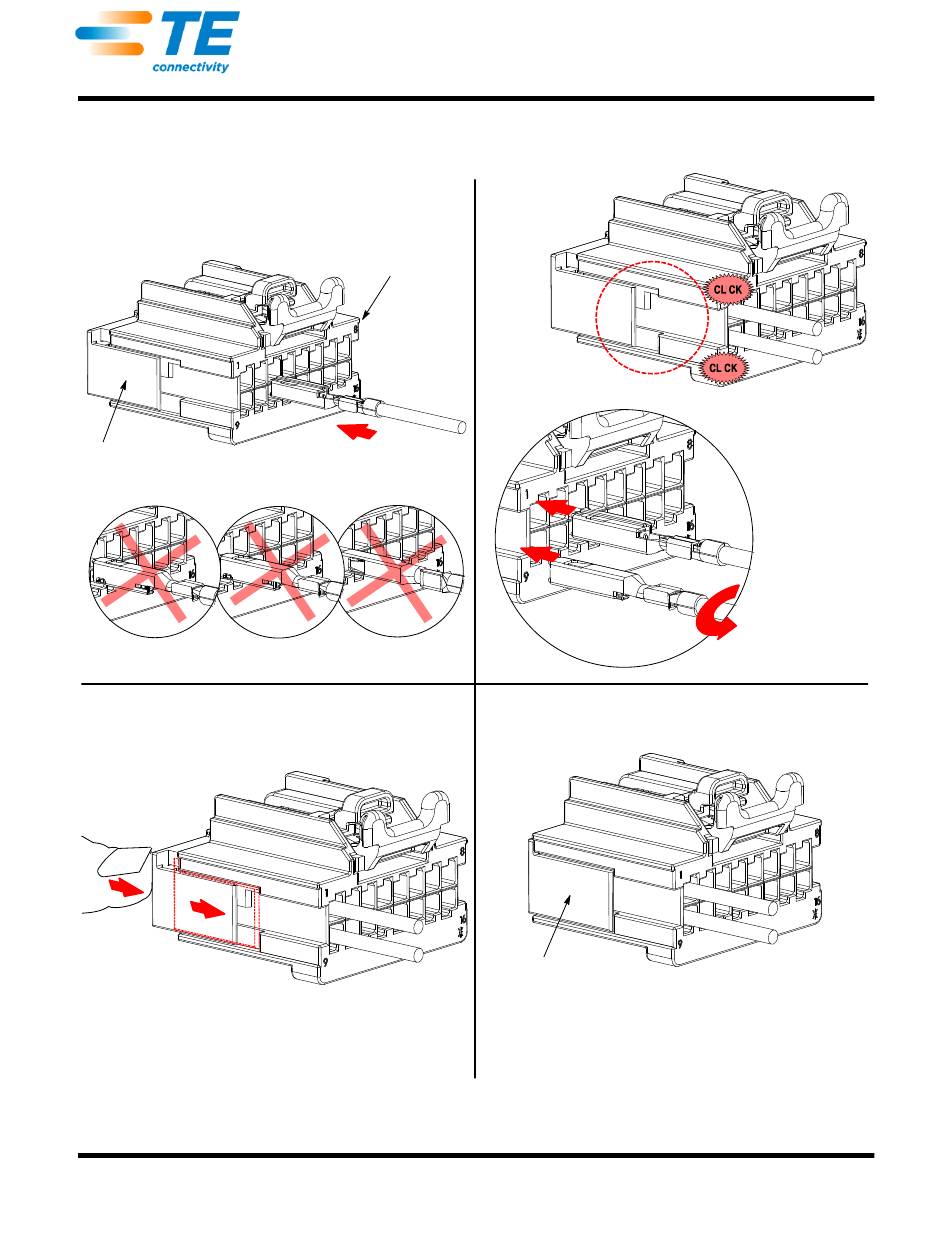

TPA Secondary Lock
In Pre-Set Position
Incorrect Orientations
3
Push to Activate
TPA Secondary
Lock
After all desired contacts are inserted, engage
the TPA secondary lock. A physical resistance
to fully engaging TPA indicates contact is not
fully inserted. Go back to Step 2.
NOTE: This document is representative of all connector positions in this product family.
© 2014 TE Connectivity Ltd. family of companies
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
GET Market Connector
Female (Unsealed)
Female
Connector
Housing
Insert Contact
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
2
4
TPA Secondary
Lock Engaged
and Latched
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-8599
Rev D
07 JAN 14
Insert Contact Until
Latch Engages and
an Audible "Click"
is Heard
Lower Contact
Row Oriented 180°
From Upper
Contact Row
(Typical)
1 of 4
