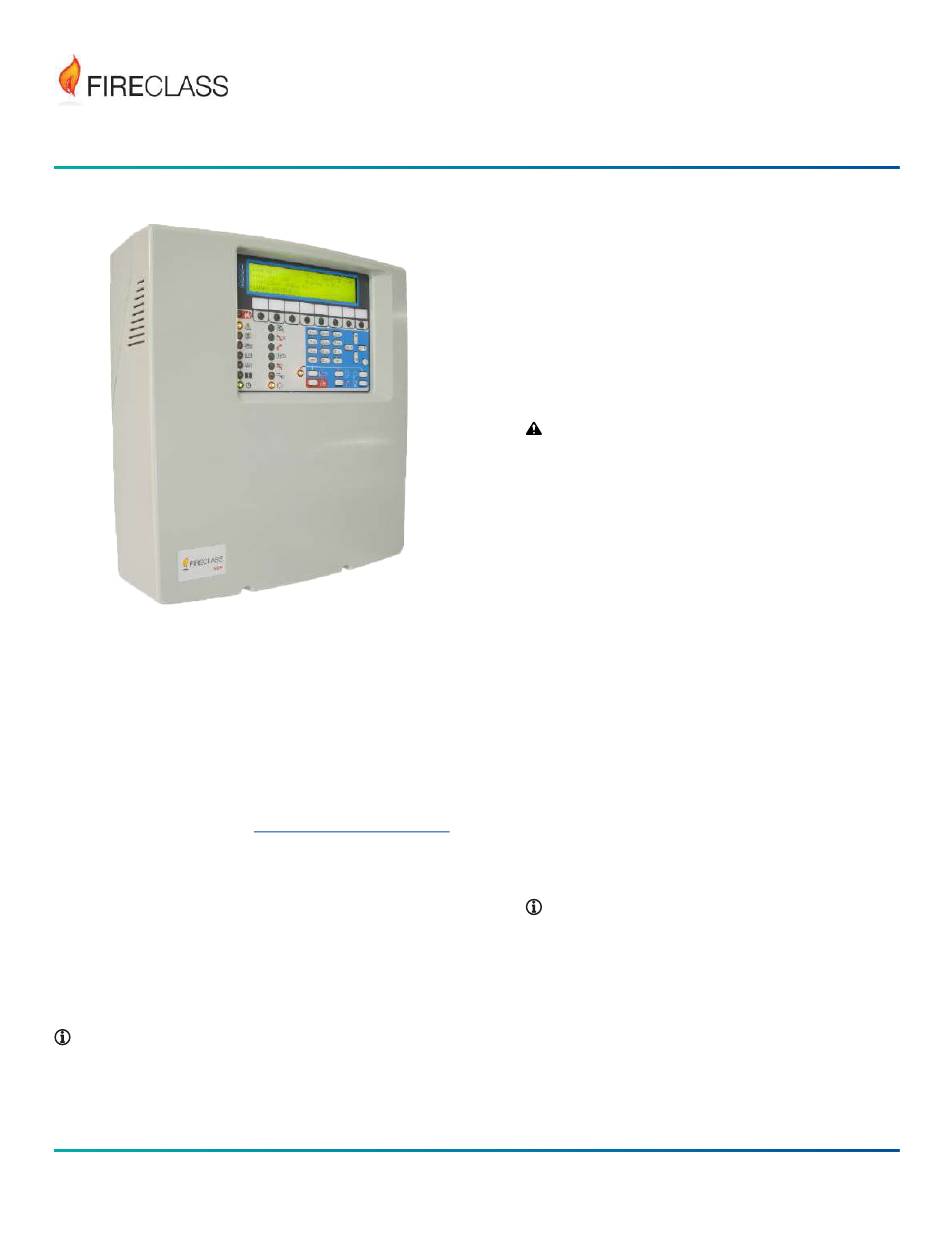

FireClass FC501-L User Manual

Addressable fire control panels
Hide thumbs Also See for FC501-L:

Advertisement

Quick Links

Introduction
Johnson Controls assumes no responsibility
for damage to products arising from improper
application or misuse.
The FC501-L, FC501-H, and FC501-HK fire control
panels comply with the essential requirements of
standards EN54-2, EN54-4, and EN 54-21.
The FC501-L, FC501-H, and FC501-HK fire control
panels support several addressable devices, such
as detectors, modules, manual call points, and so
on. For further information about these devices and
their accessories, refer to http://www.fireclass.com.
The manufacturer reserves the right to change the
technical specifications of these products without
prior notice.
Maintenance
To ensure that the system continues to operate
correctly, it must be maintained with regular testing
by the user and periodic maintenance by the
installer in accordance with local laws.
Note: For the maintenance of other devices
such as detectors, modules, and so on, follow
the dedicated instructions for the devices.
www.acornfiresecurity.com
FC501 Addressable Fire Control Panels User
The following operations must be carried out
regularly:
1.
2.
3.
4.
5.
6.
7.
www.acornfiresecurity.com
120.615.011_FC-FC501-P-U 9.0
Remove dust from the control panel cabinet
with a damp cloth. Do not use solvents of any
kind.
Check that the LEDs and buzzer are functioning
correctly. To do this, use the LAMP TEST key.
Ensure the batteries are sufficiently charged
and functioning correctly. If not, replace them
immediately.
CAUTION: Batteries must be replaced by a
trained person only.
Ensure all cables and connections are intact.
Ensure there are no unrelated objects inside the
control panel case.
Ensure the control panel is capable of
processing a fire alarm, and if sounders
are present in the system, they activate in
consequence of this alarm. If there is a facility
for transmission of fire alarm signals to a
central station, ensure that the signal is
correctly received.
Verify the functionality of the circuit for the
detection of earth fault. The procedure is as
follows:
a. Connect one of the SH terminals of the
loop to the panel earth.
b. Verify that the fault is reported correctly
by the panel.
c. Remove the connection previously made.
Note: Points 1 and 2 can be carried out
by users. Points 3, 4, 5, 6, and 7 must be
carried out by qualified persons.
