FireClass FC700 Series Quick Installation Instructions

FireClass Fire detection system
FireClass FC700 Series Panels – Quick
Installation Instructions
Introduction
This guide describes how to mount the FC700
series of panels on the wall. After mounting the
units, complete the installation, as described in
the full FireClass Panels Installation guide.
DANGER
The FireClass FC700 series
control panels can contain high
voltages, producing a danger of
death or serious injury.
Take necessary precautions and
note all warnings in guides an
product labelling.
Installation

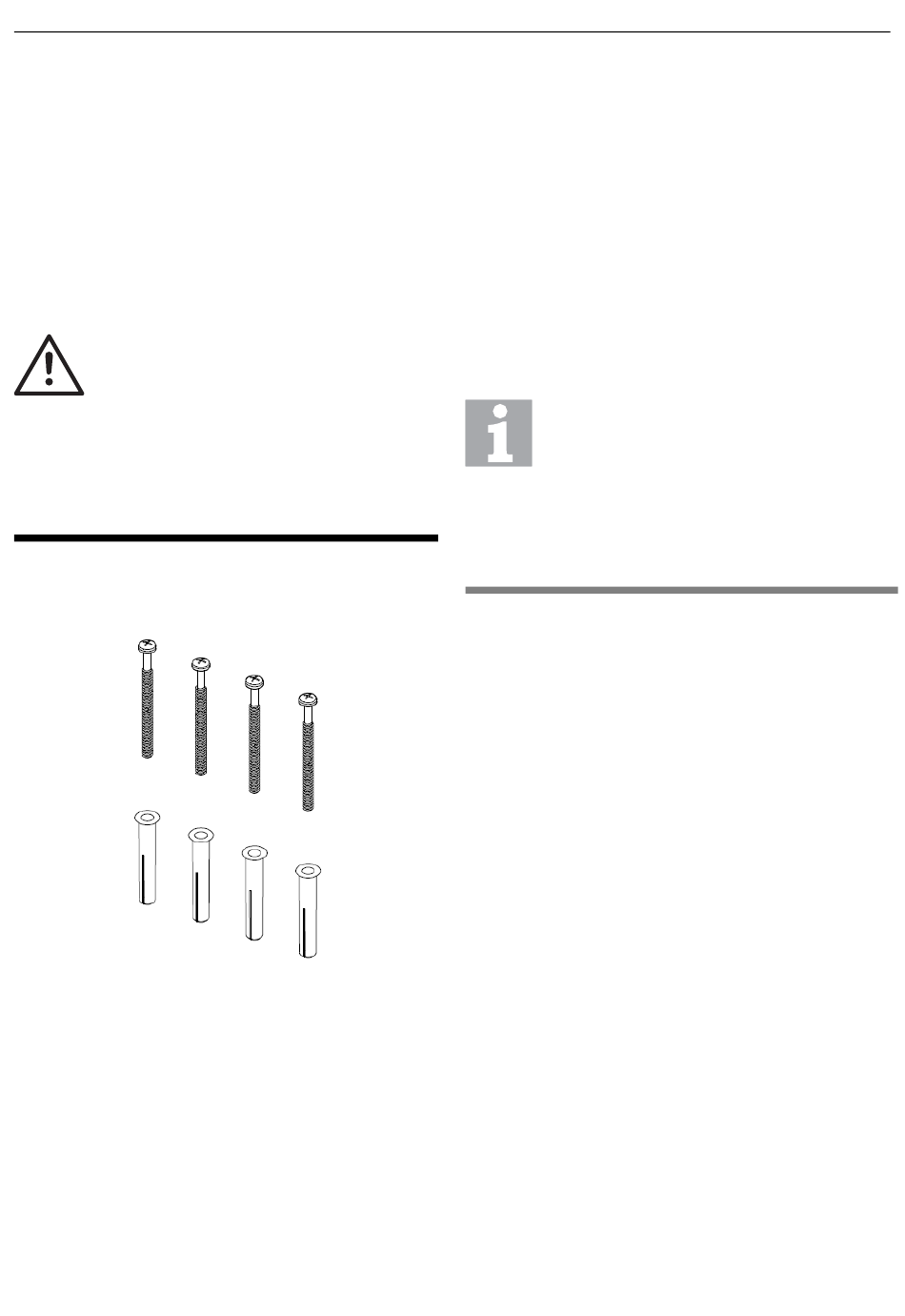

Fig. 1: Screws and wall plugs (the screws are approxi-
mately 63mm long)
Mounting a FC700 series
panel to the wall
After checking that the mounting location is
suitable, attach the mounting plate of the
unit to the wall, then attach the panel to this
plate.
Fixing instructions Doc. version 1.0
1 Check the mounting location.
– The alarm system units are not weather-
proof. Check that the location is indoors
and is dry and free from excessive dust.
– Determine the mounting positions and
use the dimensions in Fig. 3 for a
FC702S panel and Fig. 4 for a FC702D,
FC718D or FC708D panel.
2 Fix the mounting plate to the wall
Note
Ensure that the wall fixings are
strong enough to support the
weight of the mounting plate and
panel. Note that the battery size
has an impact on the housing
weight.
– Hold the mounting plate up to the wall
and mark on the wall a position for the
upper mounting hole. Make sure that the
plate is the right way up. See the arrow
pointing upwards on the mounting plate.
Refer to Fig. 2.
– Drill a hole to accept the supplied wall
plug and insert the plug. To identify the
plugs and screws to use, refer to Fig. 1.
– Fix the plate using the upper drill posi-
tion.
– Mark the drill positions on the wall for the
two bottom holes.
– Move the mounting plate out of the way
and drill the bottom two holes.
– Insert the wall plugs and fix the mounting
plate to the wall with the screws.
– Tighten all of the screws and check that
the mounting plate is secure.
3 Remove knockouts from the unit housings
where necessary, as required by the
cabling runs.
– For example, loop wiring needs access
at the top of the panel.
