Mercia Garden Products 0628PNNE0303HGDD1SW-V1 Manual

28mm 3m x 3m pent log cabin
Hide thumbs

Advertisement

Table of Contents

x2
2mm Drill bit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0628PNNE0303HGDD1SW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 0628PNNE0303HGDD1SW-V1

Summary of Contents for Mercia Garden Products 0628PNNE0303HGDD1SW-V1

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.

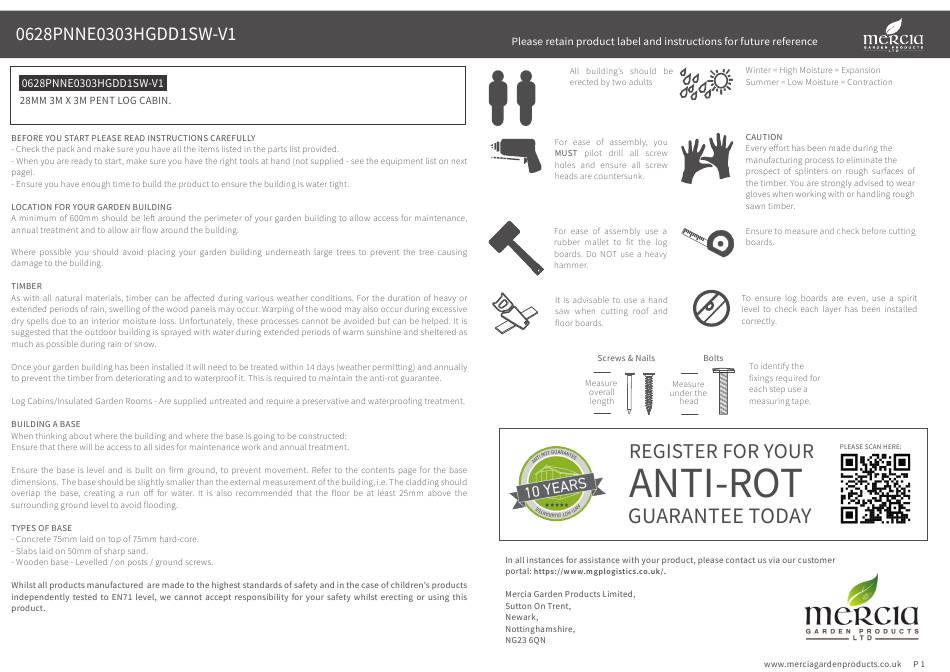

  • Page 3 Before assembly PLEASE SCAN HERE: ANY QUESTIONS? please make sure you have a Tip: Labelling your parts, using a pencil and masking tape, suitable base ready to erect your Scan code building may help you to identify them easier when you need them. contact us via our customer portal.
  • Page 4 Door Contents: Fixing Kit Contents: Floor Bearer - 44x44x2804mm QTY 2 F4444-2804mm-PT Floor Bearer - 44x44x2716mm QTY 10 F4444-2716mm-PT Purlin - 45x120x3000mm QTY 2 F45120-A-3000mm Master Door QTY 1 Secondary Door QTY 1 Roof Board - 16x121x3300mm QTY 28 (Morticed for lock) AI-06LOGDGSD750X1900-V4 MB16-3300mm AI-06LOGDGMD750X1900-V4...

  • Page 5: Window Contents

    Screw Pack. Window Contents: There may be extra screws present in the pack. 30mm Screw x 130 70mm Bolt Set x 16 20mm Screw x 8 80mm Screw x 8 70mm Screw x 69 Felt Tacks x 250 40mm Screw x 344 Window QTY 1 Window Frame QTY 1 AI-06LOGDGSW702X1264-V1...

  • Page 6: Pre-Assembly

    Pre-assembly PLEASE SCAN HERE: Step 1 Parts Needed - No. 10 QTY 2 No. 11 QTY 2 *Please note: Each board interlocks at either end in a staggered pattern. Lay the bearers (No. 10 & 11) onto a rm and level base (free from areas where standing water can collect) ensuring the bearers are at and level and the ends are ush, as shown.
  • Page 7 Step 3 Step 2 Parts Needed - No. 1 QTY 2 Parts Needed - No. 11 QTY 8 No. 2 QTY 2 Following the same method shown in the previous step, arrange the remaining bearers (No. 11) inside the Place the starter boards (No.1) on to the front and back of the assembled bearers and lightly position the rst assembled frame, ensuring each piece is ush and level.
  • Page 8 Step 4 Step 5 Parts Needed - No. 2 QTY 18 Parts Needed - No. 28 QTY 1 No. 3 QTY 6 No. 29 QTY 1 No. 4 QTY 6 No. 30 QTY 1 No. 31 QTY 1 Following the method shown in the illustration, lay the rst 6 boards (No. 2, 3 & 4) o of the starter boards to create your rst level.
  • Page 9 Step 6 Parts Needed - No. 26 QTY 1 No. 27 QTY 1 No. 34 QTY 6 The Adjustable Door Hinge (No. 34) comes in three parts. Secondary Door Fasten parts No. 34a and 34b of the Adjustable Door Hinge together by screwing part 34a into 34b, as Master Door shown in the illustration.
  • Page 10 Step 8 Step 7 Parts Needed - No. 2 QTY 18 No. 4 QTY 12 To adjust and align your doors: No. 5 QTY 6 1. Lift up the doors to separate the two parts of the hinge. Once you have laid 6 log boards (o of the starter board) up the door section, slide the assembled door frame over the boards, ensuring to rest the frame on top of the starter board.
  • Page 11 Step 9 Parts Needed - No. 21 QTY 2 No. 39 QTY 1 No. 41 QTY 1 No. 43 QTY 2 Open the hinges (No.41) following the directional arrow given on the top of the hinge. Lay the assembled window frame (No. 39) on a at and level surface. Please note: The window can be hinged to open on either the left or the right, depending on where you position your hinges.
  • Page 12 Step 10 Step 11 Parts Needed - No. 38 QTY 1 Parts Needed - No. 2 QTY 18 No. 4 QTY 12 With the hinges (No. 41) open in the frame, locate the Window (No. 38) onto the bottom hinge, No.
  • Page 13 Step 12 Step 13 Parts Needed - No. 2 QTY 3 Parts Needed - No. 8 QTY 2 No. 6 QTY 1 No. 20 QTY 4 Following the method shown in the illustration, lay the next layer of boards (No. 2 & 6) onto Lay both Gables (No.
  • Page 14 Doors on the Front Doors on the Side Step 14 Step 15 Parts Needed - No. 2 QTY 2 Parts Needed - No. 2 QTY 1 No. 8 QTY 2 No. 7 QTY 1 No. 9 QTY 2 Following the method shown in the illustration, lay the next layer of boards (No. 2), and the Gables (No.
  • Page 15 Step 17 Step 16 Parts Needed - No. 7 QTY 1 Parts needed - No. 12 QTY 2 Following the method shown in the illustration, place the Finisher board (No. 7) onto the Align the Purlins (No.12) into the cut out notches on the Gables, ensuring they interlock. log cabin.
  • Page 16 Step 19 Step 18 Parts Needed - No. 15 QTY 2 Parts needed - No. 13 QTY 28 No. 21 QTY 5 Ensuring the roof boards are ush and level, locate the Eaves Frames (No. 15) to the underside of the roof Place the rst roof board (No.
  • Page 17 Step 20 Step 21 Parts Needed - No. 38 QTY 1 Parts Needed - No. 42 QTY 1 Once the Roof is secured, open the window hinges and re-position the Window (No. 38) onto the hinges (as With the window (No.38) shut tight, from the inside locate the Window Handle (No.42) onto the window and previously done in step 10) and x in place using the same 3x30mm screws per hinge.
  • Page 18 Step 23 Step 22 Parts Needed - No. 36 QTY 1 Lift each Door onto the already existing hooks on the door frame, ensuring the hook and bands connect. Open the Master Door (No. 26) and locate the Cylinder Lock (No. 36) into the lock shaped hole in the Central Lock.
  • Page 19 Step 24 Step 25 Parts Needed - No. 32 QTY 1 Parts Needed - No. 35 QTY 1 No. 37 QTY 2 From the Handle set (No. 35) position the Metal bar through the central lock and connect one handle onto Attach the Door Strip (No.
  • Page 20 Step 26 Step 27 Parts Needed - No. 14 QTY 26 Parts needed - No. 18 QTY 5 Place the rst oor board (No. 14) inside the building ush to the log board on one side. Continue adding Inside the building place the closure trim (No. 18) against the boarding and align with the roof as shown in the oor boards (internally) making sure to interlock each individual board.
  • Page 21 Step 28 Parts needed - No. 18 QTY 5 Once the oor has been laid, arrange the closure trim (No. 18) around the outside edge of oor (internally), measure and cut down accordingly to best match the internal space. Secure each trim section into place using 6x30mm spaced equally along the board as shown in the illustration.
  • Page 22 Step 29 Parts Needed - No. 22 No. 23 No. 25 QTY 1 Cut the Sand Capping Felt (No.22) into one sheet measuring: 3100mm (L) x 300mm (W) Cut the Sand Felt (No.23) into four sheets measuring: 3100mm (L) x 1000mm (W). Lay the sheets onto the roof in the order shown, starting with the Capping Felt (No.22) as the rst sheet laid, then the remaining four sheets (No.23), as shown.
  • Page 23 Step 30 Parts Needed - No. 24 No. 25 QTY 1 Cut the Green Felt (No.24) into four sheets measuring: 3100mm (L) x 1000mm (W). Lay the sheets onto the roof in the order shown. Ensure the sheets overhang each side by 50mm and overlap each other by 100mm.
  • Page 24 Step 31 Step 30 Parts needed - No. 19 QTY 8 Parts Needed - No. 16 QTY 2 No. 17 QTY 2 Arrange the storm braces (No.19) around the building (internally), placing two storm braces per wall. Attach the Fascias (No. 16) to the front and back of the log cabin (ensuring to trap the felt in between the fascias) securing in place by screwing through the Fascia into the Eaves Frames using 4x40mm screws per *Ensure the storm braces are secured at the highest point possible on each side.
  • Page 25 Step 32 Step 33 Parts Needed - No. 33 QTY 1 No. 40 QTY 1 Once constructed, apply a preserving and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. Attach the Rain Guard (No.
