Mercia Garden Products 0628AXGZ0303NDNW-V1 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0628AXGZ0303NDNW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 0628AXGZ0303NDNW-V1

Summary of Contents for Mercia Garden Products 0628AXGZ0303NDNW-V1

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.

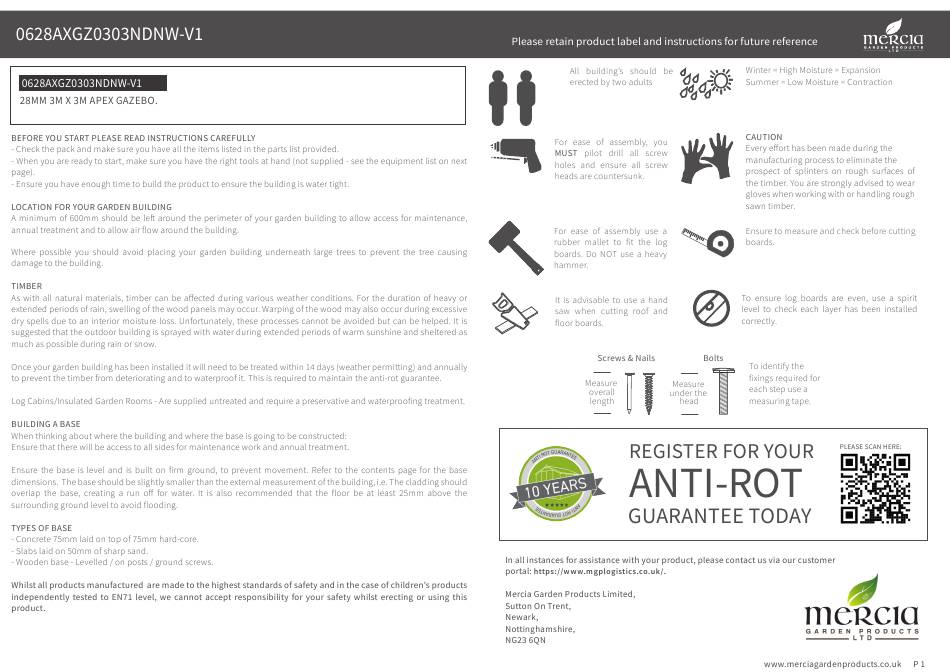

  • Page 3 Tip: Labelling your parts, using a pencil and masking tape, Before assembly PLEASE SCAN HERE: ANY QUESTIONS? please make sure you have a may help you to identify them easier when you need them. suitable base ready to erect your Scan code building...
  • Page 4 Fixing Kit Contents: Fixing Kit Contents: Bearer - 44x44x2720mm QTY 2 Fascia - 16x120x3100mm QTY 2* F4444-2720mm-PT S16120-3100mm Bearer - 44x44x2808mm QTY 2 Fascia - 16x120x1700mm QTY 2* F4444-2808mm-PT S16120-G-1700mm (1x angled cut) Angled bearer - 44x44x440mm QTY 4 F4444-G-440mm-PT (2 x angled cuts, nished length 400mm) Storm Brace - 27x44x2000mm QTY 8 F2744-2000mm Purlin - 45x120x3004mm QTY 3...

  • Page 5: Missing Parts

    Screw Pack. Pre-assembly There may be extra screws present in the pack. *Please note: 70mm Bolt Set x 16 Each board interlocks at either end in a staggered pattern. 30mm Screw x 30 Before securing ensure that the boards are tted properly in their respective tongue’s and groove’s. 70mm Screw x 76 Felt Tacks x 160 40mm Screw x 228...
  • Page 6 Step 2 Step 1 Parts Needed - No. 12 QTY 2 Parts Needed - No. 1 QTY 2 No. 2 QTY 1 No. 13 QTY 2 No. 14 QTY 4 No. 3 QTY 2 Lay the bearers (No. 12 & 13) onto a rm and level surface (free from areas where standing water can Place the starter boards (No.
  • Page 7 Step 3 Step 4 Parts needed - No. 2 QTY 18 Parts needed - No. 2 QTY 6 No. 3 QTY 12 No. 3 QTY 12 No. 4 QTY 24 Following the method shown in the illustration, lay the rst six boards (No. 2 & 3) o of the starter boards to create your rst level.
  • Page 8 Step 5 Step 6 Parts needed - No. 16 QTY 2 Parts needed - No. 16 QTY 2 No. 17 QTY 4 No. 17 QTY 4 No. 18 QTY 2 Arrange the Window Cill (No.16) and two Window Frames (No.17) as shown in the illustration, ensuring the framing slots together, is ush and level.
  • Page 9 Step 7 Step 8 Parts needed - No. 2 QTY 3 Parts needed - No. 2 QTY 6 No. 3 QTY 4 No. 6 QTY 4 No. 4 QTY 12 No. 7 QTY 4 No. 5 QTY 4 No. 9 QTY 2 No.
  • Page 10 Step 9 Step 10 Parts needed - No. 4 QTY 4 Parts needed - No. 11 QTY 2 Following the same method used in the previous step, lay the last four boards (No. 4) Place the Gables Tops (No. 11) onto the front and back of the Log cabin. onto the Log cabin.
  • Page 11 Step 11 Step 12 Parts needed - No. 15 QTY 3 Parts needed - No. 19 QTY 56 No. 29 QTY 5 Align the Purlins (No.15) into the cut out notches on the Gables, ensuring they interlock. Place the rst two roof boards (No. 19) onto either side of the log cabin, making sure the boards are ush to the end of the roof purlin.
  • Page 12 Step 14 Step 13 Parts needed - No. 20 QTY 2 Once the roof is secured, re-position the Door Frames (No.18) so they are ush to the rst overhanging log board, and the gap is at the bottom, as shown. Ensuring the Roof Boards are ush at the overhanging side and meet at the apex, locate the Eaves Frames (No.
  • Page 13 Step 27 Step 16 Parts needed - No. 27 QTY 5 Parts needed - No. 28 QTY 1 Inside the building place the closure trim (No. 27) against the boarding and align with the roof as shown in Cut the felt (No. 28) into four strips measuring: 3200mm (L) x 1000mm (W). Lay the sheets onto the roof in the the illustration.
  • Page 14 Doors on the Front Doors on the Side Step 17 Step 18 Parts needed - No. 24 QTY 4 Parts needed - No. 21 QTY 2 No. 25 QTY 2 No. 22 QTY 2 No. 23 QTY 4 Locate the Fascias (No. 24) onto the sides of the log cabin, and the Fascias (No. 25) onto the front and back of the log cabin.
  • Page 15 Step 20 Step 19 Parts needed - No. 26 QTY 8 Once constructed, apply a preserving and a waterproo ng treatment to your garden building as soon as Arrange the storm braces (No.26) around the building (internally), placing two storm braces per wall. possible.
  • Page 16 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
