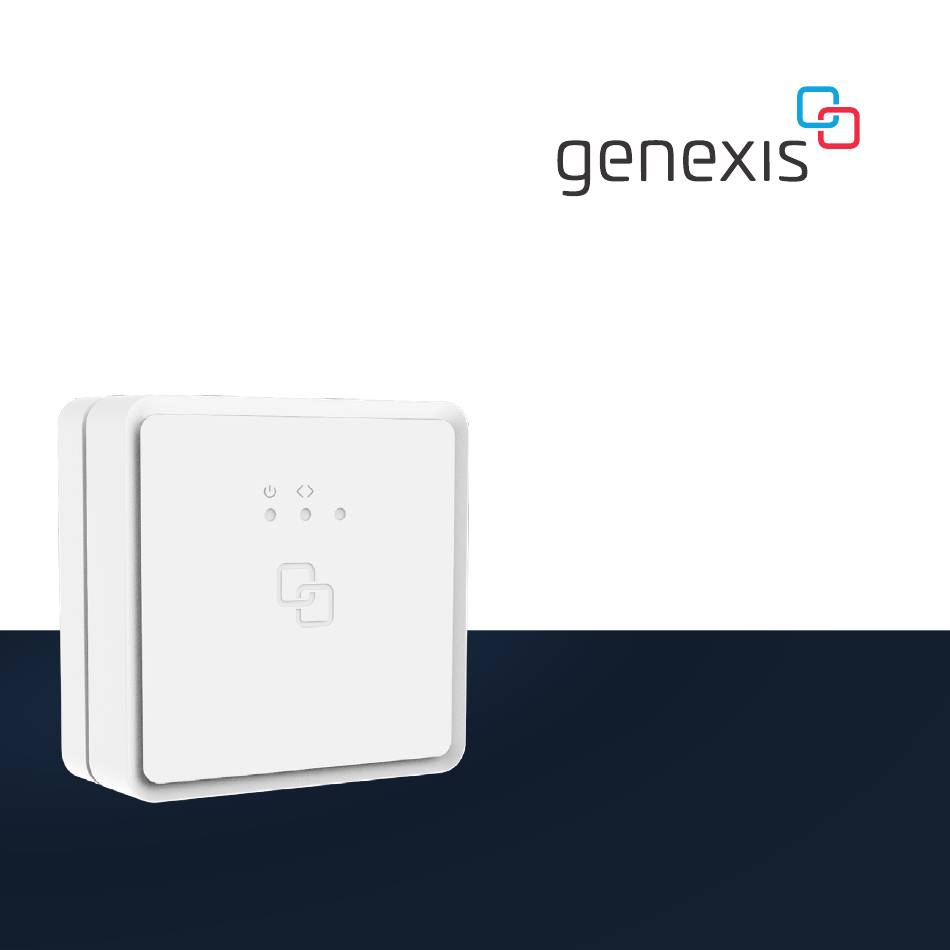

FiberTwist
P3410B/P3411B
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fiber Twist P3410B and is the answer not in the manual?

Questions and answers

Related Manuals for Genexis Fiber Twist P3410B

Summary of Contents for Genexis Fiber Twist P3410B

  • Page 1 FiberTwist P3410B/P3411B Installation Guide...

  • Page 2: Button Overview

    Button overview Port overview LAN ports Power Port Unlock button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset - press and release Factory reset - press and hold the button until System and Uplink LED start to blink LED dim button Dim LEDs –...

  • Page 3: Led Overview

    LED overview System Green – system ok Green (blinking) – booting Red – system or booting failure Red (blinking) - insufficient PON signal Off – power off Uplink Green – link ok Green (blinking) – link establishing Off – no link System + Uplink Green (blinking) –...
  • Page 4 1. Press and hold the unlock button (see button overview). Box contents 2. Rotate the Blind Cover counterclockwise till it blocks. • Genexis FiberTwist (active Important: Instructions need 3. Remove the Blind Cover from the baseplate (FTU) by pulling device) to be followed precisely it towards yourself.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.

  • Page 6: Eu Declaration Of Conformity

    Connecting the FiberTwist 1. Connect your gateway to a LAN port via an RJ45 network cable. Hereby, Genexis Netherlands B.V. declares that the products FiberTwist- 2. Connect the supplied power adapter to the FiberTwist and plug the P3410B and FiberTwist-P3411B are in compliance with Directives adapter into a power socket.
  • Page 7 Revision 3.0 - March 2024 - Copyright © 2024 Genexis Netherlands B.V. All rights reserved. Multiple languages of this document and additional product information are available on https://genexis.eu/product/fibertwist/downloads Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the...

This manual is also suitable for:

Fiber twist p3411b
