Rowlinson Garden Products SS635 Assembly Instructions Manual

Before assembly
• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide.
The instruction sheet is only a guide to the
assembly. Certain items may not be shown
to scale.
• Check all components prior to assembly
• This product should be assembled by no less
than two people
• Drill all components where indicated
• Gloves are recommended when handling
components
x 2
Gloves
Drill
Biocidal Products Regulation EU 528/2012
Wolmanit® CX treated wood, is a treated article incorporating
biocidal products: copper hydroxide
cyclohexyl-diazenium-dioxy)-copper and Boric Acid. They
protect wood against fungal decay, rot and insect attack. Wear
gloves when handling freshly treated wood. Avoid breathing dust
when cutting wood. Dispose of off-cuts responsibly.
Recommended tools for assembly
• Power Drill/Screwdriver
• Cross-head drill bit
• 3mm diameter drill bit
• 6mm diameter drill bit
• 12mm diameter drill bit
• Tape measure
• Hammer
• Sharp knife
• Spirit level
• Step ladder

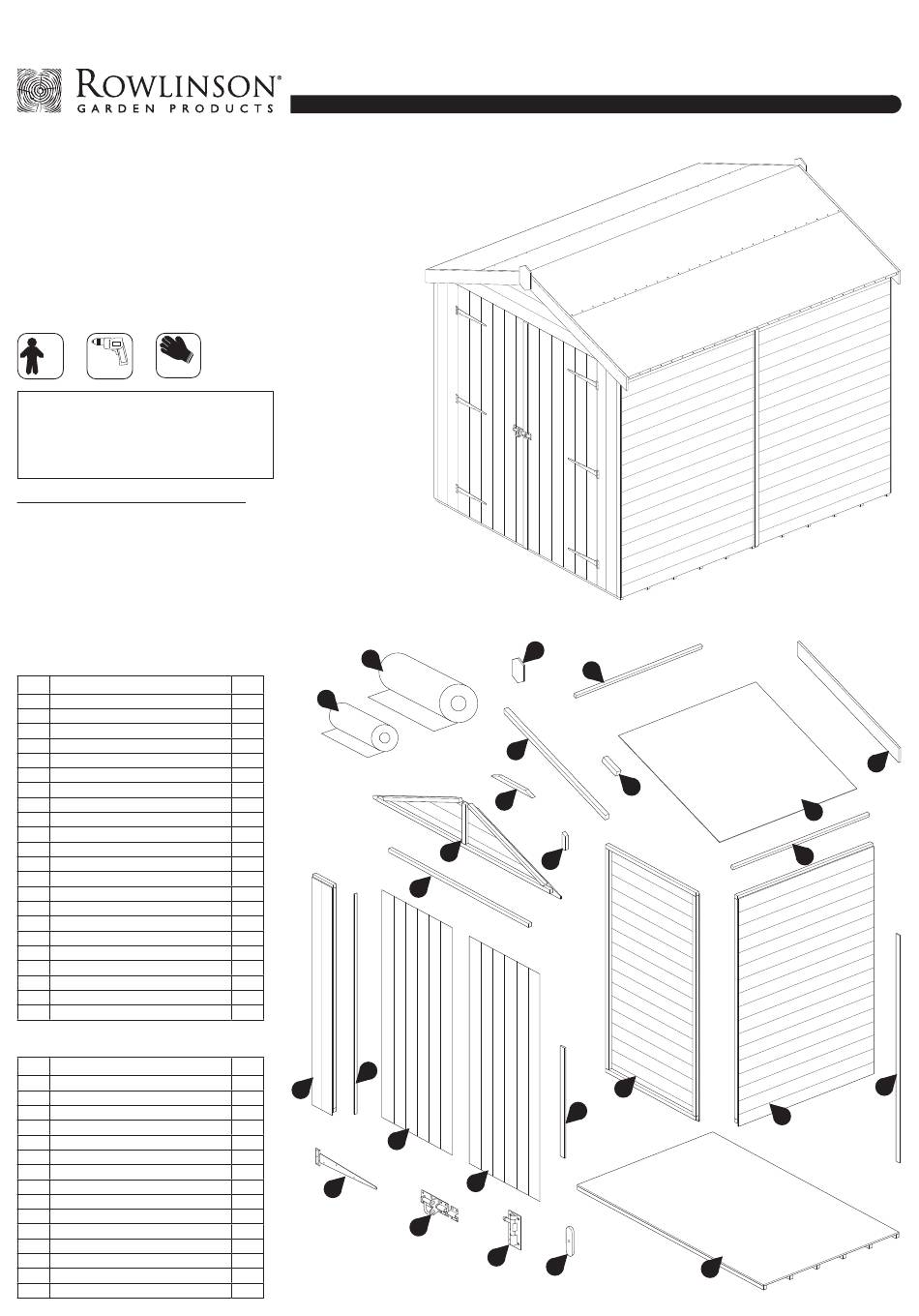

No. Components
1 Floor
2 Side wall panel
(Width 1174mm)
3 Back wall panel
(Width 860mm)
4 Front panel
(Width 190mm)
5 Apex panel
6 Roof rafter
7 Roof rafter support block
8 Roof rafter brace
9 Roof rafter block
(Length 150mm)
10 Roof purlin
(Length 1174mm)
11 Felt batten
(Length 1186mm)
12 Roof panel
13 Roof felt roll
(5m)
14 Roof ridge felt roll
(2.5m)
15 Door header rail
(28x28x1340mm)
16 Door rebate strip
(12x22x1685mm)
17 Left door
(tower bolt mounting blocks)
18 Right door
19 Door weatherstrip
(12x48x830mm)
20 Coverstrips
(12x40x1715mm)
21 Bargeboard
22 Finial
No. Fixing Kit
23 T-Hinge
24 Pad bolt
25 Tower bolt
26 Turn button
27 50mm coach bolt
28 Nut
29 Washer
30 60mm screws
31 50mm screws
32 32mm screws
33 25mm screws
34 20mm screws
35 19mm round head screws
36 30mm nails
37 10mm felt nails
8'x6' Shiplap
Double Door Shed
Assembly Instructions
carbonate, bis(N-
1
1 3
Qty.
1
1 4
2
4
2
2
2
2
2
1
4
4
4
4
1
1
1
2
1
1
2
7
4
2
Qty.
16
6
4
1
2
1
4
4
4
14
23
48
44
49
6
12
65
128
22
6
8
5
7
15
17
18
24
25
26
English SS635
1
1 0
9
3
19
1
21
12
11
20
2
