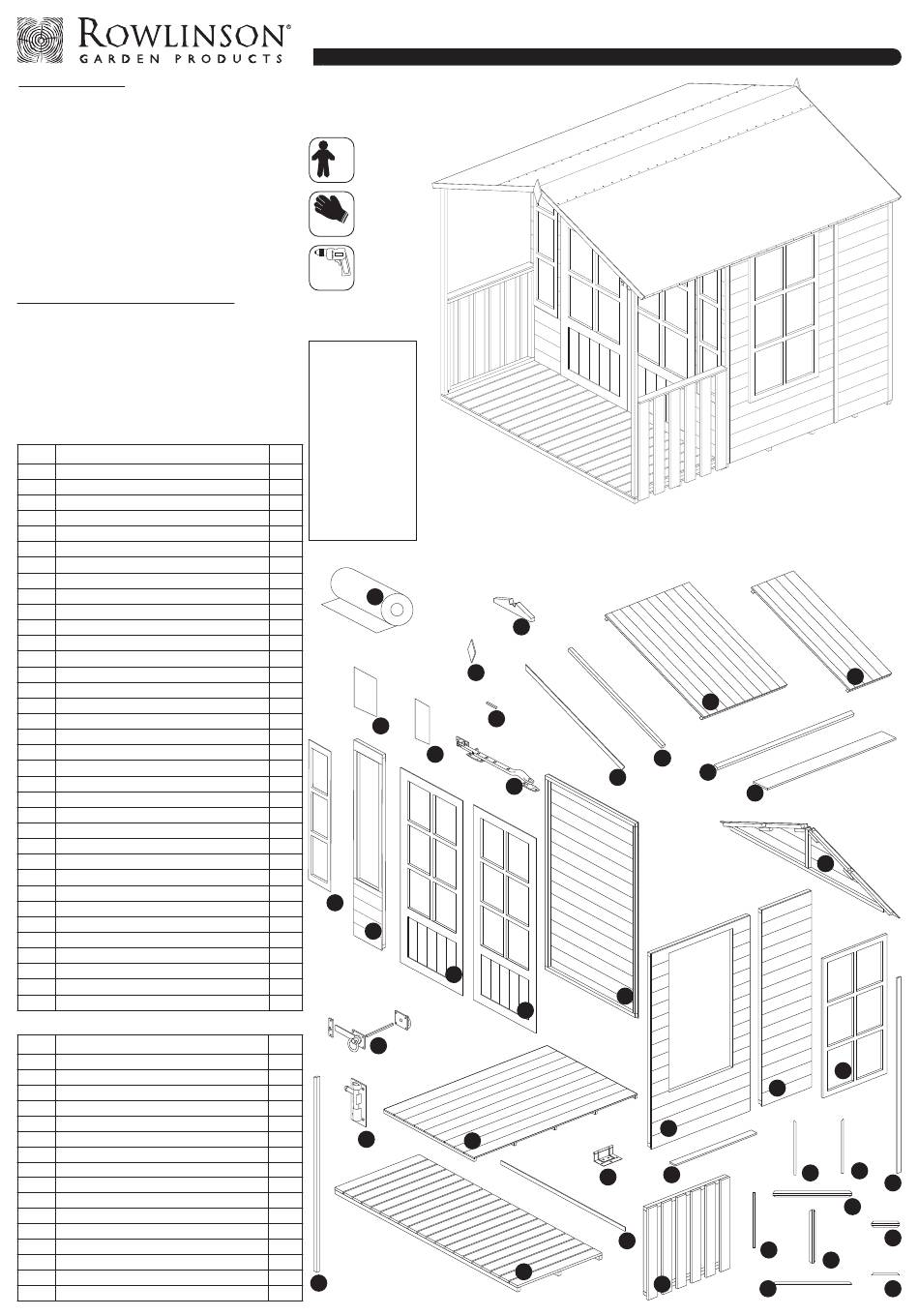

Rowlinson Garden Products Arley SS434 Assembly Instructions Manual

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then follow
the easy step by step guide. The instruction
sheet is only a guide to the assembly. Certain
items may not be shown to scale.
•
Check all components prior to assembly.
•
This product should be assembled by no less
than two people.
•
Some of the components may have sharp edges
wear protective work gloves while
handling components.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
Recommended tools for assembly
•
Cordless drill/screwdriver
•
2mm diameter drill bit
•
12mm diameter drill bit
•
Hammer
•
Sharp knife
•
Hacksaw
•
Spirit level
•
Silicon sealant
•
Step ladder
No. Components
1 Floor panel
2 Large wall panels
3 Small wall panels
4 Window side panel
5 Front panel
6 Front window frame
7 Left door
8 Right door
9 Apex panels
10 Large roof panel
(1000mm)
11 Small roof panel
(505mm)
12 Front/rear roof rafters
(35 x 29 x 1070mm)
13 Roof purlins
(36 x 29 x 1590mm)
14 Coverstrip
(48 x 12 x 1690mm)
15 Kick strip
(38 x 12 x 1360mm)
16 Side window frame
17 Glazing
(370 x 264mm)
18 Glazing
(190 x 370mm)
19 Roof felt roll
(8m)
20 Bargeboards
(48 x 12 x 1150mm)
21 Internal apex cover
(110 x 12 x 1495mm)
22 Verandah floor
23 Verandah fence
24 Verandah fence hand rail
25 Verandah roof support uprights
26 Verandah roof gusset
27 Door/window bead top/bottom
28 Door/window bead TR/BL*
29 Door/window bead TL/BR*
30 Door/window bead middle
31 Door/window vertical spar
32 Door/window horizontal spar
33 Small window bead top/bottom
34 Small window horizontal spar
35 Finial
*TR/BL = Top right/bottom left
TL/BR = Top left/bottom right
No. Fixing Kit
36 Door frame beading
(10 x 10 x 100mm)
37 Latch door handle kit
38 Hinges
39 Window stay
40 Tower bolts
41 70mm screws
42 63mm screws
43 50mm screws
44 35mm screws
45 25mm screws
46 20mm screws
47 19mm round head screws
48 19mm black round head screws
49 40mm nails
50 25mm panel pins
51 10mm felt nails
Arley Summerhouse 7x5
Assembly Instructions
x 2
Gloves
Drill
Dimensions:
Overall external:
Height = 2220mm
Width = 2130mm
Depth = 2505mm
Footprint:
Qty.
Width = 1980mm
2
Depth = 2400mm
2
Min. base area:
2
Width = 2080mm
2
Depth = 2500mm
2
2
1
1
2
19
4
2
4
4
7
1
2
24
17
6
1
4
1
1
2
2
2
1
8
(14x10x555mm)
12
(14x10x380mm)
6
12
(14x10x380mm)
12
(14x10x390mm)
5
12
(44x10x360mm)
8
(44x10x537mm)
4
(14x10x195mm)
4
(44x10x537mm)
2
Qty.
37
1
1
10
2
2
2
40
8
63
42
54
8
8
10
41
216
25
128
26
35
36
18
39
7
8
1
38
22
English SS434
10
12
13
20
21
2
3
4
24
15
30
23
27
11
9
16
28
29
14
32
34
31
33
