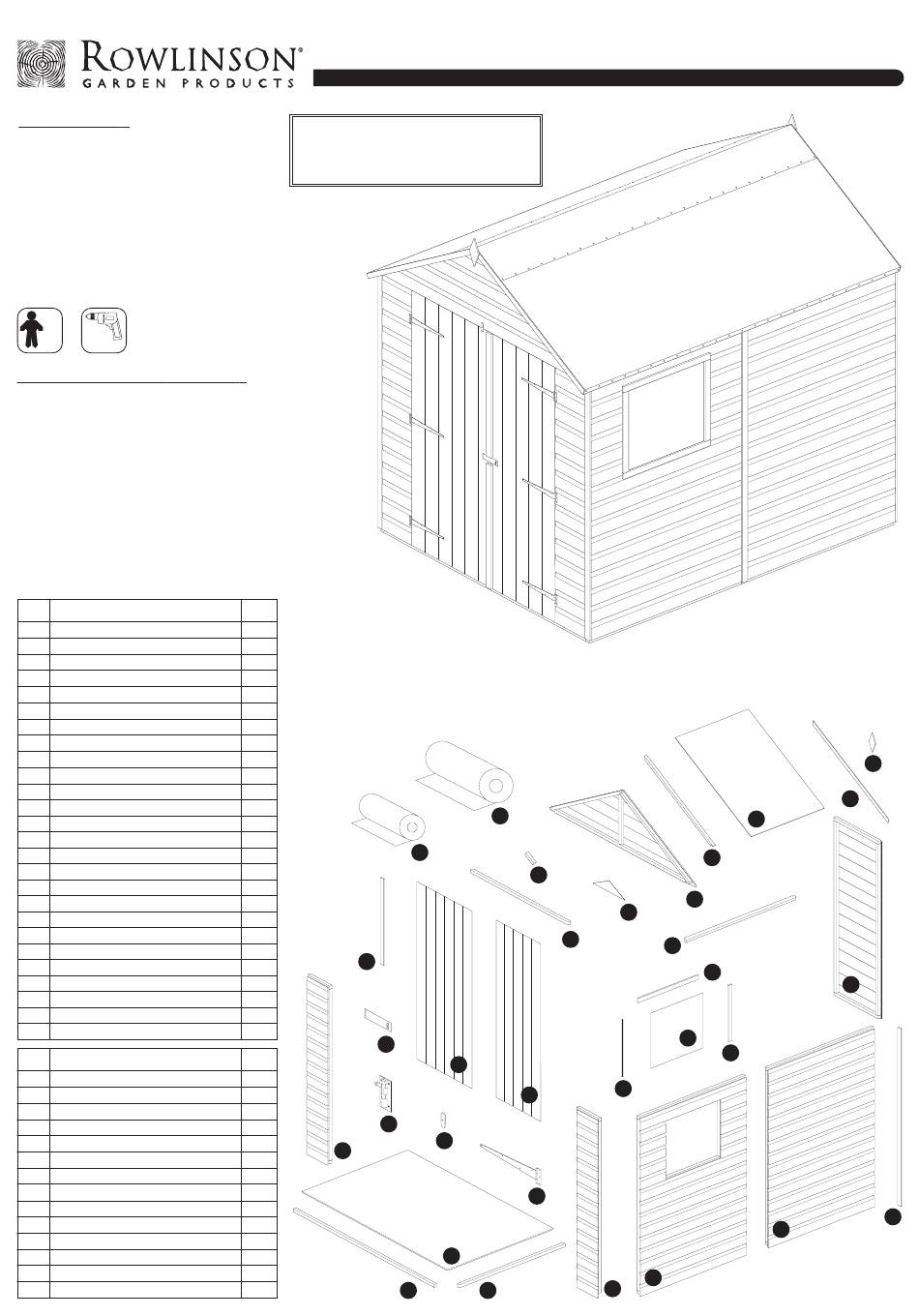

Rowlinson Garden Products SS193A Assembly Instructions

Before assembly

•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than 2 people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill

Recommended tools for assembly

•
Cross head screw driver
•
Hammer
•
Sharp knife
•
Drill
•
4mm diameter drill bit
•
Spirit level
•
Silicon sealant
•
Step ladder
No.

Components

1 Floor panel
2 Short floor bearer
(29 x 29 x 1174mm)
3 Long floor bearer
(29 x 29 x 1710mm)
4 Window panel
5 Large plain panel
6 Small plain panel
7 Right front panel
8 Left front panel
9 Apex panel
10 Door header rail
(29 x 29 x 1182mm)
11 Roof rafter
12 Roof panel
13 Roof gusset
14 Felt batten
(29 x 29 x 1213mm)
15 Felt batten block
16 Left door
17 Right door
18 Roof felt
(5m)
19 Ridge felt
(2.5m)
20 Coverstrip
(12 x 40 x 1730mm)
21 Window perspex
(560x610mm)
22 Plastic beading
(560mm)
23 Window Coverstrip
(12 x 40 x 670mm)
24 Window Coverstrip
(12 x 40 x 540mm)
25 Door coverstrip
(12 x 40 x 830mm)
26 Bardgeboard
No. Fixing kit
27 Finial
28 T-hinge (254mm)
29 Turn button
30 Hasp and staple
31 Towerbolt
63mm Screws
32
33 50mm screws
34 38mm screws
35 25mm screws
36 22mm screws
37 19mm round head screws
38 38mm nails
39 20mm nails
40 10mm felt nails

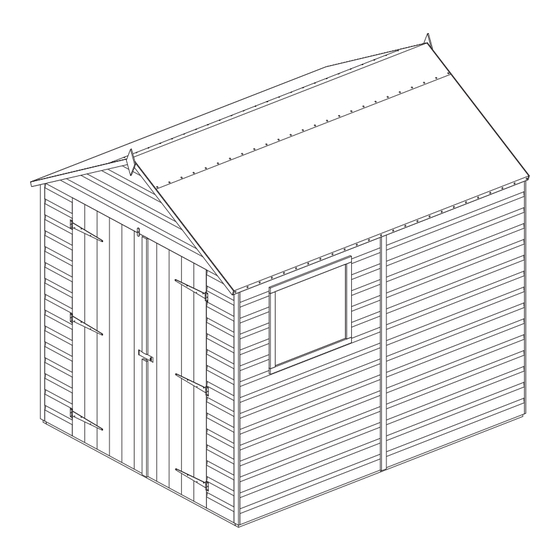

2.4 x 1.8 (8' x 6') Shiplap
Modular Shed
Assembly Instructions
RECOMMENDED BASE AREA
A recommended base area of no less
than 1870mm x 2450mm
Qty.
2
4
10
1
4
1
1
1
2
1
8
6
4
4
19
4
1
1
1
1
7
1
25
2
2
2
2
4
30
Qty.
2
6
1
31
1
2
8
16
40
16
42
7
19
167
6
120
3
18
15
10
16
17
29
28
1
7
2
English SS193A
12
11
9
13
14
23
21
24
22
5
4
27
26
6
20
