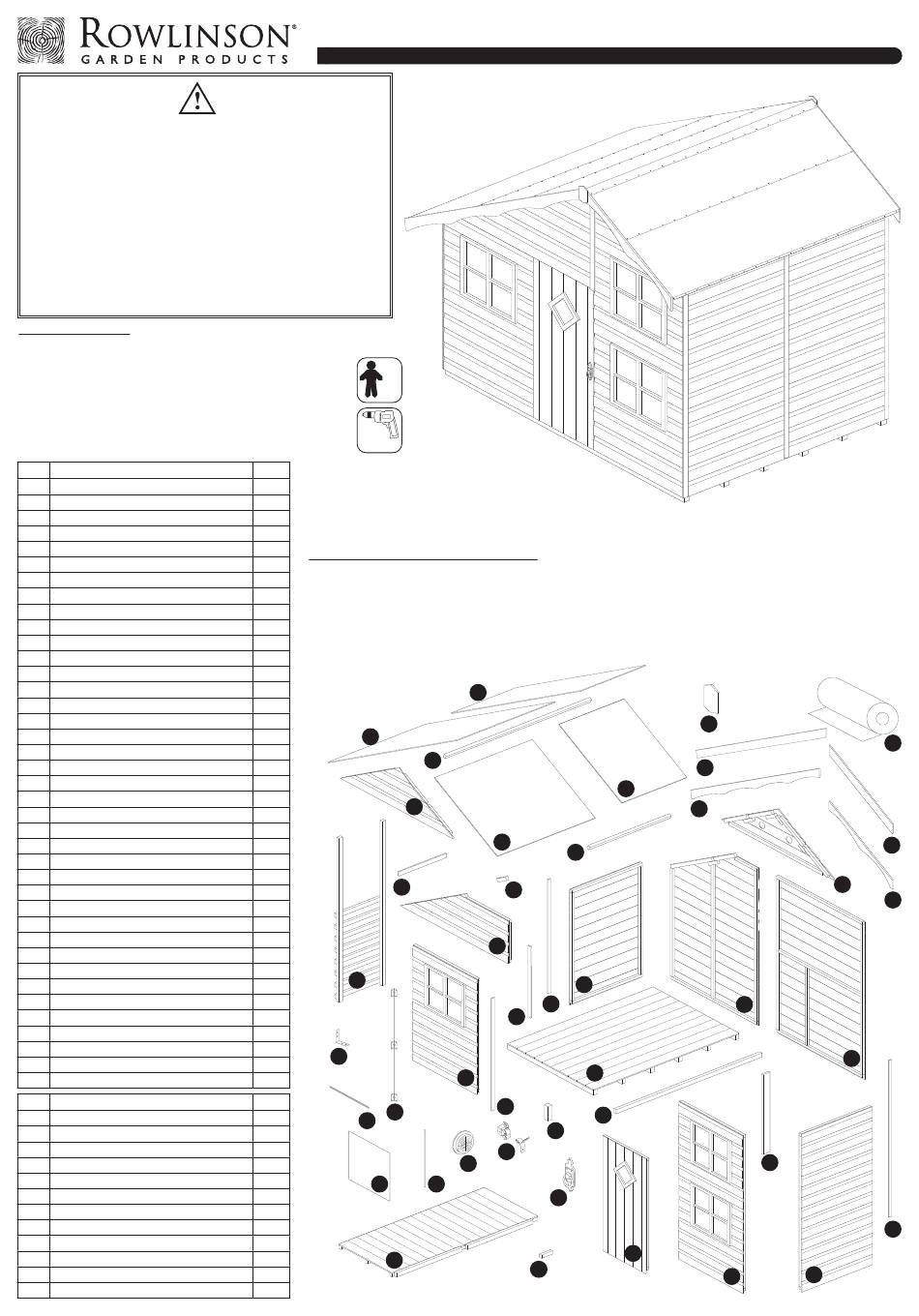

Rowlinson Garden Products Assembly instructions Assembly Instructions Manual

IMPORTANT SAFETY INFORMATION
• Warning - Not suitable for children under 36 months.
• Warning - Suitable for children up to 50Kg
(maximum 10 children).
• Warning - Only 2 children on the landing at anyone time.
• Warning - Only for domestic use.
• Warning - For outdoor use.
• Warning - Adult assembly is required.
Further Information regarding safety and maintenance can
be found on the back page. Please retain these instructions
for future reference.
Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then follow the
step by step guide. The instruction sheet is only a guide
to the assembly. Certain items may not be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than two adults.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
No. Components
1 Floor panel
2 Angled back panel
3 Landing support back panel
4 Small side panel
5 Large side panel
6 Large front window panel
7 Small front window panel
8 Door header panel
9 Front apex panel
10 Rear apex panel with vent holes
11 Landing floor
12 Landing support block
(35x28x100mm)
13 Fence top rail
14 Ladder
15 Ladder attachment piece
(500x45x32mm)
16 Fence railing
17 Purlin
(35x28x1815mm)
18 Small front roof panel
(980x1220mm)
19 Small Rear roof panel
(980x811mm)
20 Large front roof panel
(1900x1220mm)
21 Large rear roof panel
(1900x811mm)
22 Felt battens
(28x28x1015mm)
23 Batten blocks
(28x28x140mm)
24 Roofing felt roll
(10m)
25 Short shaped bargeboard
26 Long shaped bargeboard
27 Short plane bargeboard
28 Long plane bargeboard
29 Door
30 Long side/rear coverstrip
(12x40x1700mm)
31 Short side coverstrips
(12x40x1235mm)
32 Front coverstrips
(12x40x830mm)
33 Window glazing
(478x398mm)
34 Horizontal beading
(10x10x479mm)
35 Vertical beading
(10x10x382mm)
36 Door hinge strip
(12x40x1220mm)
37 Door hinge
38 Finial
39 Catch mounting block
(28x28x80mm)
No. Fixing Kit
40 Roller catch kit
41 Metal L-Brackets
42 Door handle
43 Vent
44 50mm screws
45 35mm screws
46 25mm screws
47 19mm black round head screws
48 10mm round head screws
49 30mm nails
50 20mm nails
51 10mm felt nails
Playaway Swiss Cottage
Assembly Instructions
x 2
Drill
Qty.
2
1
1
2
2
Recommended tools for assembly
1
• Power Drill/Screwdriver
1
• Cross-head drill bit
1
• 3mm diameter drill bit
1
• Spirit level
1
1
1
1
1
1
10
5 20
1
17
1
1
1
9
4
10
1
1
1
15
1
1
1
4
3
1
14
3
6
6
1
1
41
2
1
Qty.
37
1
34
2
1
2
72
33 35
85
26
4
4
86
11
36
139
• Tape measure
• Hammer
• Sharp knife
• Silicon sealant
21
19
18
22
23
8
4
31
32
1
7
36
13
39
40
43
42
29
12
English SS288F
38
28
26
10
2
3
16
5
6
24
27
25
30
