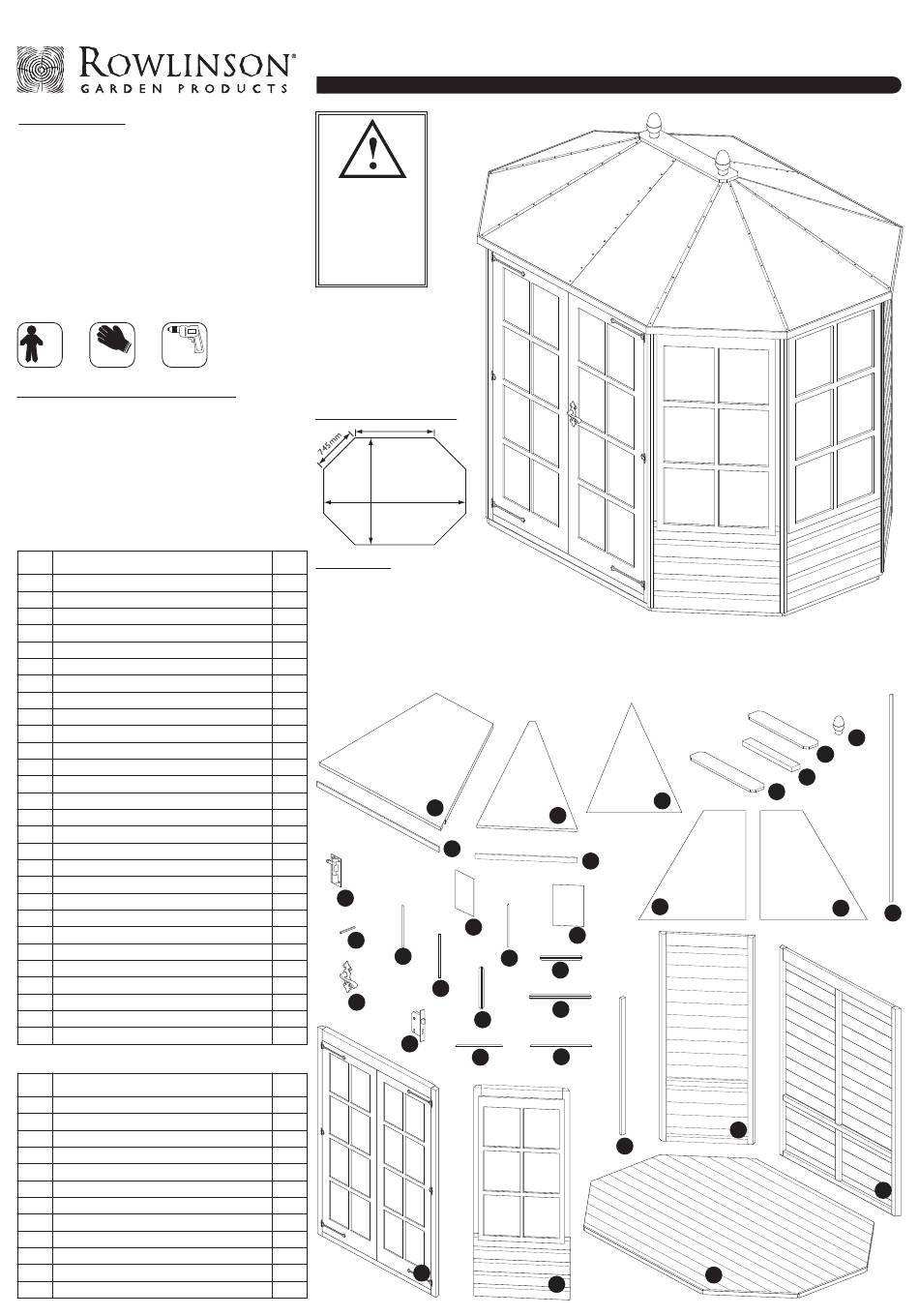

Rowlinson Garden Products SS024R Assembly Instructions

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then follow
the easy step by step guide. The instruction sheet is
only a guide to the assembly. Certain items may not
be shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than
two people.
•
Never attempt to erect the assembly in high winds.
•
Some of the components may have sharp
edges wear protective work gloves while
handling components.
•
Drill components where indicated.
x 2
Gloves Drill
Recommended tools for assembly
•
Cross head screw driver
•
Hammer
•
Sharp knife
•
Drill
•
3mm diameter drill bit
•
12mm diameter drill bit
•
Spirit level
•
Silicon sealant
•
Step ladder
•
Hacksaw
No. Components
1 Floor panel
2 Back panel
3 Plain panel
4 Window Panel
5 Door panel
6 Roof centre block
7 Large roof panel
8 Small roof panel
9 Left-hand Large roofing felt piece
10 Right-hand Large roofing felt piece
11 Small roofing felt piece
12 Roof cap
(640mm)
13 Inside roof cover
(670mm)
14 Acorn finial
15 Short bargeboard
16 Long bargeboard
17 Corner coverstrip
18 Window glazing
(372x263mm)
19 Door glazing
(372x190mm)
20 Window panel coverstrip
21 Door bead top/bottom
(14x10x405mm)
22 Door/window bead TR/BL*
23 Door/window bead TL/BR*
24 Door/window bead middle
25 Door/window vertical spar
26 Door horizontal spar
(44x10x390mm)
27 Window horizontal spar
(44x10x537mm)
28 Window bead top/bottom
(14x10x555mm)
*TR/BL = Top right/bottom left
TL/BR = Top left/bottom right
No. Fixings
29 Door lock and catch plate set
30 Door handle kit
31 Door handle spindle
32 Tower bolt
33 63mm screws
34 50mm screws
35 25mm black screws
36 25mm brass screws
37 19mm roundhead screw
38 30mm nails
39 25mm panel pins
40 10mm felt nails
Ryton 8'x6'
Octagonal Summerhouse
Assembly Instructions
Caution
This product
contains glass.
Wear protective
work gloves while
handling these
components.
Footprint Dimensions
Qty. Dimensions
•
Overall dimensions
1
H= 2560mm
1
W= 2480mm
2
D= 1945mm
4
•
Min. recommended base size
1 W= 2425mm
D= 1900mm
1
2
6
2
2
6
1
1
2
6
2
16
24
16
32
8
(35x29x1200mm)
4
12
(14x10x380mm)
31
12
(14x10x380mm)
16
(14x10x390mm)
20
(44x10x360mm)
6
30
8
8
Qty.
1
1
1
2
78
28
8
4
12
88
258
200
1270mm
1800mm
2325mm
7
16
19
23
22
24
25
29
21
5
11
8
15
9
18
26
27
28
20
1
4
English SS024R
14
12
6
13
10
17
3
2
