Icom IC-725 Instruction Manual page 4

E
m |

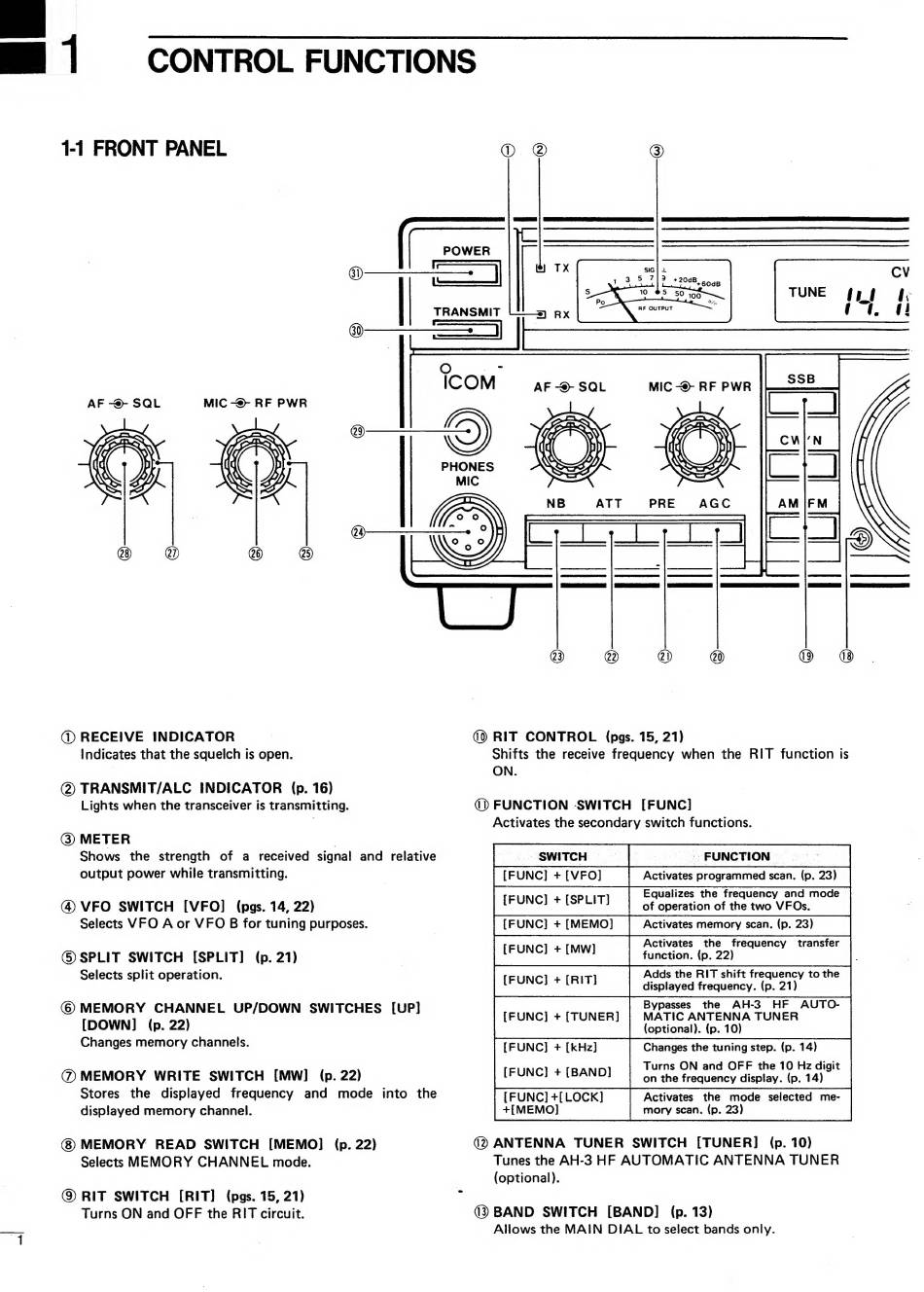

1-1 FRONT PANEL
AF -9- SQL MIC -9- RF PWR
one
@ @
@ RECEIVE INDICATOR
Indicates that the squelch is open.
(2) TRANSMIT/ALC INDICATOR (p. 16)
Lights when the transceiver is transmitting.
@ METER |
Shows the strength of a received signal and relative
output power while transmitting.
(4 VFO SWITCH [VFO] (pgs. 14, 22)
Selects VFO A or VFO B for tuning purposes.
(5) SPLIT SWITCH [SPLIT] (p. 21)
Selects split operation.
(6; MEMORY CHANNEL UP/DOWN SWITCHES [UP]
[DOWN] (p. 22)
Changes memory channels.
D MEMORY WRITE SWITCH [MW] (р. 22)
Stores the displayed frequency and mode into the
displayed memory channel.
MEMORY READ SWITCH [MEMO] (p. 22)
Selects MEMORY CHANNEL mode.
(9 RIT SWITCH [RIT] (pgs. 15, 21)
Turns ON and OFF the RIT circuit.
CONTROL FUNCTIONS
RIT CONTROL (pgs. 15, 21)
Shifts the receive frequency when the RIT function is
ON.
d» FUNCTION SWITCH [FUNC]
Activates the secondary switch functions.
Bypasses the AH-3 HF AUTO-
MATIC ANTENNA TUNER
(optional). (p. 10)
[FUNC] + [TUNER]
[FUNC] + [kHz] Changes the tuning step. (p. 14)
Turns ON and OFF the 10 Hz digit
[FUNC] + [BAND] on the frequency display. (p. 14)
@ ANTENNA TUNER SWITCH [TUNER] (p. 10)
Tunes the AH-3 HF AUTOMATIC ANTENNA TUNER
(optional).
{9 BAND SWITCH [BAND] (p. 13)
Allows the MAIN DIAL to select bands only.
