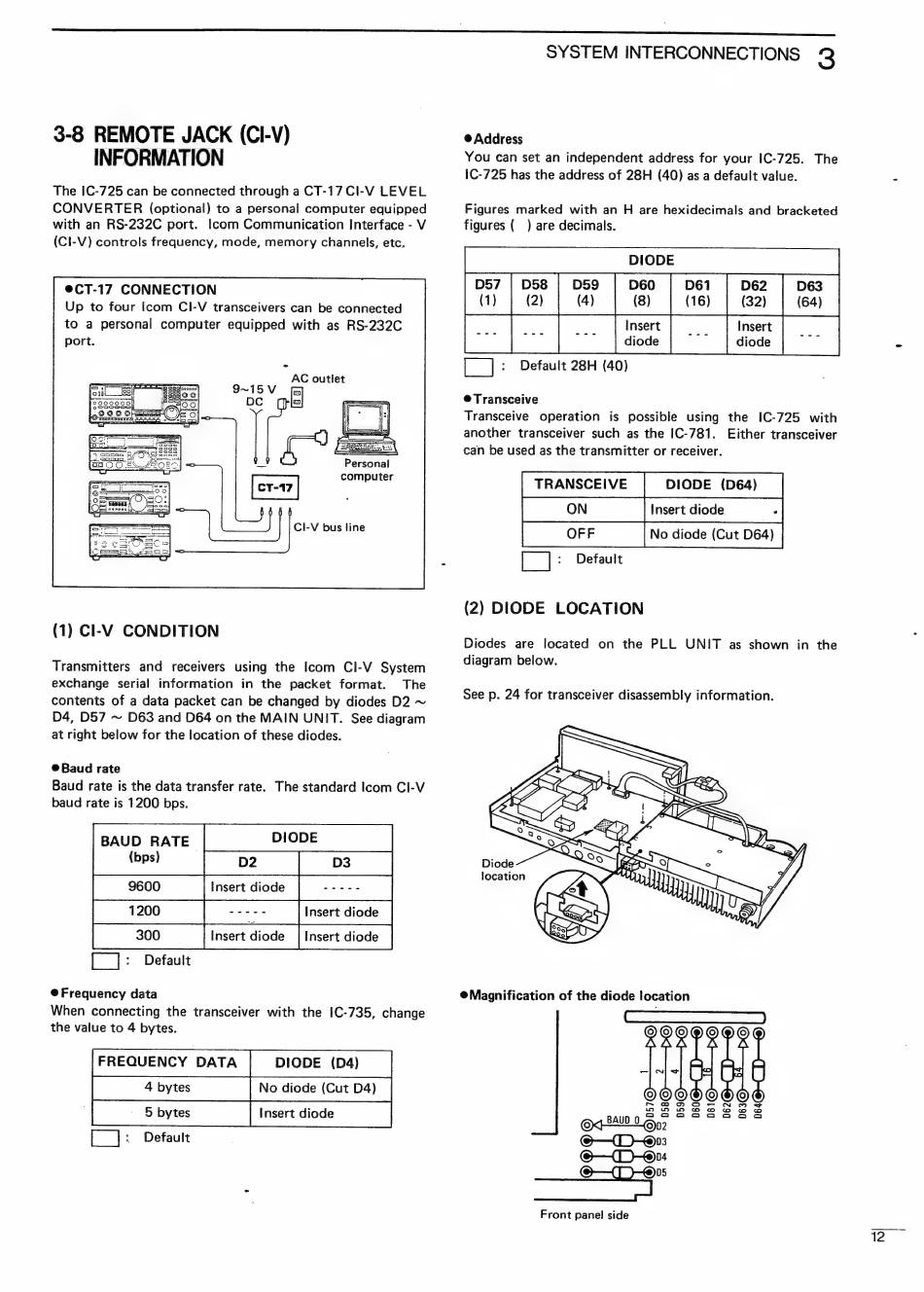

3-8 REMOTE JACK (CI-V)
INFORMATION
The 1C-725 can be connected through a CT-17 CI-V LEVEL
CONVERTER
(optional) to a personal computer equipped
with an RS-232C port.
Icom Communication Interface - V
(CI-V) controls frequency, mode, memory channels, etc.
eCT-17
CONNECTION
Up to four Icom CI-V transceivers can be connected
to a personal
computer equipped with as RS-232C
AC outlet
Personal
computer
(1) CI-V CONDITION
Transmitters
and
receivers
using the Icom
СІ-М System
exchange
serial
information
in the packet format.
The
contents of a data packet can be changed by diodes D2 —
D4, D57 — D63 and D64 on the MAIN UNIT.
See diagram
at right below for the location of these diodes.
ө Baud rate
Baud rate is the data transfer rate. The standard Icom CI-V
baud rate is 1200 bps.
BAUD RATE | ὈΙΘΕῈ —
"lu.
C] :
Default
• Frequency data
When connecting the transceiver with the IC-735, change
the value to 4 bytes.
FREQUENCY
DATA
DIODE
(D4)
=
: Default
SYSTEM INTERCONNECTIONS
3
• Address
You can set an independent address for your IC-725.
The
1C-725 has the address of 28H (40) as a default value.
Figures marked
with an H are hexidecimals and bracketed
figures ( ) are decimals.
D57
| D58
D59
D60
D61
D62
D63
(1)
(2)
(4)
(8)
(16)
(32)
(64)
Insert
Insert.
diode
diode
L]
:
Default 28H (40)
@Transceive
Transceive
operation
is possible
using
the
IC-725
with
another transceiver such as the IC-781.
Either transceiver
can be used as the transmitter or receiver.
он
noe P
[| : Default
(2) DIODE
LOCATION
Diodes
are
located
on
the PLL
UNIT
as shown
in the
diagram below.
See p. 24 for transceiver disassembly information.
®Magnification of the diode location
Front panel side
12
