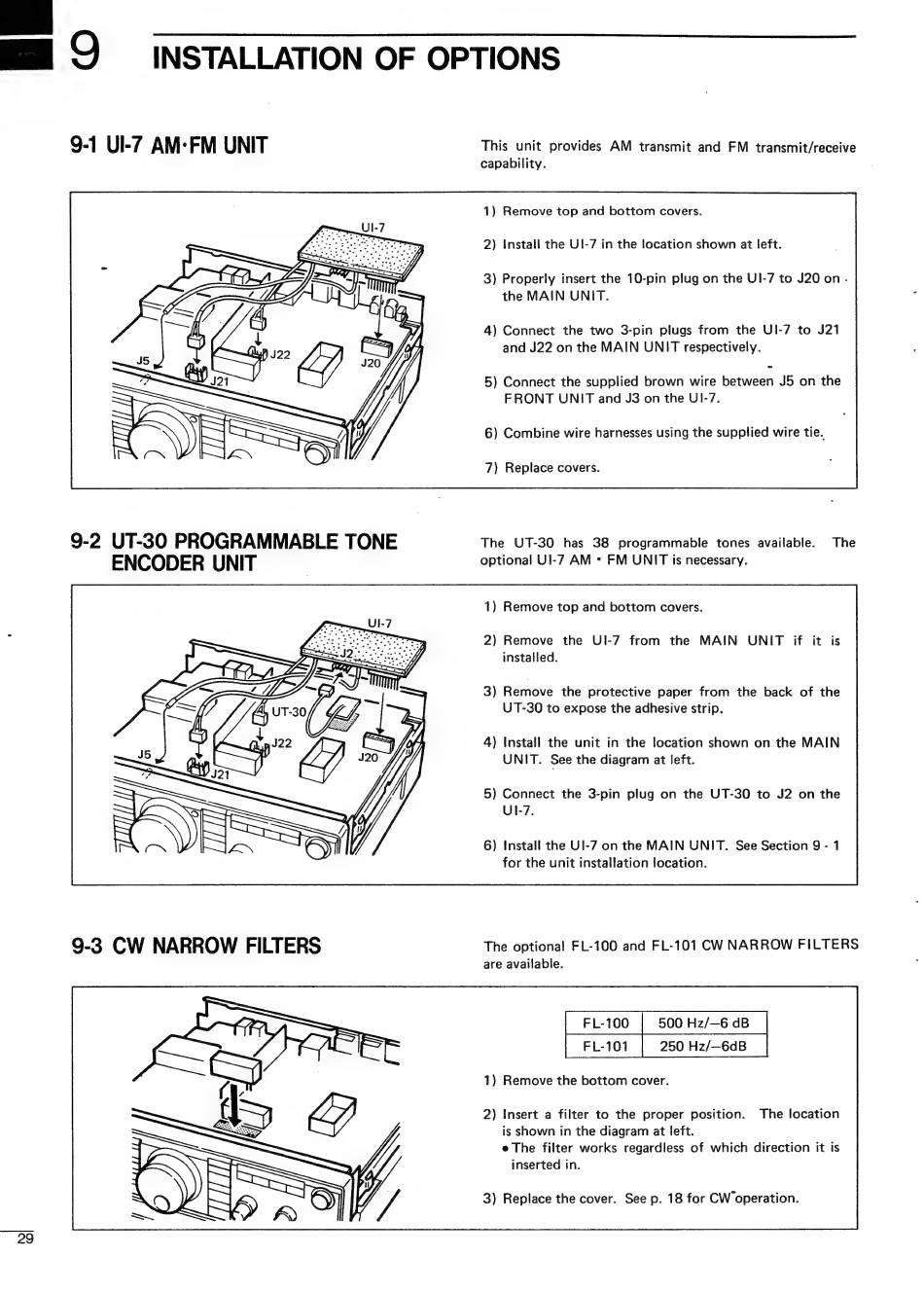

ШШ O — INSTALLATION OF OPTIONS
9-1 Ul-7 AM:FM UNIT This unit provides AM transmit and FM transmit/receive
capability.
1) Remove top and bottom covers.
2) Install the Ul-7 in the location shown at left.
3) Properly insert the 10-pin plug on the UI-7 to J20 on.
the MAIN UNIT.
4) Connect the two 3-pin plugs from the UI-7 to J21
and J22 on the MAIN UNIT respectively.
5) Connect the supplied brown wire between J5 on the
FRONT UNIT and J3 on the UI-7.
6) Combine wire harnesses using the supplied wire tie.
7) Replace covers.
2) Remove the Ul-7 from the MAIN UNIT if it is
installed.
3) Remove the protective paper from the back of the
UT-30 to expose the adhesive strip.
4) Install the unit in the location shown on the MAIN
UNIT. See the diagram at left.
5) Connect the 3-pin plug on the UT-30 to J2 on the
UI-7.
6) Install the ОІ-7 on the MAIN UNIT. See Section 9 - 1
for the unit installation location.
are available.
FL-100 500 Hz/—6 dB
FL-101 250 Hz/—6dB
1) Remove the bottom cover.
2) Insert a filter to the proper position. The location
is shown in the diagram at left.
e The filter works regardless of which direction it is
inserted in.
3) Replace the cover. See p. 18 for CW'operation.
29
