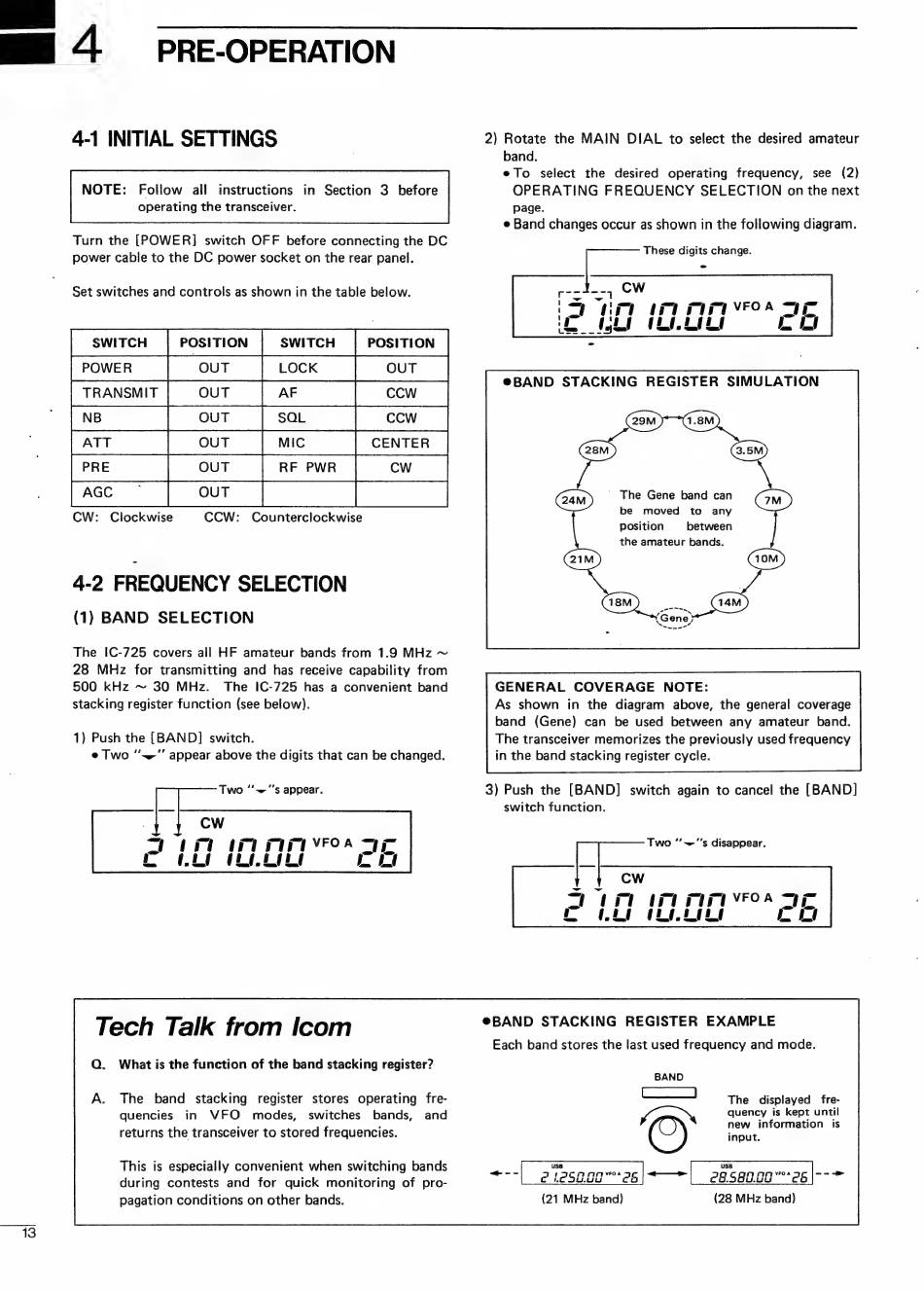

Icom IC-725 Instruction Manual page 15

13
—p
PRE-OPERATION
4-1 INITIAL SETTINGS
NOTE: Follow all instructions in Section 3 before
operating the transceiver.
Turn the [POWER] switch OFF before connecting the DC
power cable to the DC power socket on the rear panel.
Set switches and controls as shown in the table below.
SWITCH POSITION SWITCH POSITION
POWER LOCK OUT
TRANSMIT
CW: Clockwise CCW: Counterclockwise
4-2 FREQUENCY SELECTION
(1) BAND SELECTION
The IC-725 covers all HF amateur bands from 1.9 MHz ~
28 MHz for transmitting and has receive capability from
500 kHz ~ 30 MHz. The 1С-725 has a convenient band
stacking register function (see below).
1) Push the [BAND] switch.
e Two "~" appear above the digits that can be changed.
Two "~ "5 appear.
| | | C
Tech Talk from Icom
Q. Whatis the function of the band stacking register?
A. The band stacking register stores operating fre-
quencies in VFO modes, switches bands, and
returns the transceiver to stored frequencies.
This is especially convenient when switching bands
during contests and for quick monitoring of pro-
pagation conditions on other bands.
2) Rotate the MAIN DIAL to select the desired amateur
band.
e To select the desired operating frequency, see (2)
OPERATING FREQUENCY SELECTION on the next
page.
e Band changes occur as shown in the following diagram.
[— These digits change.
C
` The Gene band can
be moved to any
position between
the amateur bands.
GENERAL COVERAGE NOTE:
As shown in the diagram above, the general coverage
band (Gene) can be used between any amateur band.
The transceiver memorizes the previously used frequency
in the band stacking register cycle.
3) Push the [BAND] switch again to cancel the [BAND]
switch function.
Two " —''s disappear.
eBAND STACKING REGISTER EXAMPLE
Each band stores the last used frequency and mode.
BAND
The displayed fre-
CJ
quency is kept until
aw. new information is
input.
USB
στι eies5000"""2g5j,* ""
(21 MHz band)
USB
ος σου συ "25 |-- т
(28 MHz band)
