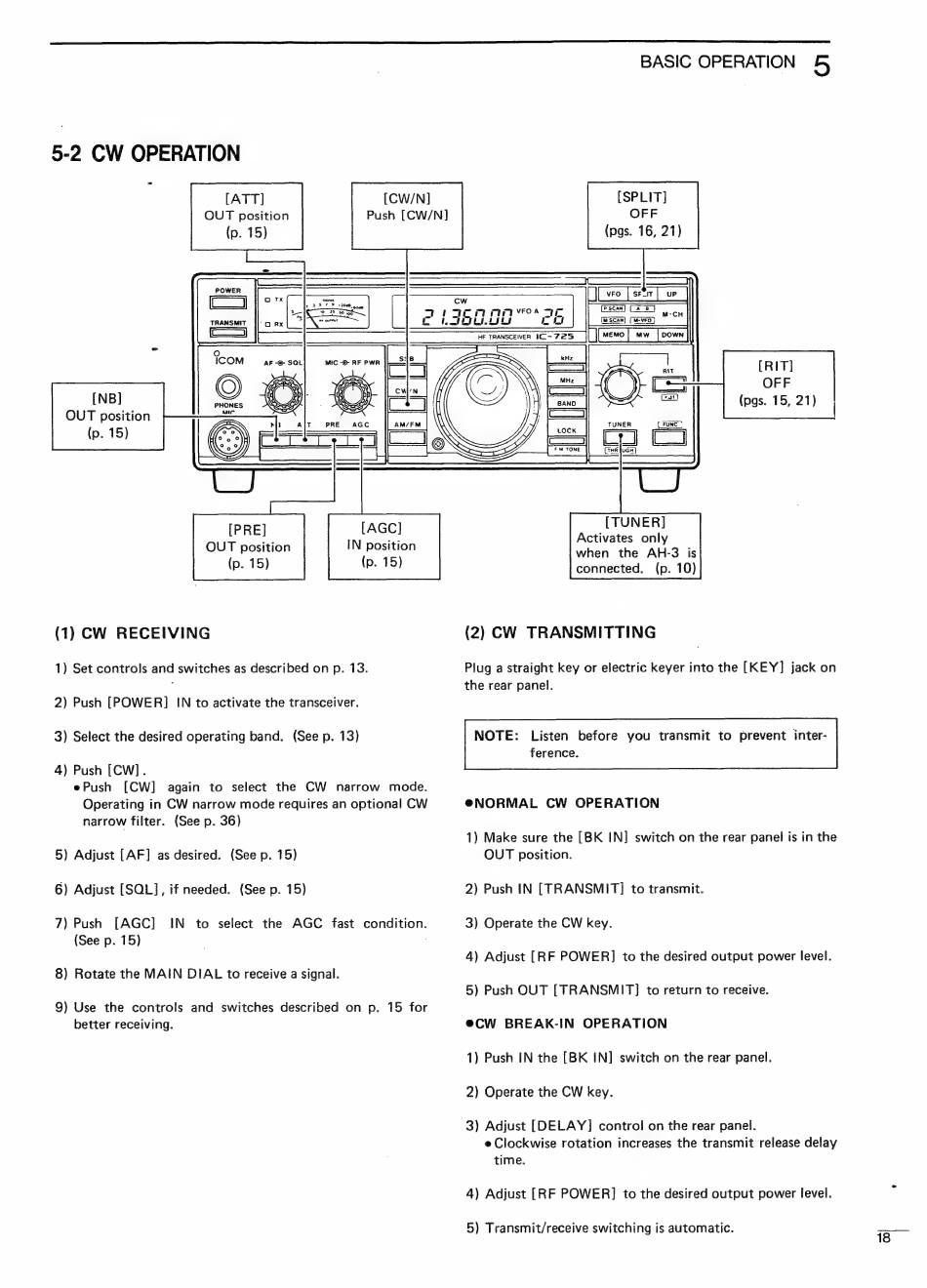

5-2 CW OPERATION
-
[АТТ]
OUT position
(p. 15)
TRANSMIT
[NB]
OUT position
(p. 15)
IN position
(p. 15)
OUT position
(p. 15)
(1) CW RECEIVING
1) Set controls and switches as described on p. 13.
2) Push [POWER] IN to activate the transceiver.
3) Select the desired operating band. (See p. 13)
4) Push [CW].
ePush [CW] again to select the CW narrow mode.
Operating in CW narrow mode requires an optional CW
narrow filter. (See p. 36)
5) Adjust [AF] as desired. (See p. 15)
6) Adjust [SOL], if needed. (See p. 15)
7) Push [AGC] IN to select the AGC fast condition.
(See p. 15)
8) Rotate the MAIN DIAL to receive a signal.
9) Use the controls and switches described on p. 15 for
better receiving.
[CW/N]
Push [CW/N]
LIELICLLI ы
BASIC OPERATION 5
[SPLIT]
OFF
(pgs. 16, 21)
(scan) [4-8 ]
ΓΙ ΓΊΓΙντοα 11 "T
UE LI c Гасан] (M-VFO)
[RIT]
OFF
(pgs. 15, 21)
[TUNER]
Activates only
when the AH-3 is
connected. (p. 10)
(2) CW TRANSMITTING
Plug a straight key or electric keyer into the [KEY] jack on
the rear panel.
NOTE: Listen before you transmit to prevent inter-
ference.
eNORMAL CW OPERATION
1) Make sure the [BK IN] switch on the rear panel is in the
OUT position.
2) Push IN [TRANSMIT] to transmit.
3) Operate the CW key.
4) Adjust [RF POWER] to the desired output power level.
5) Push OUT [TRANSMIT] to return to receive.
eCW BREAK-IN OPERATION
1) Push IN the [BK IN] switch on the rear panel.
2) Operate the CW key.
3) Adjust [DELAY] control on the rear panel.
e Clockwise rotation increases the transmit release delay
time.
4) Adjust [RF POWER] to the desired output power level.
5) Transmit/receive switching is automatic.
18
