3 SYSTEM INTERCONNECTIONS

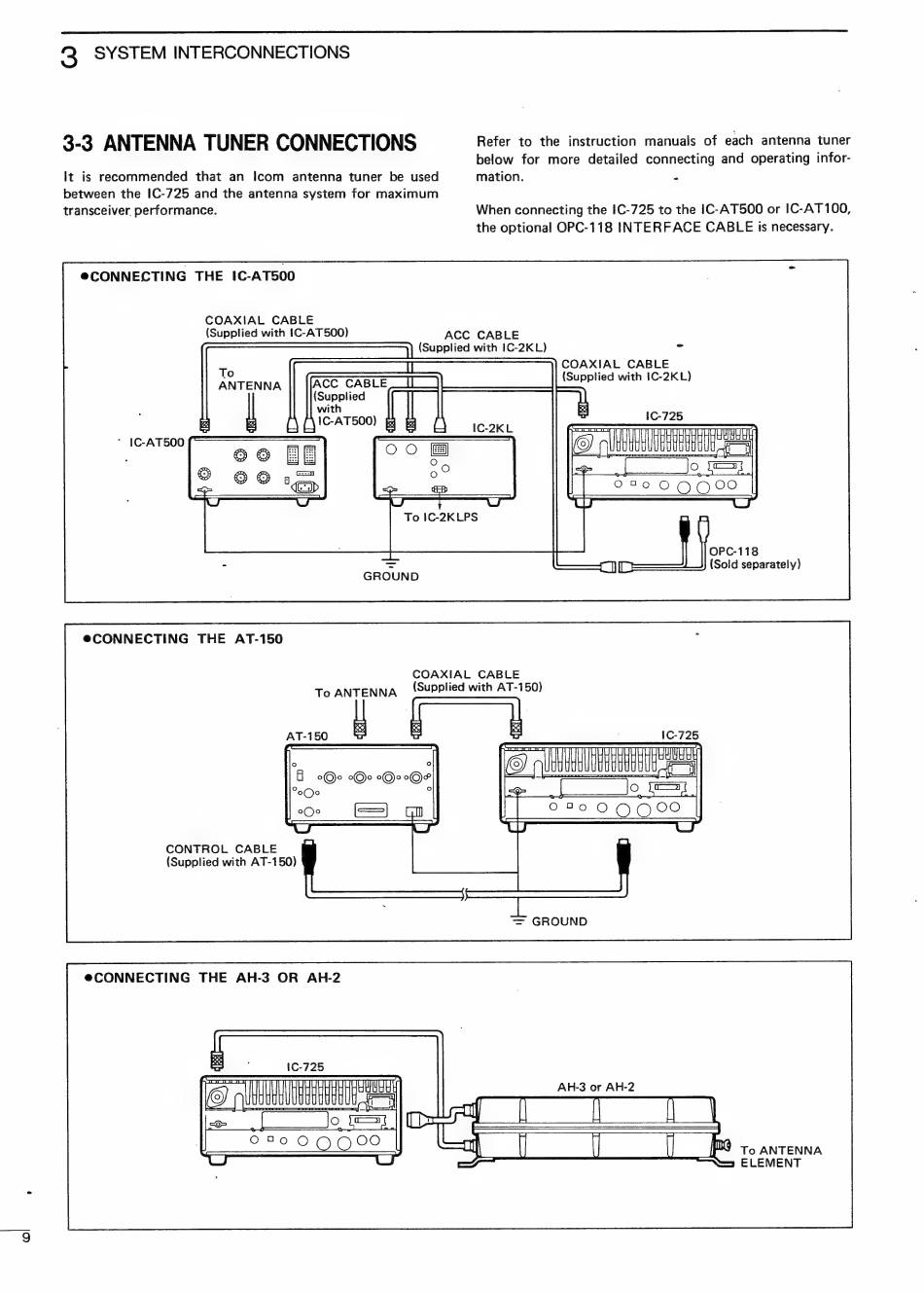

3-3 ANTENNA TUNER CONNECTIONS
It is recommended that an Icom antenna tuner be used
between the IC-725 and the antenna system for maximum
transceiver performance.
eCONNECTING THE IC-AT500
COAXIAL CABLE
(Supplied with IC-AT500)
Refer to the instruction manuals of each antenna tuner
below for more detailed connecting and operating infor-
mation. -
When connecting the 1С-725 to the IC-AT500 or IC-AT100,
the optional OPC-118 INTERFACE CABLE is necessary.
ACC CABLE
(Supplied with IC-2KL) τ
Το
ΑΝΤΕΝΝΑ ACC CABLE
(Supplied
with
` 1C-AT500
COAXIAL CABLE
(Supplied with 1C-2KL)
To IC-2KLPS
GROUND
eCONNECTING THE АТ-150
OPC-118
(Sold separately)
COAXIAL CABLE
To ANTENNA
AT-150
CONTROL CABLE
(Supplied with AT-150)
@CONNECTING THE AH-3 OR AH-2
(Supplied with AT-150)
1C-725
AH-3 or AH-2
ELEMENT
