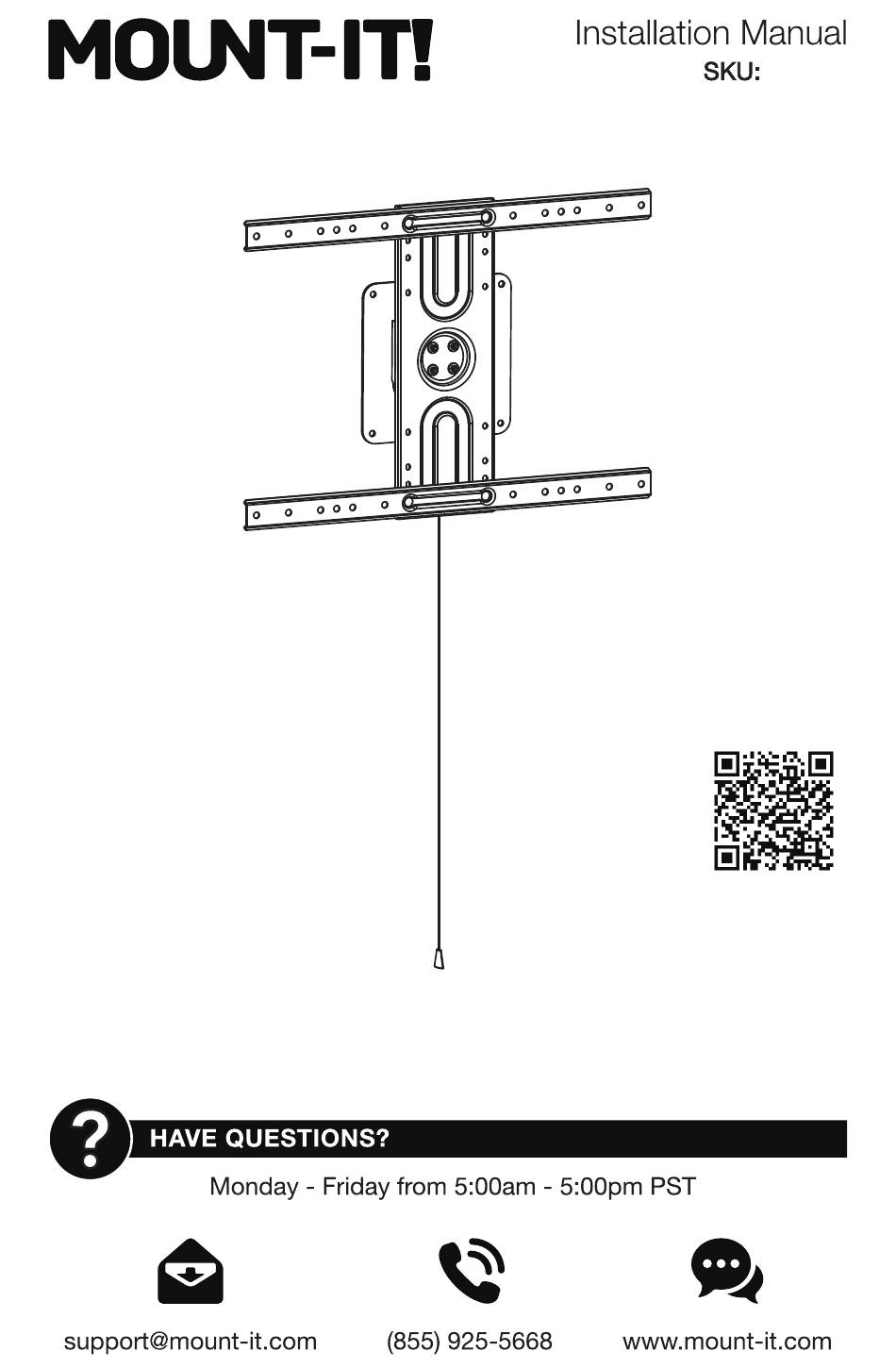

- Page 1 MI-387 Scan this QR code for product information, videos, and assembly assistance. ROTATING TV WALL MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Wall Mount VESA Arms VESA HARDWARE Mount-It! WALL MOUNTING HARDWARE Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used. Use the correct mounting hardware suitable for your installation. CHOKING HAZARD.
- Page 3 Step 1 Step 2b Separate the Wall Mount Concrete/Brick Mounting Option • Pull the release cord down, then pull the TV plate up and out of the wall bracket to separate the mount • Using a bubble level to ensure straightness hold the Wall Plate from part (#A) to the desired location into two parts.
- Page 4 Step 4 Step 5 Attaching the VESA Arms to the TV Hang the TV on the Wall • Select the appropriate size mounting bolt (#M-A through M-D) for your display’s mounting holes and • Hang the TV onto the mounted wall bracket and ensure that it is fully seated into the pocket of the wall verify the length of the VESA bolt is not too long.
