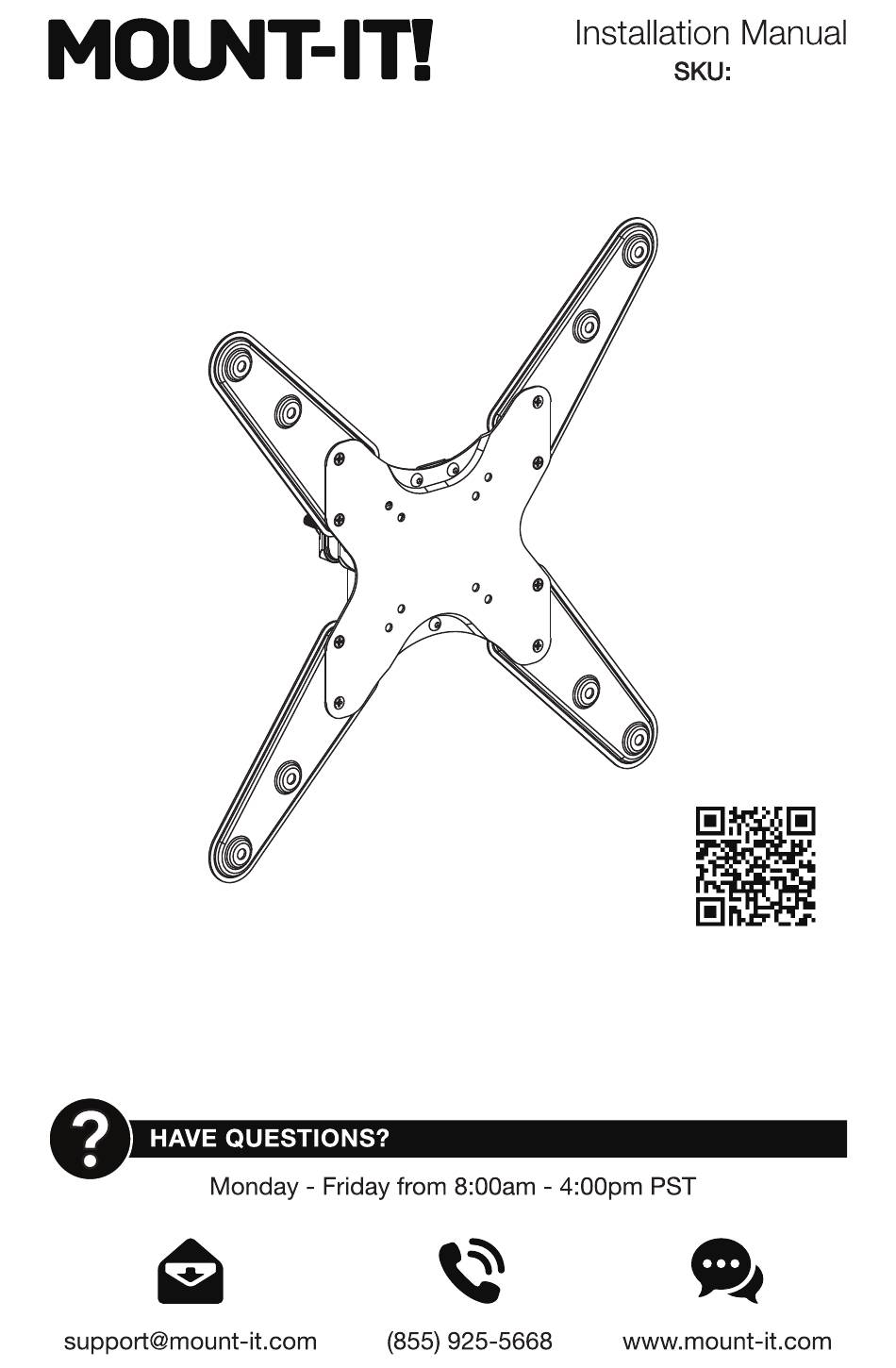

- Page 1 MI-390XL Please scan this QR code to visit the product page. FULL MOTION TV POLE MOUNT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Pole Clamp M8x55 Clamp Nut Bolts Clamp Bolt Mount-It! Mount VESA Arms VESA Arms Hex Wrench Hex Wrench Wrench TV Mounting Hardware Spacers Spacers Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 3 Remove the VESA Plate • For VESA Patterns 75x75, 100x100, 200x100, and 200x200 use the VESA Plate only. Arms (#B) and (#C) will not be used, and you may proceed to the next step. • For displays with VESA patterns greater than 200x200, attach the VESA Arms (#B, #C) in the •...
-
Page 4: Step 7 Final Adjustments
Step 5 Step 7 Final Adjustments Connecting the VESA Plate to the Mount Arm • Place the VESA plate onto the end of the Mount Arm as shown, then secure it in place by reattaching • The screen can be tilted forward or backward in a range of +10° to -15°. It may be turned left or right up the 3 nuts removed earlier.
