IES6300SL Series
Layer 2 Managed Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1
Industrial Ethernet switch
2.
DIN-Rail mounting attachment
3.
Certification
4.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

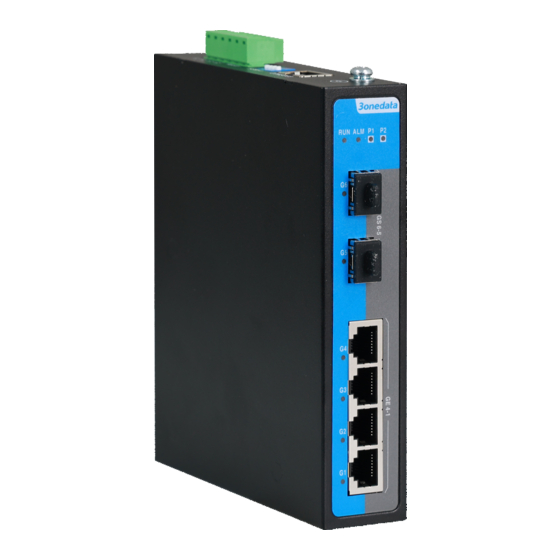

This series of product is Gigabit managed DIN-Rail industrial
Ethernet switch. For convenience, the products of this series
adopt the following number on the left in this guide, please
confirm the number of your product:
Model I. IES6300SL-4GT2GS-2LV (4 Gigabit copper ports +
2 Gigabit SFP slots, 12~60VDC redundant power
supply).
Model II. IES6300SL-8GT4GS-2LV (8 Gigabit copper ports +
+4 Gigabit SFP slots, 12~60VDC redundant power
supply).
Model III. IES6300SL-4GP2GS-2LV (4 Gigabit PoE copper
ports + 2 Gigabit SFP slots, 44~57VDC redundant
power supply).
Model IV. IES6300SL-8GP4GS-2LV (8 Gigabit PoE copper
ports +4 Gigabit SFP slots, 44~57VDC redundant
power supply).
Model V. IES6300SL-16GT4GS-2LV (16 Gigabit copper ports
+ 4 Gigabit SFP slots, 12~60VDC redundant power
supply).
Model VI. IES6300SL-16GP4GS-2LV (16 Gigabit PoE copper
ports + 4 Gigabit SFP slots, 44~57VDC redundant
power supply).

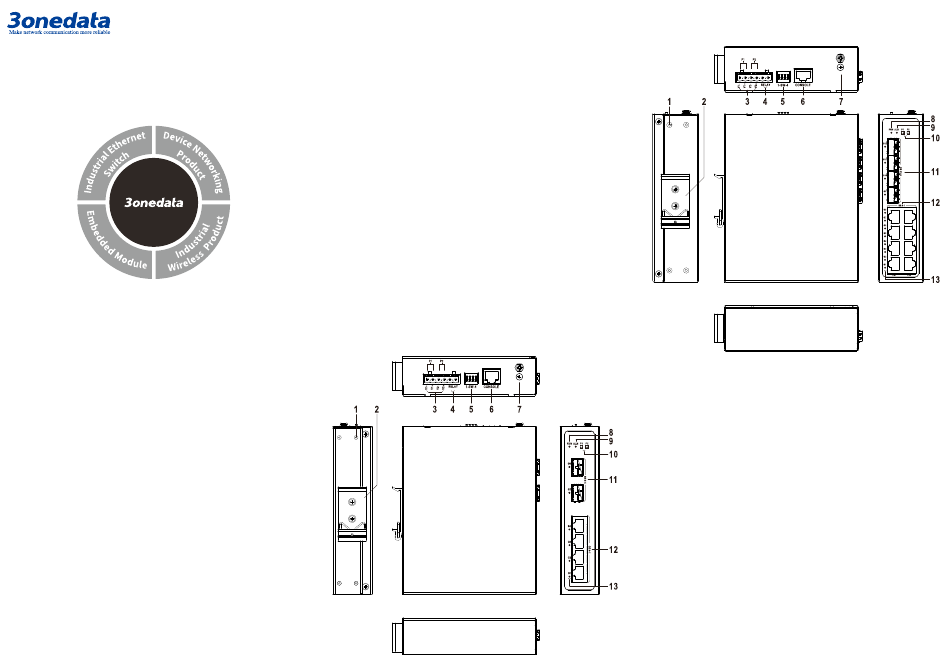

【Panel Design】
Top view, rear view, left view, front view, bottom view
Model I
Top view, rear view, left view, front view, bottom view
Model II
1.
Wall-mounting location hole
2.
DIN-Rail mounting kit
3.
Power input terminal (P1-P2)
4.
Terminal blocks for relay alarm output (RELAY)
5.
DIP switch
6.
CONSOLE port
7.
Grounding screw (M4)
8.
Running indicator (RUN)
9.
Alarm indicator (ALM)
10.
Power supply indicator (P1-P2)
11.
1000Base-X Gigabit SFP slot (GS6-GS5 or
GS12-GS9)
12.
10/100/1000Base-T(X)
Gigabit
(GE4-GE1 or GE8-GE1)
13.
Ethernet port indicator (G1-G6 or G1-G12)
copper
ports
