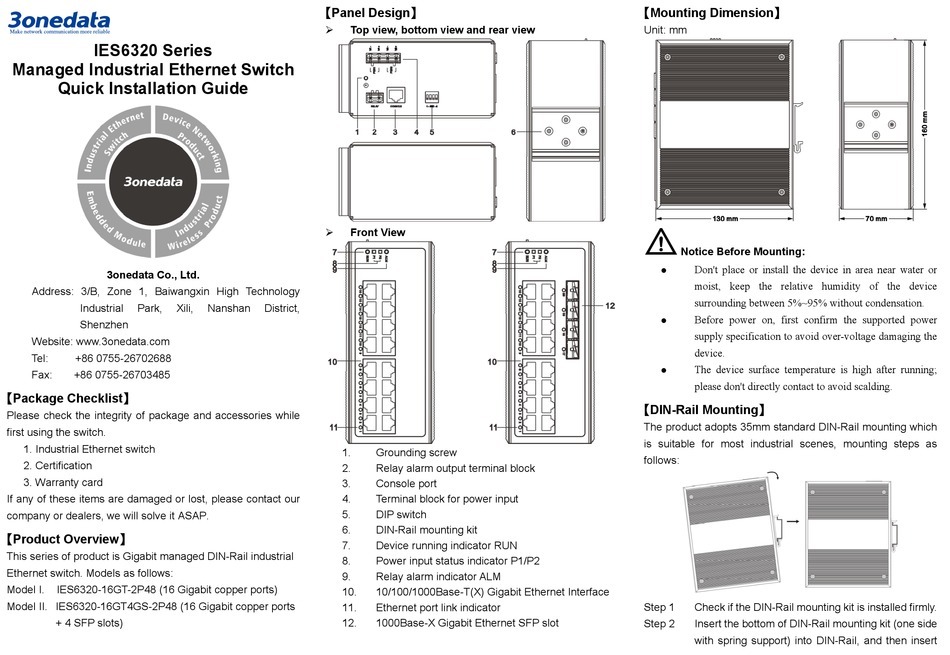

IES6320 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Certification
3. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

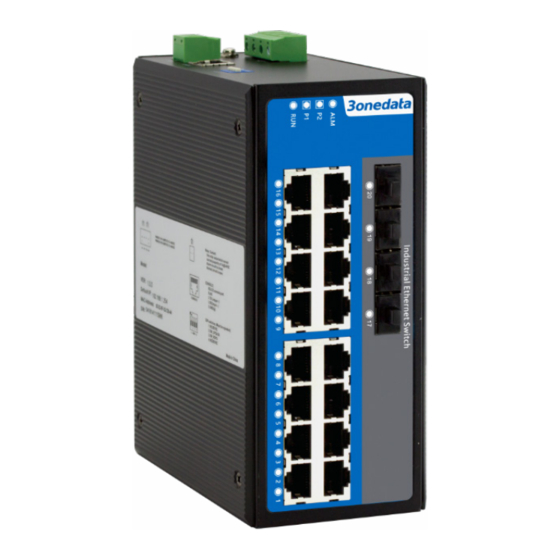

This series of product is Gigabit managed DIN-Rail industrial
Ethernet switch. Models as follows:
Model I.
IES6320-16GT-2P48 (16 Gigabit copper ports)
Model II. IES6320-16GT4GS-2P48 (16 Gigabit copper ports
+ 4 SFP slots)
【Panel Design】
Top view, bottom view and rear view
Front View
Nanshan
District,
1.
Grounding screw
2.
Relay alarm output terminal block
3.
Console port
4.
Terminal block for power input
5.
DIP switch
6.
DIN-Rail mounting kit
7.
Device running indicator RUN
8.
Power input status indicator P1/P2
9.
Relay alarm indicator ALM
10.
10/100/1000Base-T(X) Gigabit Ethernet Interface
11.
Ethernet port link indicator
12.
1000Base-X Gigabit Ethernet SFP slot
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
Step 1
Check if the DIN-Rail mounting kit is installed firmly.
Step 2
Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert

Advertisement

loading
Need help?

Need help?

Do you have a question about the IES6320 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3onedata IES6320 Series

  • Page 1 【Panel Design】 【Mounting Dimension】 Top view, bottom view and rear view Unit: mm  IES6320 Series Managed Industrial Ethernet Switch Quick Installation Guide Front View  Notice Before Mounting: Don't place or install the device in area near water or ...
  • Page 2 the top into DIN-Rail. abnormality alarm. It can be connected to alarm light or alarm Power supply or port link has alarm Tips: buzzer or other switching value collecting devices, which can Power supply and port link have no Insert a little to the bottom, lift upward and then insert timely inform operators when the alarm occurs.
  • Page 3 Input power supply 12~48VDC, support dual power Step 4 Click “Login” button to login to the WEB interface of supply redundancy the device. non-polarity Access terminal blocks 4 pins 7.62mm pitch terminal Note: blocks The default IP address of the device is “192.168.1.254”. ...
