IES6306 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 075526702688
Fax: +86 075526703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch
3.
Quick installation guide
5.
DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

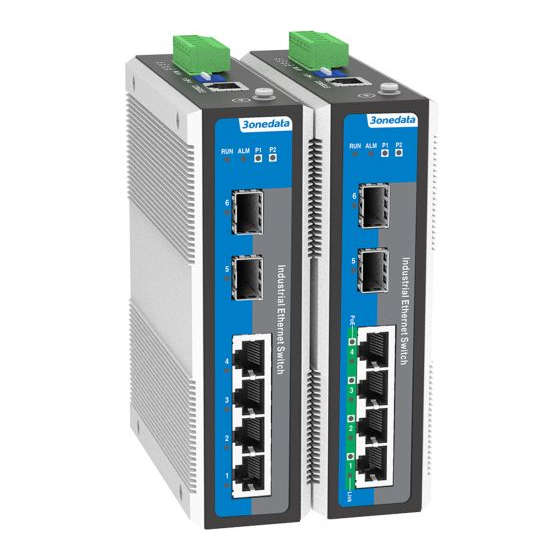

This series product is Gigabit managed DIN-Rail industrial
The model is:
Ethernet switch.
Model I.
IES6306-4GT2HS-2P48 (4 Gigabit Copper Ports
+ 2 2.5G SFP + 2 12~48 Power Supplies)
Model II.
IES6306-4GP2HS-2P48-120W (4 Gigabit PoE
Copper Ports + 2 2.5G SFP + 2 48VDC PoE
Power Supplies)
【Panel Design】
Top view, bottom view and rear view
Front View
2.
Certification
4.
Warranty card
6
CD
1.
Power input terminal (P1, P2)
2.
Relay alarm output terminal block
3.
DIP switch
4.
Console port
5.
Grounding screw
6.
Location hole for wall mounting
7.
DIN-Rail mounting kit
8.
Power input status indicator P1-P2
Model I
Model II
9.
Relay alarm indicator ALM
10.
Device running indicator RUN
11.
2.5G SFP slot (5-6)
12.
Copper port (1-4)
13.
Ethernet interface status indicator (1-6)
14.
Gigabit PoE port (1-4)
15.
PoE status indicator (1-4)
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as
follows:
